Product Description

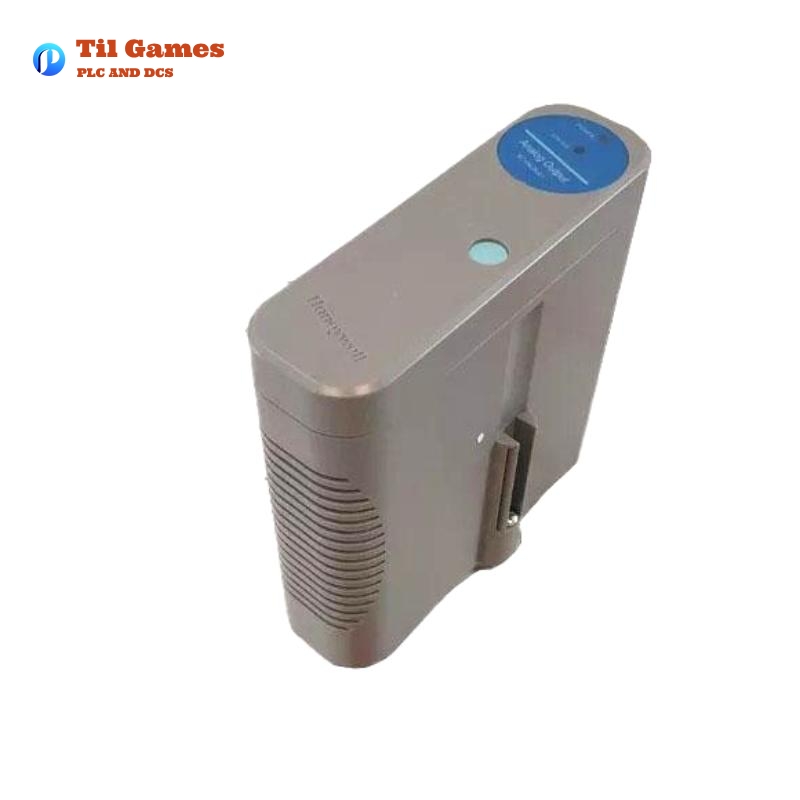

The Honeywell 8C-PAONA1 51454469-175 is a 16-channel Analog Output (AO) module from the Series 8 I/O family, designed to deliver precise 4-20 mA current outputs to field devices such as actuators, indicators, and control elements. It is part of Honeywell’s modular Experion control platform, engineered for reliable analog signal generation in harsh industrial environments.
This module is conformally coated for protection against moisture, chemicals, and temperature extremes, aligning with the ISA S71.04 G3 corrosion protection standard. It supports redundancy and allows hot-swapping under power, enhancing system availability and maintainability.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 8C-PAONA1 |
| Description | Analog Output Module, Coated, 16 channels |
| Output Type | 4–20 mA |
| Output Channels | 16 |
| Voltage Rating | 24 VDC |
| Module Current Rating | 190 mA |
| Load Resistance | 50–800 Ω |
| Output Ripple | < 100 mV peak-to-peak @ 250 Ω load |
| Output Temperature Drift | 0.005% of Full Scale/°C |
| Output Linearity | ± 0.05% of Full Scale |
| Accuracy (Calibrated @ 25°C) | ± 0.2% of Full Scale (includes linearity) |
| Settable Output Range | 2.9 mA to 21.1 mA |
| Max Output Compliance Voltage | 16 V |
| Max Open Circuit Voltage | 22 V |
| Response Time | ≤ 80 ms |
| Switchover Gap | ≤ 10 ms (redundant configurations) |
| Module Insertion/Removal Under Power | Supported |
| Dimensions (H x W x D) | 51 x 267 x 178 mm |
| Weight | 0.5 kg |
Product Features
-
16-channel high-resolution analog current outputs (4–20 mA)
-
Supports safe-state behavior per channel (FAILOPT: Hold Last or Safe Value)
-
Open-wire detection and soft failure indication
-
Hot-swap capability under power
-
Redundancy supported through dual IOM and IOTA configurations
-
G3 conformal coating for harsh environment protection
-
Seamless switchover in redundant setups
Product Advantages
-
High System Availability: Hot-swapping and redundancy features reduce downtime.
-
Diagnostic Capabilities: Built-in self-diagnostics enhance maintenance and fault detection.
-
Precision Output: Accurate, linear, and stable analog output even under temperature variation.
-
Compact Design: Smaller footprint compared to legacy systems, enabling cabinet space savings.
-
Integration Friendly: Easily integrates with Honeywell’s C300 controllers and Experion PKS DCS.
-
Reduced Engineering Time: Predefined configurations and seamless Control Builder integration.
Product Applications
-
Process control in oil and gas, petrochemical, and chemical plants
-
Batch and continuous manufacturing in pharmaceuticals and food processing
-
Utility control in power generation and water treatment facilities
-
Output control for actuators, control valves, and positioning devices
-
Integration in SIL-rated safety control systems (when used with certified architecture)
Latest News Headlines (as of May 2024)
-
Honeywell Expands Experion Series 8 I/O Offerings with Enhanced AO Capabilities
-
Honeywell Enhances Redundancy Features in Analog Modules for High-Availability Systems
-
Honeywell Launches Sustainability-Focused Control Enhancements in Series 8
-
Experion R530 Improves Diagnostics and Field Analytics for Analog Output Modules
-
Honeywell Pushes for Modular, Scalable Control in Edge-to-Cloud Transitions
-
Digital Twin Integration Announced for Honeywell Analog Modules
Recommended Related Models (Same Series or Function)
| Model | Description | Output Type | Channels | Size (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 8C-PAOHA1 | Analog Output with HART, Coated | 4–20 mA + HART | 16 | 51 x 267 x 178 | 0.5 |
| 8C-PAIH54 | High-Level Analog Input with HART, Differential | Voltage/Current | 16 | 51 x 267 x 178 | 0.5 |
| 8C-PAIHA1 | Analog Input with HART, Single-Ended | Current | 16 | 51 x 267 x 178 | 0.5 |
| 8C-PAINA1 | Analog Input, Single-Ended | Current | 16 | 51 x 267 x 178 | 0.5 |
| 8C-PAIMA1 | RTD/TC Low-Level Analog Input | Temperature | 16 | 51 x 267 x 178 | 0.5 |
| 8C-SDOX01 | Digital Output Relay Extension | Relay (Form C) | 32 | 51 x 381 x 178 | 1.0 |
Recommended Popular Honeywell Models
| Model | Description | Type | Channels | Size (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 8C-PDILA1 | Digital Input 24VDC | Digital Input | 32 | 51 x 267 x 178 | 0.5 |
| 8C-PDISA1 | Digital Input SOE | Digital Input | 32 | 51 x 267 x 178 | 0.5 |
| 8C-PDIPA1 | Digital Input Pulse Accumulation | Digital Input | 32 | 51 x 267 x 178 | 0.5 |
| 8C-PDODA1 | Digital Output 24VDC | Digital Output | 32 | 51 x 267 x 178 | 0.5 |
| 8C-PAOHA1 | Analog Output with HART | Analog Output | 16 | 51 x 267 x 178 | 0.5 |
| 8C-PAIMA1 | Low-Level Analog Input – RTD/TC | Temperature Input | 16 | 51 x 267 x 178 | 0.5 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 8C-PAONA1 module?
A1: It provides 16-channel analog current outputs (4–20 mA) for control signals to actuators and devices.
Q2: Does this module support HART communication?
A2: No, the 8C-PAONA1 model does not support HART. For HART capability, refer to model 8C-PAOHA1.
Q3: Can the module be installed or removed while the system is powered?
A3: Yes, the 8C-PAONA1 supports hot-swapping under power without system interruption.
Q4: What redundancy options are available?
A4: Redundancy can be achieved by using the 8C-TAOXB1 IOTA in conjunction with a second 8C-PAONA1 module.
Q5: What is the configured fail-safe behavior?
A5: Each channel can be configured to either hold the last value or shed to a safe value upon failure.
Q6: What type of output detection is available?
A6: The module includes open-wire detection with soft failure indications.
Q7: What kind of accuracy can be expected under normal conditions?
A7: ±0.2% of full scale at 25°C, ensuring high output precision.
Q8: What certifications does the module comply with?
A8: It complies with CSA, ATEX, IECEx, and CE standards for use in Class I Div 2 / Zone 2 environments.
