Product Overview

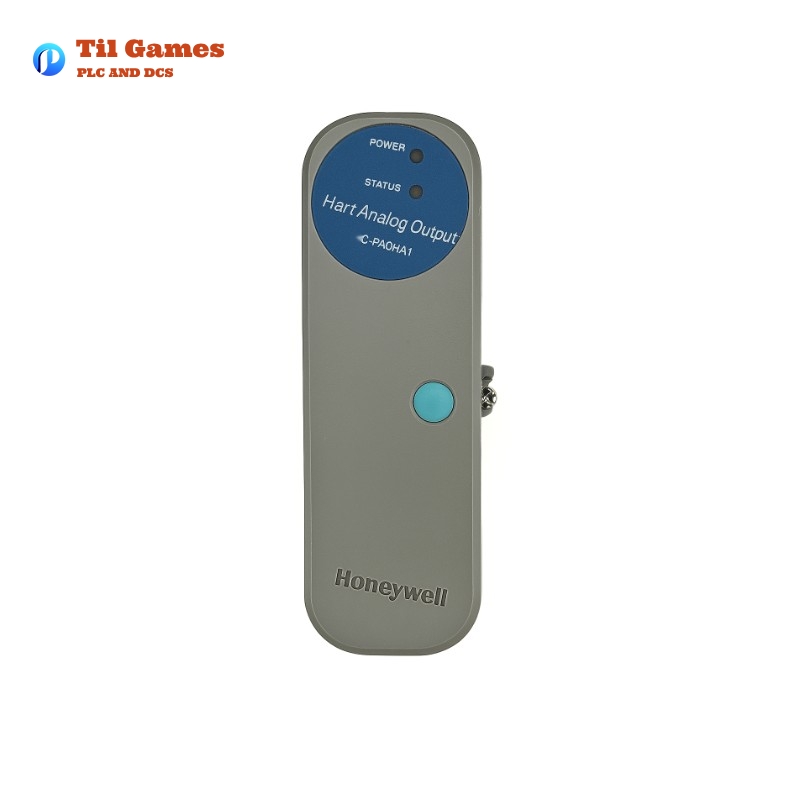

The Honeywell 8C-PAOHA1 is a high-performance analog output module with HART communication capabilities, designed as part of Honeywell’s Series 8 I/O for Experion Process Knowledge Systems (PKS). This module delivers 4–20 mA outputs with HART support for field device communication and diagnostics. It features integrated self-diagnostics, configurable fail-safe behaviors, and support for redundant configurations, offering robust performance in demanding industrial control environments.
This module is conformal coated (G3-rated), making it suitable for harsh industrial conditions such as high humidity, chemical vapors, and wide temperature ranges.
Technical Specifications
| Parameter | Details |
|---|---|
| Module Name | Analog Output with HART – Single Ended |
| Model Number | 8C-PAOHA1 |
| IOTA Compatibility | 8C-TAOXA1 (Non-Redundant, 6”) / 8C-TAOXB1 (Redundant, 12”) |
| Channels | 16 independent analog output channels |
| Output Type | 4–20 mA current loop |
| Output Ripple | < 100 mV peak-to-peak across 250 Ω load |
| Output Temperature Drift | 0.005% of Full Scale/°C |
| Output Linearity | ± 0.05% of Full Scale |
| Load Resistance | 50–800 Ω (at 24 V supply) |
| Voltage Rating | 24 VDC |
| Module Current Consumption | 205 mA |
| Accuracy | ± 0.2% of Full Scale @ 25°C (includes linearity) |
| Response Time | 80 ms to settle within 1% of final value |
| Maximum Compliance Voltage | 16 VDC |
| Open Circuit Voltage | 22 VDC |
| Safe-State Behavior (FAILOPT) | Configurable per channel: HOLD or SHED to SAFE VALUE |
| HART Support | Yes, for multivariable instruments |
| Module Removal Under Power | Supported |
| Dimensions | 157 x 106 x 35 mm |
| Weight | 0.47 kg |
Key Features
-
16-channel analog output with 4–20 mA range
-
HART communication for advanced diagnostics and multivariable output
-
Configurable safe-state behavior for each channel (FAILOPT)
-
Excellent accuracy and low output ripple
-
Galvanically isolated design for enhanced safety
-
Redundant IOTA support without additional hardware
-
Module can be inserted or removed under power (hot-swappable)
-
Coated electronics (G3 corrosion protection)
Product Advantages
-
Enhanced Diagnostics: Integrated HART functionality enables advanced diagnostics and device communication.
-
High Availability: Supports redundancy directly at the IOTA level with simple installation of a second module.
-
Ease of Maintenance: Hot-swappable capability allows easy replacement without system shutdown.
-
Space Efficiency: Compact design minimizes cabinet space requirements.
-
Reliability: Meets industrial-grade EMI, environmental, and shock standards.
Typical Applications
-
Distributed Control Systems (DCS) in chemical, oil & gas, and power industries
-
Analog actuator control in process automation
-
Intelligent valve and device control via HART communication
-
SCADA and process control loops requiring analog output with diagnostics
-
Industrial automation with high channel density needs
Recent Product Announcement
Title:
Honeywell Expands Series 8 Lineup with Enhanced HART Analog Output Modules for Improved Asset Integration – March 2022 Release
Recommended Related Models (Same or Complementary Series)
| Model Number | Description | Type | Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 8C-PAOHA1 | Analog Output with HART – Single Ended | Analog Output (HART) | 16 | 157 x 106 x 35 | 0.47 |
| 8C-PAONA1 | Analog Output without HART | Analog Output | 16 | 157 x 106 x 35 | 0.47 |
| 8C-PAIHA1 | Analog Input with HART – Single Ended | Analog Input (HART) | 16 | 157 x 106 x 35 | 0.47 |
| 8C-PAINA1 | Analog Input without HART | Analog Input | 16 | 157 x 106 x 35 | 0.47 |
| 8C-PAIMA1 | Low Level Analog Input – RTD & TC | Analog Input (RTD/TC) | 16 | 157 x 106 x 35 | 0.47 |
| 8C-PAIH54 | Analog Input with HART – Differential | Analog Input (HART) | 16 | 157 x 106 x 35 | 0.47 |
Popular Honeywell Series 8 Models
| Model Number | Description | Type | Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 8C-PDILA1 | Digital Input 24VDC | Digital Input | 32 | 157 x 106 x 35 | 0.47 |
| 8C-PDISA1 | Digital Input Sequence of Events (SOE) | Digital Input (SOE) | 32 | 157 x 106 x 35 | 0.47 |
| 8C-PDODA1 | Digital Output 24VDC | Digital Output | 32 | 157 x 106 x 35 | 0.47 |
| 8C-PDIPA1 | Digital Input Pulse Accumulation | Digital Input (Pulse) | 32 | 157 x 106 x 35 | 0.47 |
| 8C-PCNT03 | Series 8 C300 Controller | Controller | N/A | 220 x 120 x 35 | 0.65 |
| 8C-SDOX01 | DO Relay Extension Board | Relay Output Extension | 32 | 381 x 106 x 35 | 1.01 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the 8C-PAOHA1 module?
A1: It provides 16 channels of 4–20 mA analog output with HART communication for controlling actuators and communicating with smart field devices.
Q2: Does the module support redundancy?
A2: Yes, redundancy is supported by using it with the 8C-TAOXB1 IOTA and an additional 8C-PAOHA1 module.
Q3: What is the maximum load resistance supported?
A3: It supports load resistance between 50 and 800 Ω at a 24 VDC supply.
Q4: Can the module be replaced while the system is powered?
A4: Yes, hot-swapping is supported, allowing safe replacement under power.
Q5: What type of HART communication is supported?
A5: It supports standard HART communication, allowing configuration, diagnostics, and multivariable data acquisition.
Q6: What is the function of the FAILOPT feature?
A6: FAILOPT allows users to configure each output channel to either hold the last value or go to a user-defined safe state in case of module failure.
Q7: What is the output accuracy of the module?
A7: The module has a calibrated accuracy of ±0.2% of full scale at 25°C, including linearity.
Q8: Is galvanic isolation provided in this module?
A8: Yes, the module provides galvanic isolation between field signals and system electronics to prevent interference.
