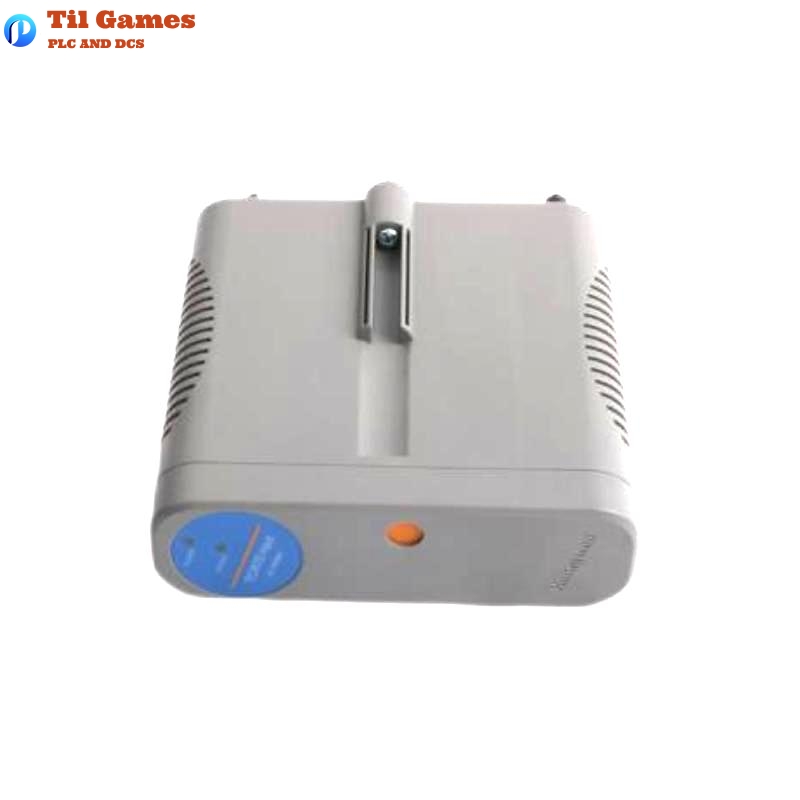

Honeywell 8C-PAIMA1 51454473-175 Series 8 Controller Analog Input Module
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 8C-PAIMA1 |
| Function | Analog Input Module for TC/RTD (Temperature Sensors) |
| Channels | 16 fully isolated input channels |
| Input Types | Thermocouple (TC), Resistance Temperature Detector (RTD) |
| Nominal Input Range (TC) | -20 mV to +100 mV |
| Voltage Rating | 24 VDC |
| Current Consumption | 120 mA |
| Input Scan Rate | 1 second (fixed) |
| Channel Bandwidth | 0 to 4.7 Hz (-3 dB) |
| Gain Error | Max 0.050% of full scale |
| Temperature Stability (TC/RTD) | ±20 ppm/°C max |
| Input Impedance (TC) | 1 MΩ at DC |
| Common Mode Voltage (CMV) | ±250 VDC or VAC RMS (channel-to-shield) |
| Common Mode Rejection Ratio | ≥120 dB @ 50 or 60 Hz |
| Noise Rejection (NMRR) | ≥60 dB @ 50/60 Hz |
| Cold Junction Compensation | -20 to +60 °C (±0.5 °C typical) |
| RTD Excitation Current | 1 mA |
| Open Thermocouple Detection | Guaranteed no trip ≤ 1000 Ω; guaranteed trip ≥ 1500 Ω |
| RTD Max Lead Resistance | 15 Ω |
| Supported RTD Types | Pt100 (DIN/JIS), Ni120, Cu10, Cu50 |
| Supported TC Types | J, K, E, T, B, S, R |
| Millivolt Inputs | -20 mV to +100 mV |
| Surge Protection | EN 61000-4-5 (1kV line-line, 2kV line-ground) |
| Hot Swappable | Supported |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Agency Approvals | Class I, Div 2, Groups A–D; T4 / Zone 2 AEx/Ex nA II C T4 |
| Dimensions (W x H x D) | 220 mm x 120 mm x 60 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of sensors can the 8C-PAIMA1 module read?
A1: The module supports both thermocouple (TC) and resistance temperature detectors (RTD), including types J, K, T, B, S, R, Pt100, Ni120, and Cu10.
Q2: Is the module capable of detecting open sensor conditions?
A2: Yes. The module includes configurable Open Thermocouple Detection (OTD) to prevent control actions from invalid temperature readings.
Q3: Can the 8C-PAIMA1 module operate while powered on during insertion or removal?
A3: Yes. This module supports hot swapping, allowing insertion and removal under power.
Q4: What is the accuracy of temperature measurements for RTD inputs?
A4: RTD inputs have a temperature stability of ±20 ppm/°C and a long-term drift of 500 ppm.
Q5: How many input channels are provided and are they isolated?
A5: The module offers 16 fully isolated channels with isolation between channels, the IOL, and the power supply.
Q6: What is the input scan rate of the 8C-PAIMA1 module?
A6: The fixed scan rate is 1 second for all 16 channels.
Q7: Is the module compliant with hazardous location standards?
A7: Yes. It complies with Class I, Division 2, Groups A, B, C, D and Zone 2, Ex nA II C T4 standards.
Q8: What are the physical dimensions and weight of the module?
A8: The module measures 220 x 120 x 60 mm and weighs 0.3 kg.
