Technical Specifications
| Parameter | Specification |
|---|---|

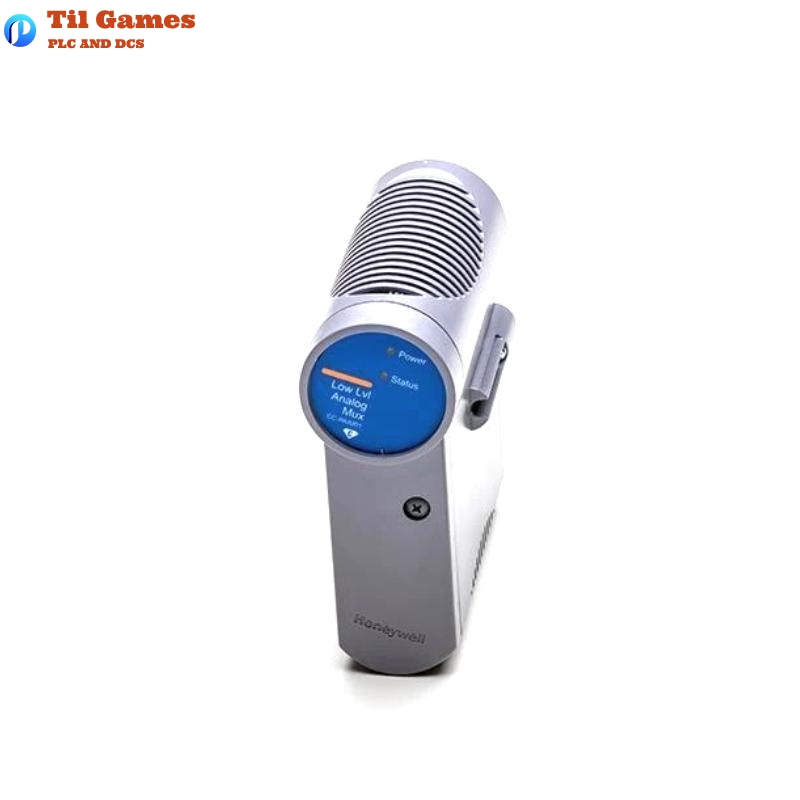

| Model Number | 8C-PAIM01 (Coated), 8U-PAIM01 (Uncoated) |
| Module Type | Low-Level Analog Multiplexer (LLMUX) Input Module |
| Input Channels | 64 channels, fully isolated (in 16-point increments) |
| Input Types | Thermocouple (TC) and Resistance Temperature Detector (RTD) |
| Input Scan Rate | 1 second (up to 64 channels per second) |
| Channel Bandwidth | 0–4.7 Hz (−3 dB) |
| Nominal Input Range (TC) | –20 to +100 mV |
| Non-Damaging Input Range (TC) | –10 to +10 V |
| Non-Damaging Input Range (RTD) | –1 to +2 V @ 100 mA |
| Gain Error | 0.050% Full Scale Max |
| Temperature Stability (TC/RTD) | ±20 ppm/°C Max |
| Long Term Drift | 500 ppm |
| Input Impedance (TC) | 1 MΩ DC |
| Common Mode Voltage (CMV) | ±250 VDC or VAC RMS |
| Common Mode Rejection Ratio (CMRR) | 120 dB Min (50/60 Hz, 1000 Ω source) |
| Channel-to-Channel Voltage Isolation | ±250 VDC or VAC RMS |
| Crosstalk (DC to 60 Hz) | 80 dB (120 dB at 50/60 Hz) |
| Normal Mode Rejection Ratio (NMRR) | 60 dB Min |
| RTD Excitation Current | 1 mA |
| Cold Junction Compensation Range | –20 to +60°C (±0.5°C typical) |
| TC Linearization Accuracy | ±0.05 Ω/°C |
| Open TC Detection Threshold | ≤ 1000 Ω = no-trip; ≥ 1500 Ω = guaranteed trip |
| RTD Max Lead Resistance | 15 Ω |
| Surge Protection (Sensor Terminals) | EN 61000-4-5 (1 kV line-to-line, 2 kV line-to-ground) |
| Max Cable Distance to FTA | 1000 ft (16 AWG, two twisted pairs per FTA) |
| Supported RTD Types | Pt100 (DIN, JIS), Ni120, Cu10 |
| Supported TC Types | J, K, E, T, B, S, R, R’ (Japan) |
| Supported mV Inputs | –20 to +100 mV |
| Module Dimensions | 220 x 120 x 60 mm |
| Module Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of temperature sensors does the 8C-PAIM01 module support?
A1: It supports both thermocouples (TC) and resistance temperature detectors (RTD), including Pt100, Ni120, and Cu10 sensors.
Q2: How many input channels are available on the 8C-PAIM01?
A2: The module provides up to 64 fully isolated channels in 16-channel increments.
Q3: What is the scan rate for analog temperature inputs?
A3: The input scan rate is fixed at 1 second per channel, supporting up to 64 channels per second.
Q4: Does the module provide cold junction compensation (CJC) for thermocouples?
A4: Yes, it includes integrated cold junction compensation for all TC inputs.
Q5: How is Open Thermocouple Detection (OTD) handled?
A5: The module performs an OTD check during each scan. If an open condition is detected, the PV is set to NAN, preventing invalid control actions.
Q6: Can this module be used in hazardous environments?
A6: Yes, the coated version (8C-PAIM01) includes conformal coating for protection in harsh and industrial environments.
Q7: What kind of surge protection does the module offer?
A7: Surge protection is compliant with EN 61000-4-5 standards—1 kV line-to-line and 2 kV line-to-ground for industrial environments.
Q8: What are the physical dimensions and weight of the module?
A8: The 8C-PAIM01 module measures 220 x 120 x 60 mm and weighs 0.3 kg.
