Technical Specifications
| Parameter | Specification |
|---|---|

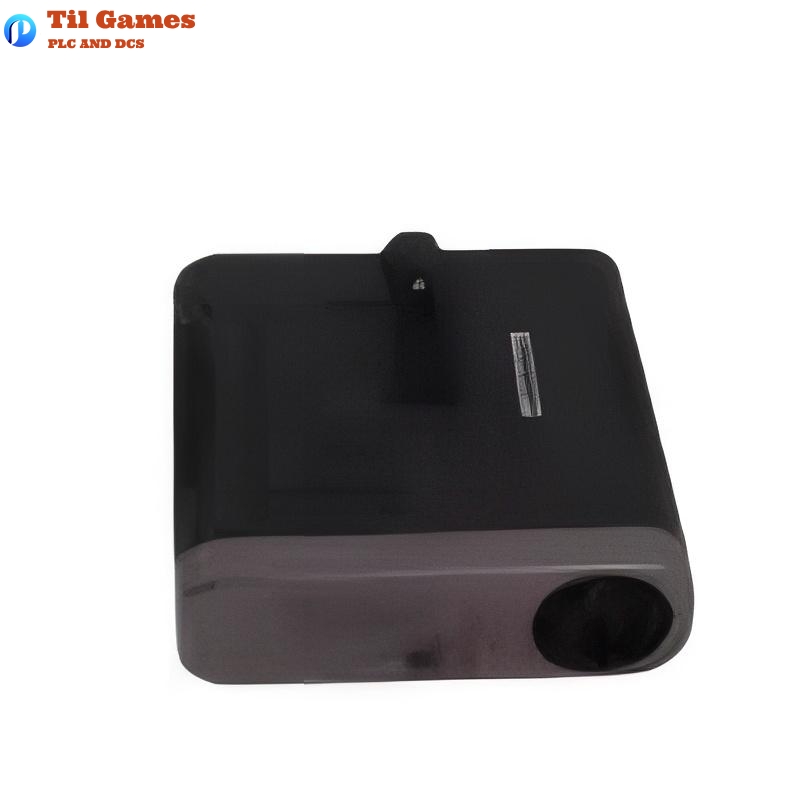

| Model | 8C-PAIH51 (Coated) |
| Input Type | Current (4–20 mA through 200 Ω), supports 2-wire or self-powered transmitters |
| Number of Input Channels | 16 channels (all single-ended) |
| A/D Converter Resolution | 16 bits |
| Input Range | 4–20 mA |
| Normal Mode Rejection Ratio (60 Hz) | 19 dB |
| Normal Mode Filter Response | Single-pole RC, -3 dB @ 6.5 Hz |
| Crosstalk (Channel-to-Channel, DC-60Hz) | -60 dB |
| Maximum Input Voltage (non-damaging) | ±30 VDC (referenced to common) |
| Input Scan Rate | 50 ms |
| Hardware Accuracy (at 23.5° ± 2°C) | ±0.075% of full scale |
| Hardware Accuracy (0–60°C) | ±0.15% of full scale |
| Field Power Conditioning | Individually protected, current-limiting circuits, no fusing required |
| Redundancy Option | Supported (via redundant IOTA configuration) |
| Supports HART | Yes, for multivariable instruments and multiple modems |
| Module Coating | Conformal coated for harsh environments |
| Dimensions (L x W x H) | 220 mm x 120 mm x 60 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of signals does the 8C-PAIH51 module accept?
A1: The module accepts high-level analog current signals in the 4–20 mA range, compatible with both 2-wire and self-powered transmitters.
Q2: How many input channels are available on the 8C-PAIH51?
A2: It supports 16 single-ended input channels for analog signal acquisition.
Q3: Is the 8C-PAIH51 module HART-compatible?
A3: Yes, it is fully HART-capable and supports multivariable instruments with multiple modems for efficient data retrieval.
Q4: What is the scan rate for input data acquisition?
A4: The input scan rate is 50 milliseconds, allowing for fast and responsive signal processing.
Q5: Can the module operate in hazardous environments?
A5: Yes, the 8C-PAIH51 provides non-incendive field power and meets Division 2 hazardous location requirements.
Q6: Is redundancy supported with this module?
A6: Redundancy is available and can be configured by installing the module on a redundant IOTA base.
Q7: What is the typical accuracy of the 8C-PAIH51?
A7: The module achieves ±0.075% full-scale accuracy at 23.5°C and ±0.15% across a 0–60°C temperature range.
Q8: Does the module require external field power?
A8: No, it supplies its own non-incendive field power, eliminating the need for additional external power sources or marshalling.
