Technical Specifications
| Parameter | Specification |
|---|---|

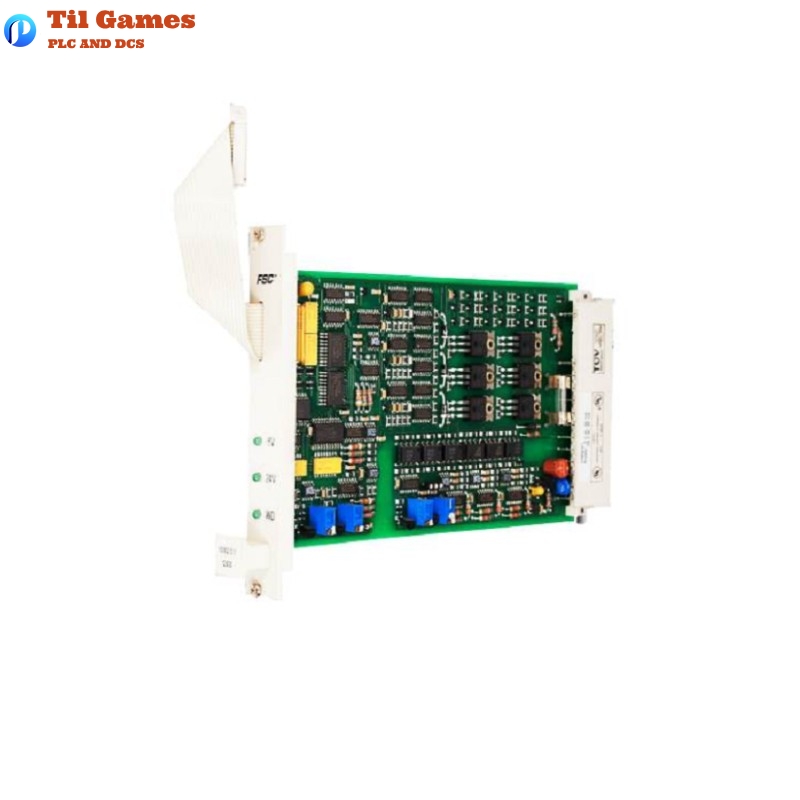

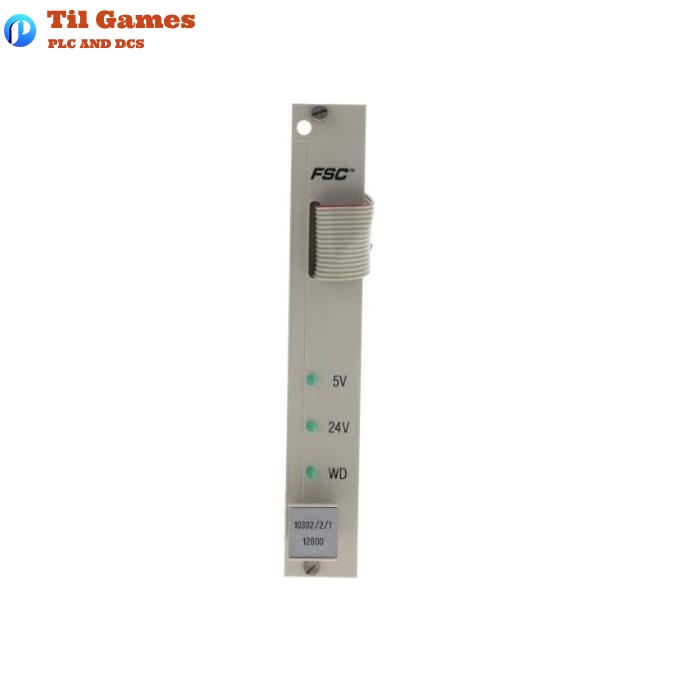

| Model Number | 10302/2/1 |
| Function | Watchdog repeater for monitoring 5 Vdc and 24 Vdc supplies |
| Approvals | CE, TÜV, UL |
| Software Versions Supported | ≥ 3.00 |
| Installation Requirement | Requires horizontal bus connection in I/O rack |
| Rack Position | Must be installed in I/O section it monitors |
| Connector Type | DIN 41612 type F, rows ‘d’, ‘b’, and ‘z’ used |
| Power Supply Requirement | 5 Vdc @ 35 mA (excluding WDROUT), 24 Vdc @ 25 mA |
| WDG Input Current (WDG1+2) | 0.1 mA |
| Key Coding | Holes: A5, A9; Rack pins: A5, A9 |
| Physical Dimensions | 160 mm x 100 mm x 25 mm |
| Weight | 0.12 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 10302/2/1 watchdog repeater?
A1: The module monitors the 5 Vdc and 24 Vdc power supplies and ensures a stable watchdog output to output modules whose power is being supervised.
Q2: In what configurations is the watchdog repeater required?
A2: It is mandatory in multi-PSU setups, when using M24-20 HE or M24-12 HE power supplies, or any power supply exceeding 31 Vdc under fault conditions.
Q3: Can the 10302/2/1 module be hot-swapped?
A3: Yes, it may be replaced with power on. However, doing so will result in Central Part shutdown, particularly in configurations with redundant Central Parts and non-redundant I/O.
Q4: Where should the watchdog repeater be placed in the I/O rack?
A4: It must be installed in the same I/O section as the output modules it monitors. It cannot cross-monitor modules in other I/O sections.
Q5: What are the electrical limits of the watchdog output current?
A5: The module itself does not provide a specified WDROUT current limit but must be used when the required watchdog current exceeds 900 mA.
Q6: What type of connector does the module use?
A6: The 10302/2/1 uses a DIN 41612 type F connector, utilizing rows d, b, and z.
Q7: Is there any risk in exceeding 24 Vdc supply voltage?
A7: Yes. The output voltage of the 24 Vdc supply must never exceed 37 Vdc under any fault condition.
Q8: What software version is compatible with this module?
A8: The module supports all software versions starting from version 3.00 and up.
