Technical Specifications
| Parameter | Description |
|---|---|

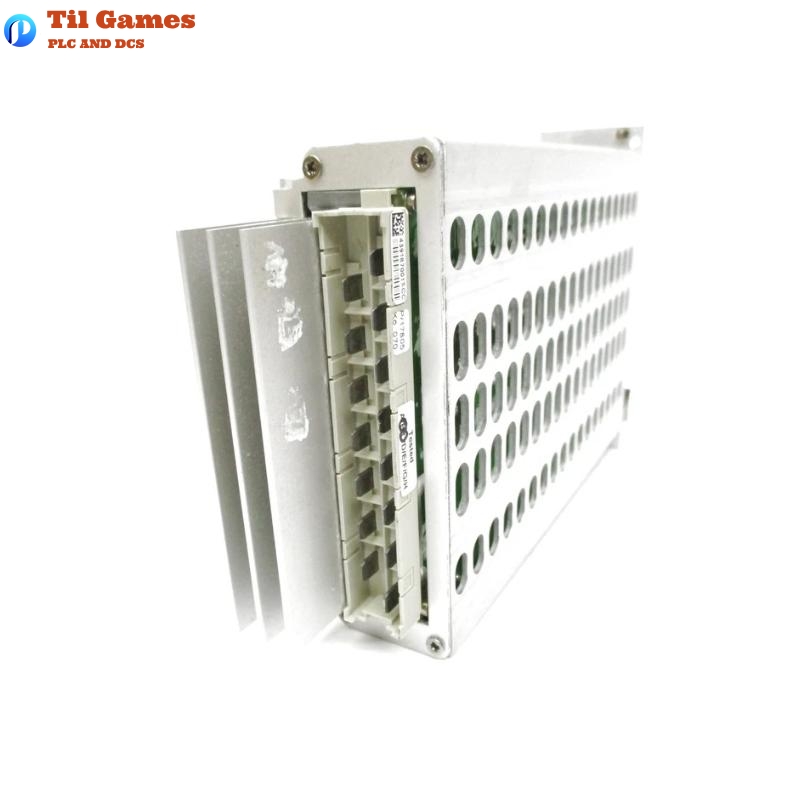

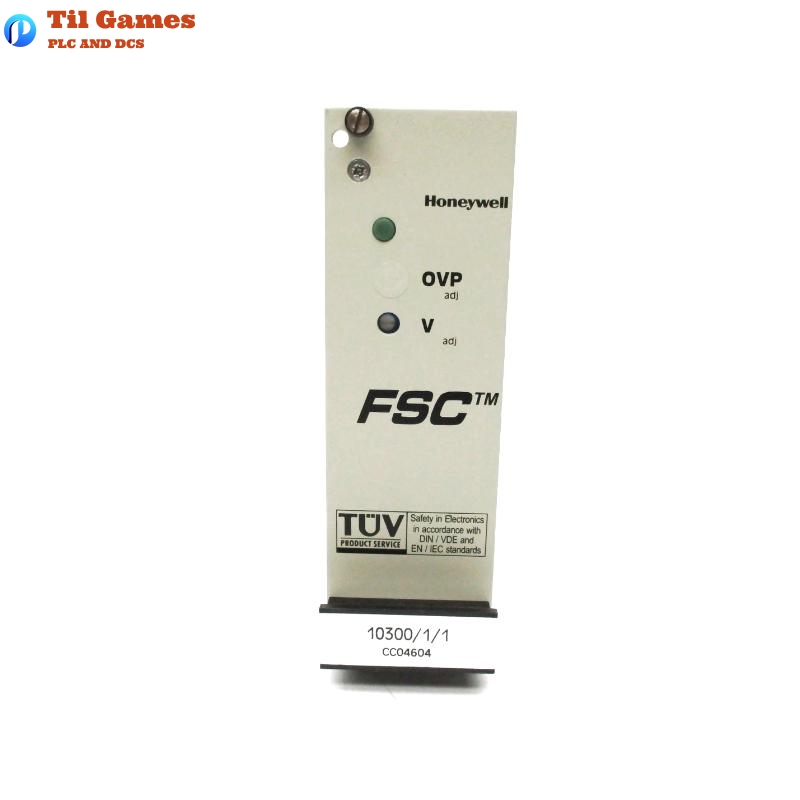

| Type Number | 10300/1/1 (suffix 04603) |
| Approvals | CE, TÜV, UL |
| Software Versions Supported | All |
| Space Requirements | 8 TE, 3 HE (8 HP, 3U) |
| Input Voltage Range | 24 Vdc (–15% to +30%) |
| Power Consumption | < 3.9 A at 24 Vdc |
| Inrush Current | < 18 A |
| Output Voltage | 5 Vdc ±5%, with overvoltage protection |
| Output Voltage Setting (V adj) | 5.00 Vdc (measured across system bus) |
| Output Current | 12 A (0°C to 45°C), 8 A (0°C to 60°C) |
| Ripple Content | < 40 mV p-p at full load |
| Overvoltage Protection (OVP adj) | 5.75 Vdc |
| Hold-Up Time | ≥ 0 ms |
| Efficiency | ≥ 70% |
| Ambient Temperature Range | 0°C to 60°C |
| Mounting Requirements | Must be placed close to system bus; wire diameter up to 6 mm² |
| Dimensions | 160 x 100 x 50 mm |
| Weight | 0.4 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the function of the Honeywell 10300/1/1 module?
A1: The module is a DC/DC converter that transforms 24 Vdc input into 5 Vdc output with galvanic isolation for powering FSC system modules.
Q2: Can the 10300/1/1 operate continuously at 12 A output?
A2: Yes, but only in ambient temperatures from 0°C to 45°C. Above 45°C, the maximum output is reduced to 8 A.
Q3: How does the module protect against overvoltage?
A3: It includes an overvoltage protection circuit that limits the output voltage to 5.75 Vdc.
Q4: Is it compatible with earlier modules like the GK60?
A4: Yes, the 10300/1/1 is a pin-compatible upgraded version of the GK60 module.
Q5: Can the module be used in redundant configurations?
A5: Yes, however the LED may remain lit due to redundancy wiring even if the module is turned off.
Q6: What precautions should be taken during replacement?
A6: After powering off, wait at least 30 seconds before replacing the module to allow the internal NTC resistor to cool down, preventing power dips.
Q7: What are the wiring requirements for optimal operation?
A7: Use short, appropriately gauged wires (up to 6 mm² for 12 A loads) and connect sense wires correctly to maintain voltage accuracy.
Q8: Is the module suitable for environments with high temperatures?
A8: It can operate up to 60°C, but output current must be derated beyond 45°C to avoid thermal stress.
