Products Description
| Company Information | |||
| [email protected] | |||
| Mobile | +8613666033393 | ||
| +8613666033393 | |||
| 13666033393 | |||
| Add | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China |
Technical Specifications
| Parameter | Value |
|---|---|

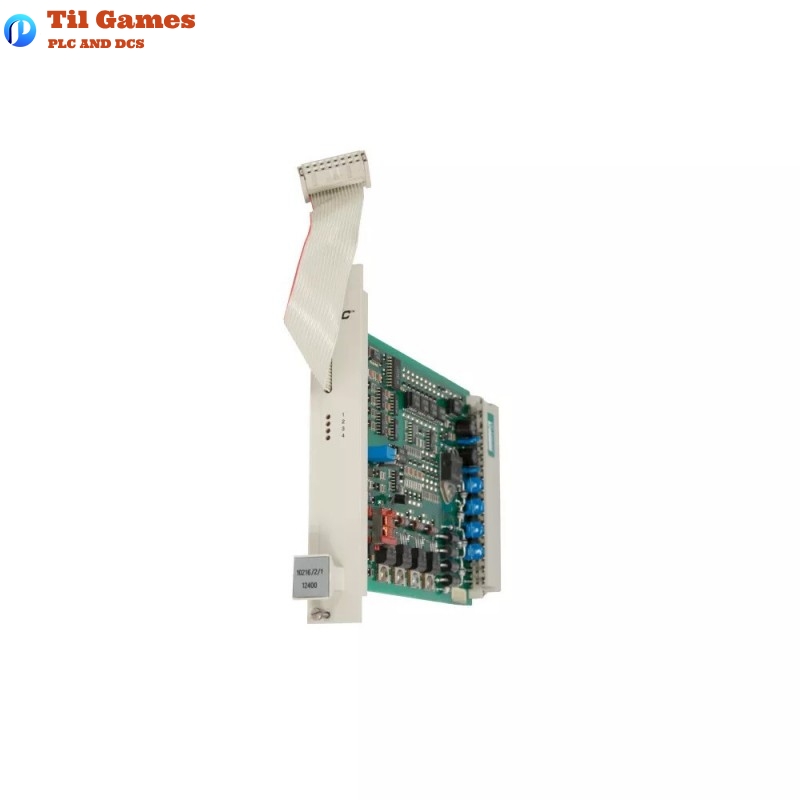

| Module Type | Fail-safe loop-monitored digital output module |
| Part Number | 10216/2/1 |
| Output Channels | 4 channels |
| Output Voltage | 24 VDC |
| Output Current per Channel | 1 A (maximum) |
| Loop Monitoring | Integrated loop-monitoring per channel |
| Switching Type | Electronic (transistor-based) |
| Switching Delay | < 1 ms |
| Output Protection | Short-circuit and overload protection |
| Diagnostics | Channel diagnostics and loop integrity check |
| Safety Category | SIL 3 (according to IEC 61508) |
| Isolation | Channel-to-channel and channel-to-ground |
| Power Supply Voltage | 24 VDC nominal (range: 19.2–30 VDC) |
| Module Connection | Redundant or non-redundant backplane |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –25°C to +80°C |
| Relative Humidity | 5% to 95% non-condensing |
| Shock Resistance | 15 G, 11 ms duration, 3 axes |
| Vibration Resistance | 10–150 Hz, 0.075 mm / 1 G |
| Dimensions (H x W x D) | 25.4 x 127 x 203.2 mm |
| Weight | 0.099 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 10216/2/1 module?
A1: The module is used to provide fail-safe digital output signals with continuous loop monitoring for critical safety applications.
Q2: How many outputs does the 10216/2/1 module support?
A2: It supports 4 individual digital output channels.
Q3: Is the output loop monitored for wire breaks or short circuits?
A3: Yes, each output channel includes loop monitoring to detect open and short circuits.
Q4: What is the maximum current that each channel can handle?
A4: Each output channel can handle up to 1 A at 24 VDC.
Q5: Does the module offer diagnostic features?
A5: Yes, it includes diagnostic capability per channel for fault identification and loop integrity verification.
Q6: Can this module be used in safety-critical systems?
A6: Yes, it is certified for use in SIL 3 safety applications according to IEC 61508.
Q7: What kind of output switching mechanism is used?
A7: The module uses solid-state transistor switching for fast and reliable operation.
Q8: What are the environmental limits for operation?
A8: It operates from 0°C to +60°C and can be stored between –25°C and +80°C, with up to 95% non-condensing humidity.
Tags
Packing & Delivery
We will use wear-resistant cartons to seal the boxes, and take photos for your confirmation before sealing. We will pack the boxes only after confirmation.
For express delivery, we will use DHL, UPS, TNT, FedEx and EMS.
Please rest assured that we have a deep cooperation with express delivery companies and can ensure that your goods are delivered to you in good condition.
