Product Introduction

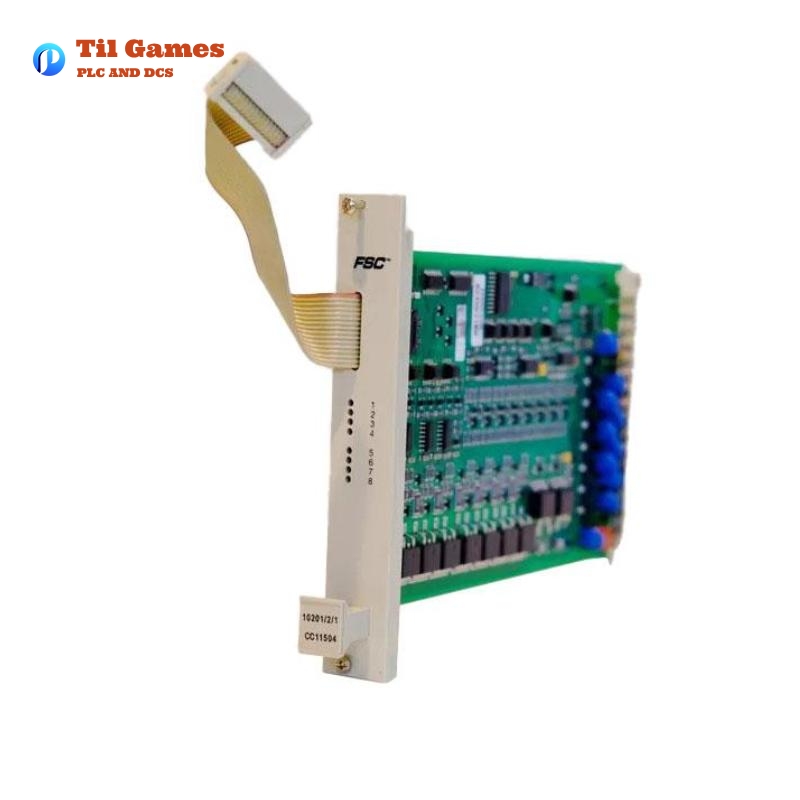

The Honeywell 10201/2/1 Fail-safe Digital Output Module is designed to provide a robust solution for controlling output devices in industrial control applications, especially in fail-safe environments. It features eight 24 Vdc output channels that can drive resistive or inductive loads up to 13 W. These outputs are solid-state sources that are short-circuit proof and capable of handling inductive loads with built-in suppression diodes for reliability and safety.

The module is specifically engineered to meet fail-safe standards, with rigorous testing on output de-energization, crosstalk, and suppression diode functionality. It is an ideal choice for applications requiring highly reliable output control and minimal downtime, such as automated systems in manufacturing, process industries, and critical infrastructure projects.



Product Specifications

Specification Details
Manufacturer Honeywell
Product No. 10201/2/1
Product Type Fail-safe Digital Output Module
Model Type 11501
Approvals CE, TüV, UL
Software Version 3.00
Space Requirements 4 TE, 3 HE (= 4 HP, 3U)
Power Requirements 5 Vdc 25 mA, 24 Vdc internal 25 mA, 24 Vdc external 70 mA (without output load)
Output Channels 8
Output Specification 24 Vdc solid-state source, short-circuit proof
Maximum Current 550 mA*
Maximum Lamp Load 120 mA (2.9 W)*
Maximum Load Capacitance 1 µF
Voltage Drop < 2.0 Vdc at 500 mA*
Off Current < 0.1 mA
WDG Input Current 8 mA
Module Code holes A9, C9
Rack Code large pins A9, C9
Dimensions (L x W x H) 30 x 200 x 150 mm
Weight 0.15 kg




Applications

  • Industrial Automation Systems: Suitable for controlling actuators, solenoids, and other industrial equipment in automated production lines.
  • Process Control Systems: Used in critical processes requiring guaranteed fail-safe functionality, such as chemical processing and energy generation.
  • Safety Systems: Perfect for applications requiring high-reliability and redundancy, including safety-critical environments.
  • Building Automation: Applicable for controlling lights, HVAC systems, and other devices in commercial or industrial buildings.

Advantages

  • Fail-Safe Design: This module is rigorously tested for fail-safe operation, ensuring uninterrupted service in mission-critical applications.
  • Inductive Load Capability: Built-in suppression diodes ensure safe operation with inductive loads, such as solenoids, protecting the system from voltage spikes.
  • Short-Circuit Proof: The solid-state outputs are protected from short-circuit conditions, providing greater reliability and lower maintenance needs.
  • Robust Approvals: CE, TüV, and UL approvals make the module suitable for use in a variety of global markets and industries.
  • Compact and Space-Efficient: With a small footprint (30 x 200 x 150 mm) and low weight (0.15 kg), this module fits into tight spaces and is easy to integrate into existing systems.

Latest Reports and Headlines

  1. “Honeywell Enhances Safety with New Fail-Safe Digital Output Modules”
  2. “Honeywell’s 10201/2/1 Module Powers Critical Automation Systems”
  3. “Innovative Fail-Safe Modules: Ensuring Uptime in Harsh Industrial Environments”
  4. “Achieving Robust Automation with Honeywell’s Fail-Safe Digital Output Solutions”

Related Models

Model No. Description Power Supply Channels Maximum Current Approvals
10201/2/2 Fail-safe Digital Output Module with 16 channels 24 Vdc 16 550 mA CE, TüV, UL
10202/1/1 Fail-safe Digital Output Module with enhanced protection 24 Vdc 8 550 mA CE, TüV, UL
10201/1/1 Basic Digital Output Module with 8 channels 24 Vdc 8 500 mA CE, UL
10201/3/1 24 Vdc Digital Output Module with higher load capacity 24 Vdc 8 800 mA CE, TüV, UL
10202/3/1 Compact Digital Output Module, 8 channels 24 Vdc 8 400 mA CE, TüV, UL

Popular Honeywell Models

Model No. Description Power Supply Channels Maximum Current Approvals
10101/1/1 Fail-safe Digital Input Module 24 Vdc 8 550 mA CE, TüV, UL
10105/2/1 Fail-safe High-Density Analog Input Module 24 Vdc 16 120 mA CE, TüV, UL
10201/2/1 Fail-safe Digital Output Module 24 Vdc 8 550 mA CE, TüV, UL
10202/2/1 High-Capacity Digital Output Module 24 Vdc 16 550 mA CE, TüV, UL
10301/1/1 Digital Input/Output Module 24 Vdc 8 550 mA CE, TüV, UL
FAQ

FAQs (Frequently Asked Questions)

Q1: What is the primary application of the Honeywell 10201/2/1 Fail-safe Digital Output Module?
A1: This module is primarily used in industrial automation and process control systems where fail-safe functionality is critical for safety and reliability.

Q2: How does the 10201/2/1 module ensure safe operation for inductive loads?
A2: The module includes suppression diodes on each output, which protect the system from voltage spikes caused by inductive loads like solenoids.

Q3: What is the maximum current that can be drawn by the outputs?
A3: Each output channel can supply a maximum current of 550 mA.

Q4: What is the typical voltage drop at the maximum current?
A4: The voltage drop is less than 2.0 Vdc at 500 mA.

Q5: Can this module be used in safety-critical environments?
A5: Yes, the Honeywell 10201/2/1 module is designed and tested for fail-safe applications, making it suitable for safety-critical environments.

Q6: What types of loads can be controlled with this module?
A6: It can control both resistive loads (e.g., lamps) and inductive loads (e.g., solenoids).

Q7: What are the space requirements for installing this module?
A7: The module requires 4 TE and 3 HE space in the rack, which equals 4 HP and 3U.

Q8: What are the module’s power consumption requirements?
A8: The module requires 5 Vdc (25 mA), 24 Vdc internal (25 mA), and 24 Vdc external (70 mA, without output load).

Q9: Is this module UL approved?
A9: Yes, it has UL approval, along with CE and TüV certifications.

Q10: What are the dimensions and weight of this module?
A10: The module measures 30 x 200 x 150 mm and weighs 0.15 kg.
