Product Description:

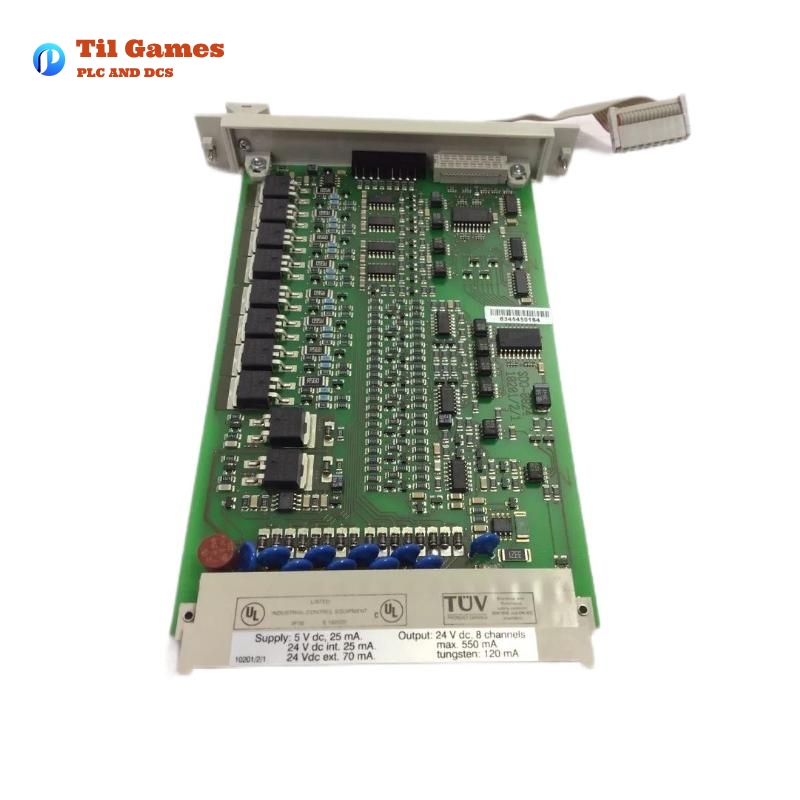

The Honeywell 10201/2/1 Fail-safe Digital Output Module is a highly reliable module designed for fail-safe applications, featuring eight solid-state 24 Vdc digital output channels. The module can drive loads up to 13 W, making it suitable for both resistive loads like lamps and inductive loads such as solenoids. Each output includes a suppression diode for inductive loads, ensuring safe operation by preventing voltage spikes. These outputs have been rigorously tested for safety, including de-energizing tests, group de-energizing, crosstalk elimination, and suppression diode functionality, making the module ideal for critical industrial control systems.
The 10201/2/1 module is an essential component for systems where reliability and fail-safe operations are a priority. It is CE, TüV, and UL approved, providing assurance of compliance with international safety and quality standards.
Applications:
The Honeywell 10201/2/1 Fail-safe Digital Output Module is commonly used in:
- Industrial automation systems requiring robust digital outputs for control of solenoids, actuators, and lamps.
- Safety-critical applications where output channels must be de-energized safely, such as emergency stop systems, interlock systems, and shutdown systems.
- Process control systems in industries like manufacturing, energy, and transportation, where failure-free operation is a must.
Advantages:
- Reliability: Thorough testing ensures safe de-energizing, suppression diode function, and crosstalk prevention.
- Versatility: Suitable for both resistive and inductive loads.
- Safety: Fully certified with CE, TüV, and UL approvals for global compliance.
- Compact Size: Space-efficient design (4 TE, 3 HE), ideal for environments with limited rack space.
- Power Efficiency: Low power consumption with a 5 Vdc power requirement for internal operation and 70 mA external requirement.
- Ease of Integration: Simple installation with key coding options and module-specific pin configurations.
Technical Specifications:
| Feature | Specification |
|---|---|
| Product Type | Fail-safe Digital Output Module |
| Model | 11501 |
| General Type Number | 10201/2/1 |
| Approvals | CE, TüV, UL |
| Software Version | 3.00 |
| Space Requirements | 4 TE, 3 HE (= 4 HP, 3U) |
| Dimensions | 30 x 200 x 150 mm |
| Weight | 0.15 kg |
| Power Requirements | 5 Vdc (25 mA), 24 Vdc internal (25 mA), 24 Vdc external (70 mA) |
| Output Channels | 8 |
| Output Type | 24 Vdc solid-state source, short-circuit proof |
| Maximum Current | 550 mA |
| Maximum Lamp Load | 120 mA (2.9 W) |
| Maximum Load Capacitance | 1 µF |
| Voltage Drop | < 2.0 Vdc at 500 mA |
| Off Current | < 0.1 mA |
| WDG Input Current | 8 mA |
| Key Coding | (See ‘Key coding’ data sheet) |
| Module Code | Holes A9, C9 |
| Rack Code | Large pins A9, C9 |
Latest Report Titles:
- “Innovations in Fail-Safe Digital Output Modules for Industrial Automation”
- “Honeywell 10201/2/1: Revolutionizing Safety in Critical Control Systems”
- “How Honeywell’s Fail-Safe Modules Enhance Operational Reliability”
- “Ensuring Safe Shutdowns with Honeywell’s 10201/2/1 Digital Output Module”
- “CE, TüV, and UL Approvals: What They Mean for Your Honeywell Module”
Related Product Recommendations (Same Series or Similar):
| Model | Product Type | Key Features | Output Channels | Power Consumption | Approvals |
|---|---|---|---|---|---|
| 10201/2/2 | Fail-safe Digital Output | 16 output channels, higher load capacity | 16 | 5 Vdc, 24 Vdc | CE, UL, TüV |
| 10202/1/1 | Fail-safe Digital Output | 8 outputs with enhanced load handling capacity | 8 | 5 Vdc, 24 Vdc | CE, UL |
| 10201/1/2 | Fail-safe Digital Output | Suitable for more aggressive industrial settings | 8 | 5 Vdc, 24 Vdc | CE, UL, TüV |
| 10203/1/1 | Fail-safe Digital Output | Advanced suppression technology for inductive loads | 8 | 5 Vdc, 24 Vdc | TüV, CE |
| 10204/2/1 | Fail-safe Digital Output | Dual channel outputs with redundancy capabilities | 2 | 5 Vdc, 24 Vdc | UL, CE |
Top 10 Popular Honeywell Models:
| Model | Product Type | Key Features | Output Channels | Power Consumption | Approvals |
|---|---|---|---|---|---|
| 10101/1/1 | Fail-safe Digital Input | Designed for hazardous environments | 8 | 5 Vdc, 24 Vdc | CE, TüV, UL |
| 10105/2/1 | High-density Analog Input | Supports high-resolution analog signals | 16 | 5 Vdc | CE, UL |
| 10110/3/1 | High-density Analog Output | Outputs for precise control of devices | 16 | 5 Vdc | UL, CE |
| 10201/2/2 | Fail-safe Digital Output | Dual output channels for fail-safe operations | 8 | 5 Vdc, 24 Vdc | CE, TüV, UL |
| 10301/1/1 | Digital Input Module | Compact module with high-speed performance | 16 | 5 Vdc, 24 Vdc | UL |
| 10105/3/1 | Analog Input Module | Supports up to 32 channels for broad signal input | 32 | 5 Vdc | CE, TüV |
| 10201/1/2 | Fail-safe Digital Output | High load capacity and safety compliance | 8 | 5 Vdc, 24 Vdc | CE, UL, TüV |
| 10204/2/2 | Dual Output Module | Redundant outputs for high reliability | 8 | 5 Vdc, 24 Vdc | CE, TüV |
| 10203/3/1 | Digital Output Module | Suitable for automation in extreme conditions | 8 | 5 Vdc, 24 Vdc | UL, CE |
| 10101/2/2 | Digital Input Module | High-speed response for critical operations | 8 | 5 Vdc, 24 Vdc | CE, TüV |
FAQ
FAQ (Frequently Asked Questions):
Q1: What is the maximum current for the Honeywell 10201/2/1 Fail-safe Digital Output Module?
A1: The maximum current per output channel is 550 mA.
Q2: Can the 10201/2/1 module be used for inductive loads?
A2: Yes, the module is equipped with suppression diodes for inductive loads such as solenoids.
Q3: What are the approvals for the Honeywell 10201/2/1 module?
A3: The module is approved by CE, TüV, and UL.
Q4: What is the voltage drop across the outputs?
A4: The voltage drop is less than 2.0 Vdc at 500 mA.
Q5: How much current does the 10201/2/1 module consume?
A5: The module requires 25 mA from the 5 Vdc power supply, 25 mA internally from the 24 Vdc, and 70 mA externally.
Q6: Can the module handle lamp loads?
A6: Yes, the maximum lamp load is 120 mA (2.9 W).
Q7: What are the size and weight of the 10201/2/1 module?
A7: The dimensions are 30 x 200 x 150 mm, and the weight is 0.15 kg.
Q8: Is the Honeywell 10201/2/1 module suitable for use in safety-critical applications?
A8: Yes, it is specifically designed for fail-safe applications and meets safety standards.
Q9: Can I use this module in hazardous environments?
A9: Yes, the module is suitable for harsh industrial conditions, offering both reliability and safety.
Q10: How many output channels does the Honeywell 10201/2/1 module have?
A10: The module has 8 output channels.
