Product Introduction:

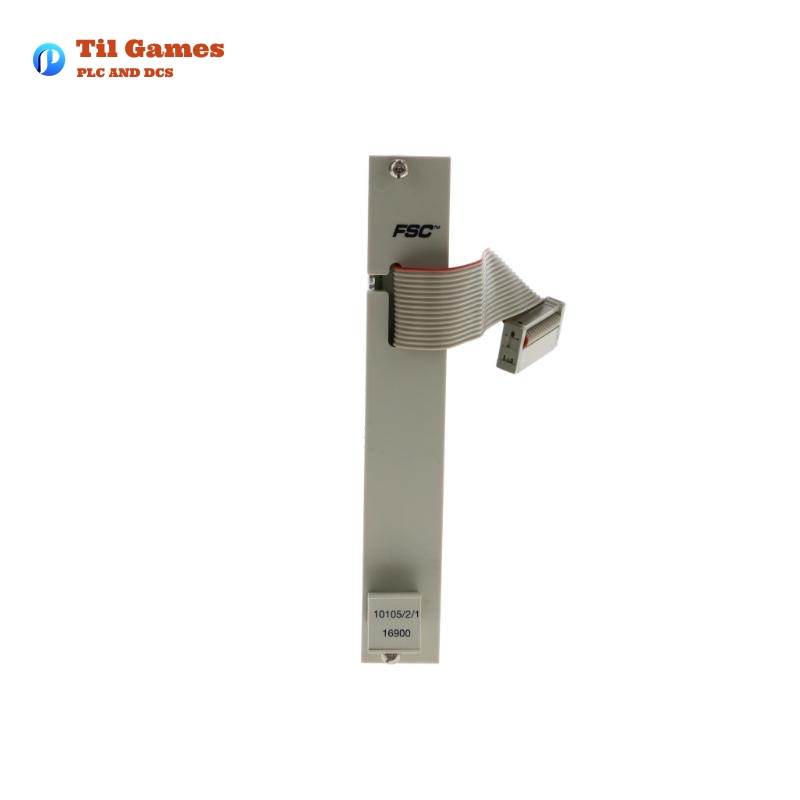

The Honeywell 10105/2/1 Fail-Safe High-Density Analog Input Module is designed to handle 16 input channels for analog signals, making it ideal for industrial applications where precision and reliability are paramount. This module is engineered for use in safety-critical environments, with fail-safe features to ensure consistent and accurate data capture. The module is typically employed in applications requiring analog-to-digital conversion of field signals such as 0-20 mA, which are converted for compatibility with the module’s input range.

The conversion process can be done via the field termination assembly (FTA-T-14) or by using the optional analog input conversion module (10105/A/1), which connects to the I/O backplane programming connector (Px) in the 19-inch rack.


Product Specifications

Specification Details
Model Number 10105/2/1 16900
Approvals CE, TÜV, UL approvals pending
Safety Class AK1-6 (AK6 in redundant mode)
Software Version >= 500
Power Requirements 5 Vdc 35 mA, 24 Vdc 35 mA
Number of Input Channels 16
Input Range 0 to 4.1 V
Input Resistance > 1 MΩ
A/D Converter 12-bit
A/D Converter Inaccuracy ± 1 LSB
Module Inaccuracy < 0.25%
Absolute Max. Input Signal ± 36 Vdc
Crosstalk Between Channels > 60 dB
External Voltage Readback Range 0 to 4.1 V, input resistance typically 1 MΩ
Dimensions 56 x 28 x 9 mm
Weight 0.15 kg

Applications

  • Process Control Systems: The module can be used in process automation for converting field signals into a form that is usable by the system, providing essential data for monitoring and controlling processes in industries such as oil & gas, power generation, and chemical processing.

  • Safety-Critical Applications: With its fail-safe features, the 10105/2/1 module is used in safety-critical applications where continuous monitoring and data integrity are essential.

  • SCADA Systems: The module can be integrated into SCADA (Supervisory Control and Data Acquisition) systems to ensure the accuracy of analog measurements.

  • Industrial Monitoring and Measurement: Used to measure process variables such as pressure, flow, and temperature, providing real-time feedback to control systems for improved decision-making.


Advantages

  • High Density: The 16 channels provide high-density input, saving space in control panels or racks.

  • Fail-Safe Operation: The module is designed to operate safely even under fault conditions, making it ideal for industries where system integrity is critical.

  • High Accuracy: With an A/D converter resolution of 12 bits and module inaccuracy under 0.25%, this module provides high-precision measurements.

  • Wide Input Range: The input range of 0 to 4.1 V accommodates a broad range of industrial signals, making it versatile across various applications.

  • Modular Design: The use of external conversion modules such as the 10105/A/1 allows for flexibility in configuration and setup.

  • Easy Integration: The module’s compatibility with 19-inch rack I/O backplanes and industry-standard connectors ensures simple integration into existing systems.


Latest Reports

  1. “Maximizing Industrial Automation with Honeywell’s Fail-Safe High-Density Analog Input Module”
    Report on how the 10105/2/1 module improves system reliability and data accuracy in critical applications.

  2. “Honeywell’s Advanced Analog Input Solutions for Safety-Critical Environments”
    A detailed look at how Honeywell’s analog input modules enhance safety features in process control systems.

  3. “Harnessing Precision and Flexibility: Honeywell’s Analog Input Modules for Complex Industrial Systems”
    Insights into how the 10105/2/1 module supports complex industrial systems through precision and flexibility.

  4. “How Honeywell 10105/2/1 is Revolutionizing Process Automation”
    Exploration of the role this module plays in streamlining process automation with high-density input options.


Recommendations for Related Models

Model Number Description Input Range Channels A/D Converter Power Supply Approvals
10105/2/2 Analog Input Module, 32 channels 0-4.1 V 32 12-bit 5 Vdc, 24 Vdc CE, TÜV, UL
10105/1/1 Analog Input Module, 8 channels 0-4.1 V 8 12-bit 5 Vdc, 24 Vdc CE, TÜV, UL
10105/A/1 Analog Input Conversion Module for 10105 series 0-20 mA N/A N/A 24 Vdc CE, TÜV
10105/3/1 High-Density Input Module with extended range 0-10 V 16 12-bit 5 Vdc, 24 Vdc CE, TÜV, UL
10105/4/1 High-Density Input Module for harsh environments 0-4.1 V 16 12-bit 5 Vdc, 24 Vdc CE, TÜV, UL
10105/2/3 Analog Input Module with redundancy support 0-4.1 V 16 12-bit 5 Vdc, 24 Vdc CE, TÜV, UL
10105/1/2 Compact Analog Input Module, suitable for remote setups 0-4.1 V 8 12-bit 5 Vdc, 24 Vdc CE, TÜV, UL
10105/2/4 Fail-Safe High-Density Input Module with increased crosstalk immunity 0-4.1 V 16 12-bit 5 Vdc, 24 Vdc CE, TÜV, UL
10105/2/5 Robust Analog Input Module for extreme temperatures 0-4.1 V 16 12-bit 5 Vdc, 24 Vdc CE, TÜV, UL
10105/2/6 Analog Input Module with enhanced redundancy 0-4.1 V 16 12-bit 5 Vdc, 24 Vdc CE, TÜV, UL

Recommendations for Popular Honeywell Models

Model Number Description Channels Input Range A/D Converter Power Supply Approvals
10101/1/1 Fail-Safe Digital Input Module 16 0 to 4.1 V 12-bit 5 Vdc, 24 Vdc CE, TÜV, UL
10110/1/1 Digital Output Module with Fail-Safe Feature 16 N/A 12-bit 24 Vdc CE, TÜV
10201/1/1 Analog Output Module 8 0 to 10 V 12-bit 5 Vdc, 24 Vdc CE, UL
10001/1/1 Process Control Module 4 0 to 4.1 V 12-bit 5 Vdc, 24 Vdc CE, TÜV, UL
10405/2/1 High-Speed Digital Input Module 16 0 to 4.1 V 12-bit 5 Vdc, 24 Vdc CE, TÜV, UL
10012/1/1 Process Monitoring and Control Module 4 0 to 4.1 V 12-bit 5 Vdc, 24 Vdc CE, TÜV
10410/1/1 High-Speed Analog Input Module 16 0 to 4.1 V 12-bit 5 Vdc, 24 Vdc CE, UL
10004/2/1 Fieldbus Communication Module 4 0 to 4.1 V 12-bit 5 Vdc, 24 Vdc CE, TÜV
10009/1/1 Remote I/O Module 8 0 to 4.1 V 12-bit 5 Vdc, 24 Vdc CE, TÜV, UL
10203/1/1 Smart I/O Module 8 0 to 4.1 V 12-bit 5 Vdc, 24 Vdc CE, TÜV, UL
FAQ

Frequently Asked Questions (FAQ)

Q1: What is the maximum input signal for the 10105/2/1 module?
A1: The absolute maximum input signal is ± 36 Vdc.

Q2: How many input channels does the 10105/2/1 module support?
A2: It supports 16 input channels.

Q3: Can the 10105/2/1 module operate in redundant mode?
A3: Yes, the module supports redundant mode with safety class AK6.

Q4: What is the A/D converter resolution of the 10105/2/1 module?
A4: The A/D converter has a resolution of 12 bits.

Q5: What is the module’s typical power consumption?
A5: The module typically requires 5 Vdc at 35 mA and 24 Vdc at 35 mA.

Q6: What is the input resistance of the module?
A6: The input resistance is greater than 1 MΩ.

Q7: How accurate is the module?
A7: The module has an accuracy of less than 0.25%.

Q8: What is the maximum inaccuracy of the A/D converter?
A8: The maximum inaccuracy of the A/D converter is ± 1 LSB.

Q9: Can the module handle extreme temperature environments?
A9: Yes, the module is designed for industrial environments and can handle harsh conditions, especially when using related models with higher environmental ratings.

Q10: How does the module handle crosstalk between channels?
A10: The crosstalk between channels is greater than 60 dB, ensuring minimal interference between channels.
