Product Introduction

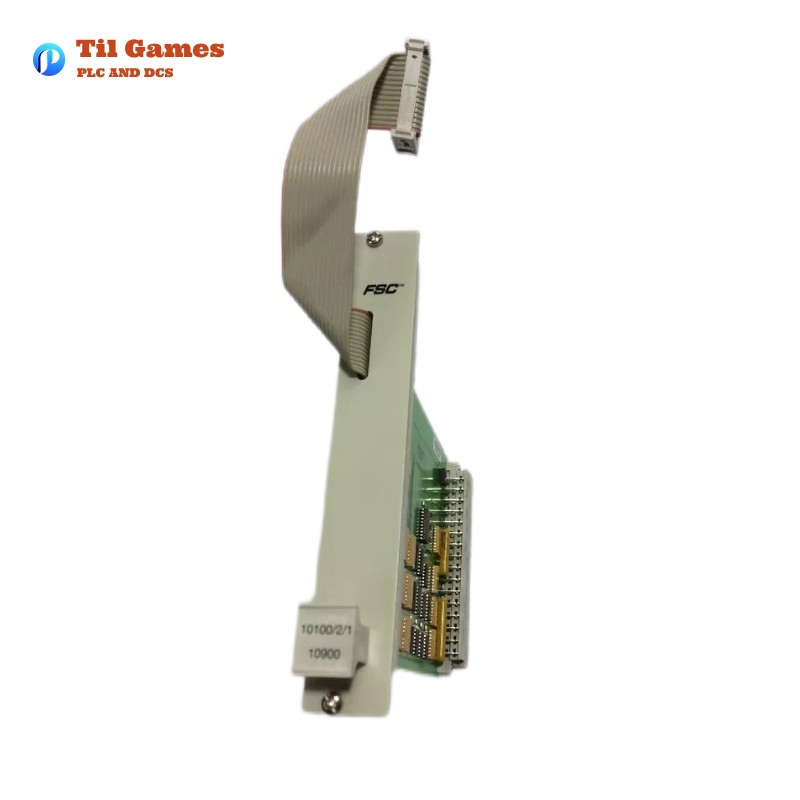

The Honeywell 10100/2/1 Horizontal Bus Driver Module is a critical component used in industrial automation and control systems. Designed to facilitate efficient data communication across horizontal bus architectures, this module ensures reliable signal transmission and system integrity. It is built to meet stringent industrial standards, providing stable performance with low power consumption and minimal ripple content.
The module is compact, lightweight, and features robust electrical characteristics, making it suitable for high-reliability applications. It is certified by CE, TÜV, and UL, indicating compliance with global safety and quality standards.
This module operates on a 5 V DC power supply, with varying current requirements depending on the cable type used. It is particularly designed for Honeywell’s distributed control systems (DCS) and programmable logic controllers (PLC), ensuring smooth interconnection between critical control components.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Product Number | 10100/2/1 |
| Product Type | Horizontal Bus Driver Module |
| Power Requirements | 5 V DC, 35 mA (with A1 or A21 cable) 5 V DC, 65 mA (with A22 cable) |
| Ripple Content | < 50 mV p-p |
| Space Requirements | 4 TE, 3 HE (4 HP, 3U) |
| Dimensions (L x W x H) | 125 mm x 75 mm x 60 mm |
| Weight | 0.11 kg |
| Approvals | CE, TÜV, UL |
Applications
The Honeywell 10100/2/1 Horizontal Bus Driver Module is widely used in various industrial applications, including:
- Distributed Control Systems (DCS): Enhances communication reliability between controllers and field devices.
- Programmable Logic Controllers (PLC): Ensures seamless data transmission within PLC architectures.
- Process Automation: Supports large-scale process automation applications in oil & gas, power plants, and manufacturing.
- Factory Automation: Helps streamline operations in high-speed production environments.
- Building Management Systems (BMS): Contributes to efficient HVAC and security system control.
- SCADA Systems: Provides stable signal transmission for supervisory control and data acquisition.
- Energy & Power Plants: Used in critical power monitoring and distribution networks.
- Aerospace & Defense: Reliable operation in mission-critical applications requiring high stability.
- Pharmaceutical & Chemical Industries: Supports precise process control in regulated environments.
- Water & Wastewater Treatment: Ensures smooth operation of automation equipment in treatment plants.
Product Advantages
The Honeywell 10100/2/1 Horizontal Bus Driver Module offers several key advantages:
- High Reliability: Designed to meet industrial-grade standards with consistent performance.
- Low Power Consumption: Operates efficiently with minimal power requirements.
- Compact & Lightweight: Small form factor (125 x 75 x 60 mm, 0.11 kg) for space-constrained environments.
- Industry-Recognized Certifications: CE, TÜV, and UL approvals ensure safety and compliance.
- Minimal Ripple Content: < 50 mV p-p ripple ensures stable voltage supply and reduces noise interference.
- Versatile Compatibility: Works seamlessly with Honeywell control systems and third-party automation equipment.
- Easy Installation: Designed for simple integration within existing industrial automation setups.
- Enhanced Signal Integrity: Maintains high-fidelity signal transmission in harsh industrial conditions.
- Scalability: Supports expansion in complex industrial networks requiring multiple bus driver modules.
- Durability: Robust construction ensures long operational life even in demanding environments.
Latest Reports on the Product
Here are some of the latest reports and news related to the Honeywell 10100/2/1 Horizontal Bus Driver Module:
- “Honeywell Enhances Industrial Automation with Advanced Bus Driver Technology”
- “New Developments in Honeywell’s Control Systems: A Focus on Bus Communication Modules”
- “How Honeywell’s 10100/2/1 Module is Revolutionizing Industrial Data Transmission”
- “Certified Reliability: Honeywell’s Bus Driver Module Receives TÜV and UL Approval”
- “Industrial Control Systems: The Role of Honeywell 10100/2/1 in Modern Automation”
Related Models in the Same Series
| Model Number | Description |
|---|---|
| 10100/2/2 | Horizontal Bus Driver, Extended Power Rating |
| 10100/3/1 | Vertical Bus Driver Module |
| 10101/1/1 | Industrial Bus Repeater |
| 10102/2/1 | Advanced Bus Interface Module |
| 10110/1/1 | Dual-Channel Horizontal Bus Driver |
| 10120/2/1 | High-Speed Bus Driver Module |
| 10130/1/1 | Bus Communication Module with Error Detection |
| 10140/2/1 | Redundant Bus Driver Module |
| 10150/3/1 | Bus Signal Conditioner |
| 10160/2/1 | Bus Surge Protection Module |
Popular Honeywell Models
| Model Number | Description |
|---|---|
| C300 | High-Performance Controller for DCS |
| UDC3500 | Universal Digital Controller |
| HC900 | Process Control System |
| STT850 | Smart Temperature Transmitter |
| XLS3000 | Fire Alarm Control Panel |
| IPC620 | Programmable Logic Controller (PLC) |
| Experion PKS | Advanced Process Automation System |
| TDC 3000 | Distributed Control System |
| DR4500 | Circular Chart Recorder |
| X-Series | Industrial Wireless Transmitter |
FAQ
FAQs (Frequently Asked Questions)
Q1: What is the function of the Honeywell 10100/2/1 Horizontal Bus Driver Module?
A1: It is used to drive and manage communication between industrial control components in a horizontal bus architecture.
Q2: What are the power requirements for this module?
A2: It operates at 5 V DC, with current requirements of 35 mA (A1/A21 cable) or 65 mA (A22 cable).
Q3: What industries commonly use this module?
A3: Industries such as oil & gas, power generation, manufacturing, and process automation utilize this module for reliable bus communication.
Q4: What certifications does this product have?
A4: It is CE, TÜV, and UL certified, ensuring compliance with global safety and industrial standards.
Q5: How does it differ from other bus driver modules?
A5: It has low ripple content (<50 mV p-p) and high signal integrity, making it ideal for precise automation applications.
Q6: Can it be used in hazardous environments?
A6: Yes, its robust design allows it to function in industrial settings with strict environmental conditions.
Q7: What are the dimensions of this module?
A7: The module measures 125 mm x 75 mm x 60 mm and weighs 0.11 kg.
Q8: Is it compatible with non-Honeywell systems?
A8: Yes, it can integrate with third-party automation systems, provided they support horizontal bus communication.
Q9: What is its expected lifespan?
A9: It is designed for long-term industrial operation, typically 10+ years under normal conditions.
Q10: How can I purchase this module?
A10: Consult Us.
