Product Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Product No. | 05701-A-0301 |
| Product Type | Single Channel Control Card (4-20mA) |
| Four-Part Liquid Crystal Display | Analog Display: 25 segments, Digital Display: Four characters, Message Display: Four characters, Icon Section: Power On/Card Select |
| LED Indicators | A1, A2, A3 gas alarms, Fault, and Inhibit |
| Push-Button | Alarm Reset/Card Select |
| Alarm Setting Point Resolution | In 1% full-scale steps |
| Power Consumption | Catalytic Sensor: 3.75W (typical, including sensor), 4-20mA: 3.25W (typical) |
| DC Supply | 18V to 32V DC |
| Electronic Drift | Less than ±2% / 6 months |
| Dimensions | 170 x 25 x 112 mm |
| Weight | 0.165 kg |
Product Introduction

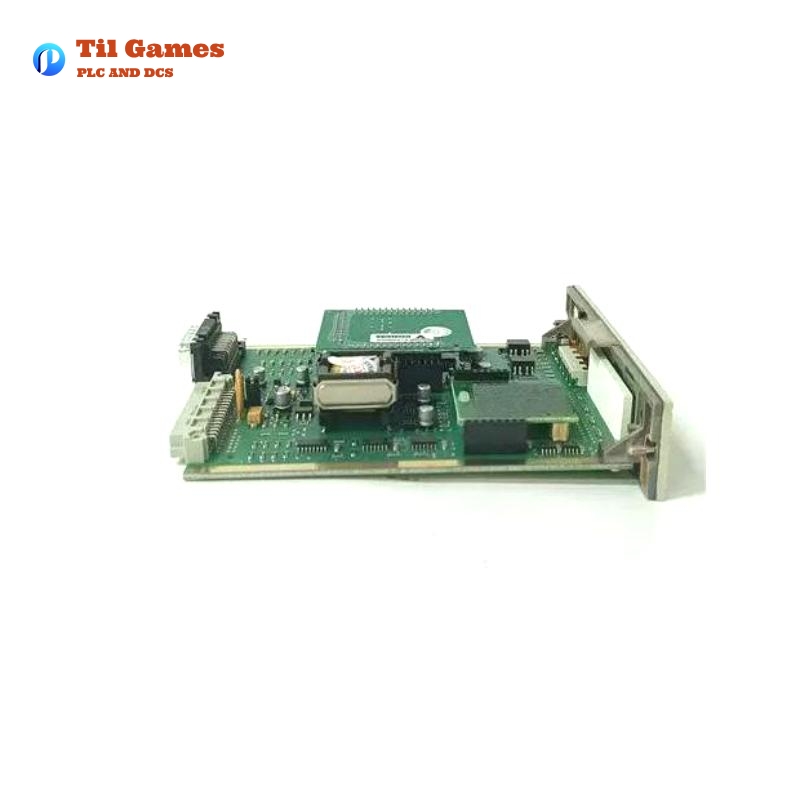

The Honeywell 05701-A-0301 Single Channel Control Card is a high-performance industrial control device designed for gas detection and monitoring systems. This device supports 4-20mA signal input and features a four-part liquid crystal display (LCD) that provides clear visibility of alarm statuses, real-time measurement values, and device operation conditions. LED indicators display different alarm levels, fault conditions, and inhibit status.
Equipped with precise electronic circuitry, this control card ensures high accuracy and stability, with excellent resistance to electromagnetic interference, making it ideal for harsh industrial environments. The built-in alarm reset and card selection button make operation more convenient.
Additionally, the Honeywell 05701-A-0301 features a compact design with low power consumption and minimal electronic drift, ensuring long-term stable operation and reduced maintenance requirements.
Applications
- Petrochemical Industry: Used in gas detection and alarm systems for safe operations.
- Power Plants: Monitors gas leaks to ensure equipment safety.
- Pharmaceutical Industry: Ensures compliance with safety standards by monitoring gases.
- Food Processing: Monitors air quality to prevent harmful gas contamination.
- Metallurgical Industry: Detects furnace gas and other hazardous gases to prevent explosions.
- Municipal Gas Distribution: Monitors gas pipelines and stations to prevent accidents.
- Warehousing and Logistics: Ensures chemical storage and hazardous material transportation safety.
- Laboratories: Detects toxic gases emitted during experiments.
- Shipbuilding Industry: Monitors gases in ship cabins to ensure crew safety.
- Other Industrial Environments: Suitable for any scenario requiring real-time gas monitoring.
Product Advantages
- High-Precision Measurement: Supports 4-20mA signals for reliable data transmission.
- Clear Display: Four-part LCD screen provides easy-to-read data and alarm messages.
- LED Indicators: Clearly indicate alarm status to enhance safety.
- Low Power Consumption: Designed for long-term operation with reduced energy usage.
- Compact and Lightweight: Small dimensions make it easy to install without occupying much space.
- High Reliability: Minimal electronic drift ensures stable performance over time.
- Wide Applicability: Suitable for various gas detection applications.
- Durable and Rugged: Designed for harsh industrial environments, ensuring longevity.
- Comprehensive Alarm System: Multi-level alarms enhance early warning capabilities.
- Easy Maintenance: User-friendly design reduces maintenance costs.
Recommended Related Models
| Model | Product Name | Key Features |
|---|---|---|
| 05701-A-0302 | Single Channel Control Card | Compatible with other gas detection sensors |
| 05701-A-0401 | Dual Channel Control Card | Monitors two 4-20mA signals simultaneously |
| 05701-A-0501 | Multi-Channel Control Card | Suitable for large-scale gas monitoring systems |
| 05701-A-0601 | Smart Control Card | Includes communication functions for remote monitoring |
| 05701-A-0701 | Intrinsically Safe Control Card | Designed for hazardous locations |
| XNX Universal | Universal Gas Detection Controller | Compatible with multiple sensors, highly flexible |
| Sensepoint XCD | Gas Detection Transmitter | Suitable for industrial environments, real-time monitoring |
| 301C Controller | Fixed Gas Detection Controller | Advanced alarm functionalities |
| RAEGuard 2 PID | VOC Gas Detector | High sensitivity PID sensor |
| Touchpoint Plus | Multi-Channel Gas Monitoring System | Suitable for large-scale gas monitoring applications |
Popular Honeywell Models
| Model | Product Name | Key Features |
|---|---|---|
| XNX Universal | Universal Gas Detection Controller | Compatible with multiple gas sensors |
| Sensepoint XCD | Gas Detection Transmitter | Designed for harsh environments |
| 301C Controller | Fixed Gas Detection Controller | Remote monitoring capabilities |
| RAEGuard 2 PID | VOC Gas Detector | Uses a high-sensitivity PID sensor |
| Touchpoint Plus | Multi-Channel Gas Monitoring System | Ideal for industrial gas monitoring |
| FS24X | UV/IR Flame Detector | Designed for high-risk fire detection |
| 705 HT | High-Temperature Gas Detector | Suitable for extreme environments |
| BW Ultra | Portable Multi-Gas Detector | Designed for mobile monitoring |
| BW Clip4 | Maintenance-Free Multi-Gas Detector | Provides continuous operation for two years |
| GasAlert MicroClip | Portable Gas Detector | Ideal for personal safety applications |
FAQ
FAQ (Frequently Asked Questions)
Q1: What types of gases can this product detect?
A1: It supports all gas sensors with a 4-20mA output.
Q2: How is the device installed?
A2: It can be mounted on a DIN rail or panel for easy installation.
Q3: Does this device support remote monitoring?
A3: This model does not support remote monitoring, but models like 05701-A-0601 have communication functions.
Q4: Is this product explosion-proof?
A4: This model is not explosion-proof; it should be used in non-hazardous environments.
Q5: What is the power consumption of this device?
A5: Typical power consumption ranges from 3.25W to 3.75W.
Q6: Will electronic drift affect measurement accuracy?
A6: Electronic drift is minimal, at less than ±2% over six months, ensuring stable performance.
Q7: How often should this device be maintained?
A7: It is recommended to perform calibration and maintenance every 6 to 12 months.
Q8: Does the device support multiple alarm modes?
A8: Yes, it features LED alarm indicators and LCD alarm notifications.
Q9: What is the operating temperature range for this device?
A9: Please refer to the official technical documentation for specific temperature range details.
Q10: Can this device be powered by batteries?
A10: No, it only supports a DC power supply of 18V-32V.
