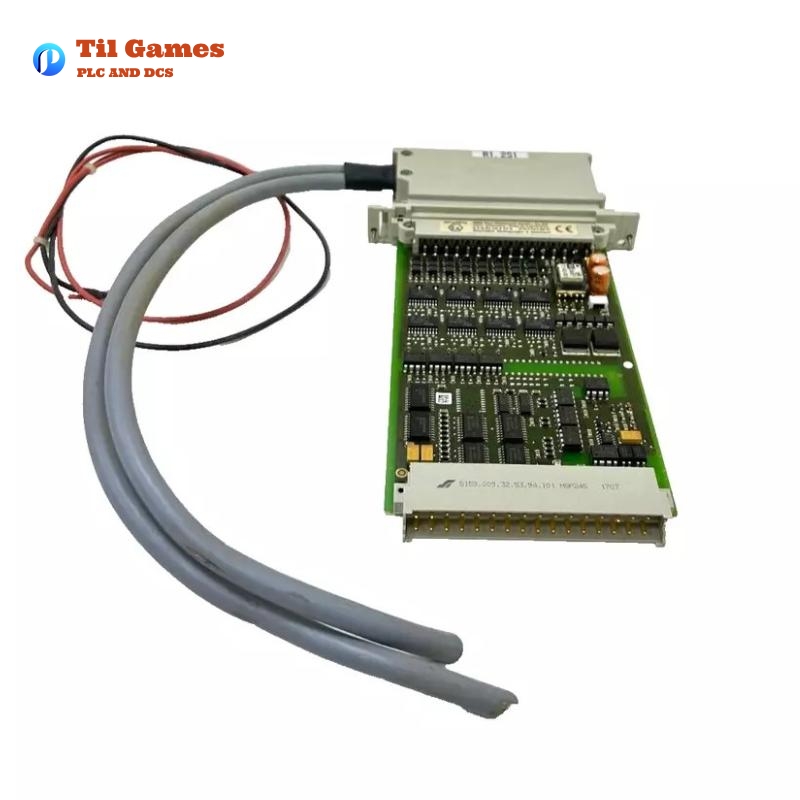

HIMA Z7138/3330/C6/P2 LED Cable Plug
The HIMA Z7138/3330/C6/P2 LED Cable Plug is a high-performance and safety-critical component used in industrial automation systems. Designed as part of HIMA’s F 3330 series, this cable plug provides a reliable connection for safety-related modules, particularly in processes involving resistive and inductive loads. Equipped with integrated safety features, it ensures that systems operate safely by offering isolation and safety shutdown in the event of faults. The LED indicators provide real-time feedback, allowing for easy monitoring of system performance. This component is widely used across various industries, ensuring both safety and functionality in complex industrial systems.
Product Parameters:
| Parameter | Specification |
|---|---|
| Product Type | LED Cable Plug |
| Dimensions (H x W x D) | 4 TE (Standard size) |
| Cable Length | 6 m |
| Shipping Weight | 3 kg |
| Cable Type | LiYY 8 x 0.5 mm² |
| Connection Type | Flat pin (2.8 x 0.8 mm) |
| Current Rating | 500 mA Max |
| Voltage Rating | 24 V DC |
| Operating Voltage | 5 V DC (110 mA), 24 V DC (180 mA) |
| Space Requirement | 4 TE |
| Safety Features | Integrated safety shutdown, safe isolation |
| Max Output Load | 500 mA (resistive or inductive load) |
Product Features:
-
LED Indicators: Provides real-time visual feedback on the operational status of the system, making it easier for operators to monitor and troubleshoot.
-
Safety Shutdown: In the event of a fault, the device features an automatic safety shutdown to protect the system, reducing the risk of further damage.
-
Compact Size: At just 4 TE in size, it is space-efficient and can be easily integrated into dense control panels.
-
Self-Diagnostics: Built-in self-diagnostics ensure the device operates correctly during use, reducing the likelihood of undetected system errors.
-
Versatile Applications: Suitable for both resistive and inductive loads, the Z7138/3330/C6/P2 can be used across various industries that require robust and flexible connectivity solutions.
Product Advantages:
-
Enhanced Safety: With features such as safety shutdown and isolation, the Z7138/3330/C6/P2 offers high protection against electrical faults.
-
Compact and Efficient: The small 4 TE size is ideal for installations with limited space, making it suitable for systems that need to maximize available panel space.
-
Automated Testing: Reduces manual maintenance by automatically testing the output signals, ensuring the system remains operational and safe.
-
Durability: Built to withstand industrial environments, the cable plug offers long-term reliability even in harsh conditions.
-
Ease of Use: LED indicators make it straightforward to monitor the system’s status, minimizing downtime and simplifying troubleshooting efforts.
Applications:
The HIMA Z7138/3330/C6/P2 LED Cable Plug is ideal for use in the following applications:
-
Industrial Automation: Providing safe and reliable connections for output modules in automation systems, ensuring smooth operation.
-
Power Generation: Used in power plants to connect safety-related modules and ensure that the system remains operational in critical environments.
-
Process Control Systems: Facilitates safe and efficient signal communication in industries such as chemicals, manufacturing, and energy production.
-
Machine Safety Systems: Helps to ensure that machinery operates within its safe limits, protecting both operators and equipment.
Recent News Title:
-
“HIMA Z7138/3330/C6/P2 LED Cable Plug: A Reliable Solution for Industrial Automation Safety”
Recommended Models (Same Series or Related):
| Model | Description | Key Features |
|---|---|---|
| HIMA Z7139 | LED cable plug designed for higher current applications | Handles higher currents, ideal for demanding systems |
| HIMA Z7140 | Advanced cable plug with enhanced signal processing capabilities | Faster data processing, improved signal integrity |
| HIMA Z7138-P2 | Compact LED cable plug for two-pole connections | Smaller form factor, suitable for tight spaces |
| HIMA Z7141 | Cable plug designed for sensitive industrial systems | Features superior shielding for EMI protection |
| HIMA Z7100 | General-purpose LED cable plug | Flexible and cost-effective solution for various industries |
| HIMA Z7200 | Ruggedized LED cable plug for extreme environments | Water-resistant, durable construction for harsh conditions |
Popular HIMA Models:
| Model | Description | Key Features |
|---|---|---|
| HIMA F 3300 | 8-fold output module for safety applications | Integrated safety shutdown, up to 500 mA |
| HIMA F 3500 | Compact safety relay for industrial control | Fast response, high reliability |
| HIMA Z7101 | General-purpose LED cable plug | Easy to install, flexible use |
| HIMA F 3400 | I/O module for real-time data processing | Accurate measurements, fast processing |
| HIMA Z7120 | Durable LED cable plug for industrial environments | High insulation, rugged design |
| HIMA Z7200 | Connector designed for critical system applications | Enhanced reliability and fail-safe design |
FAQ
FAQ:
Q1: What is the maximum current rating for the HIMA Z7138/3330/C6/P2 LED cable plug?
A1: The maximum current rating is 500 mA.
Q2: What is the length of the cable supplied with the Z7138/3330/C6/P2?
A2: The cable length is 6 meters.
Q3: Can the Z7138/3330/C6/P2 handle both resistive and inductive loads?
A3: Yes, the Z7138/3330/C6/P2 can handle both resistive and inductive loads up to 500 mA.
Q4: What is the space requirement for the HIMA Z7138/3330/C6/P2 LED cable plug?
A4: The device requires only 4 TE of space.
Q5: Does the HIMA Z7138/3330/C6/P2 include safety features?
A5: Yes, it includes integrated safety shutdown and safe isolation features.
Q6: How does the HIMA Z7138/3330/C6/P2 provide feedback during operation?
A6: It uses LED indicators to provide clear visual feedback on the operational status of the system.
Q7: What is the shipping weight of the HIMA Z7138/3330/C6/P2?
A7: The shipping weight is 3 kg.
Q8: Is the HIMA Z7138/3330/C6/P2 compatible with all HIMA safety-related output modules?
A8: Yes, it is designed for compatibility with HIMA’s F 3330 series and other safety-related modules.
