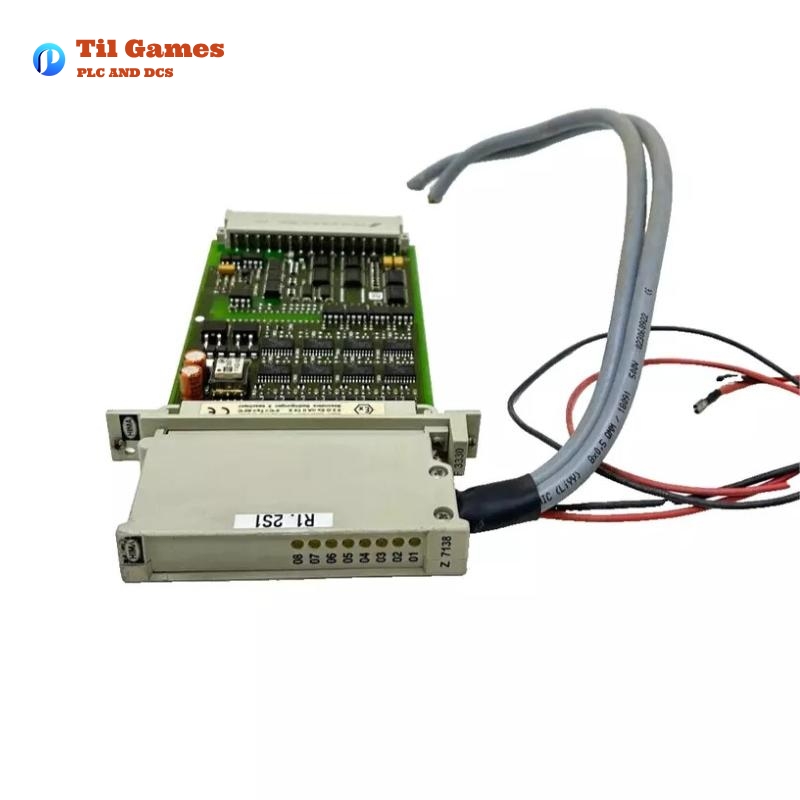

HIMA Z7138/3330/C5 LED Cable Plug
The HIMA Z7138/3330/C5 LED Cable Plug is an essential component designed for safety-critical applications in industrial automation systems. It is part of HIMA’s F 3330 series, offering reliable electrical connection for output modules. The plug is engineered to connect various loads, including resistive and inductive types, with robust safety mechanisms integrated to ensure proper operation. This model also incorporates LED indicators to provide real-time feedback on the system’s status, enhancing safety and ease of troubleshooting.
The Z7138/3330/C5 is compatible with HIMA’s safety-related modules and is used widely in industries requiring high operational integrity and safety, including power generation and industrial automation systems.
Product Parameters:
| Parameter | Specification |
|---|---|
| Product Type | LED Cable Plug |
| Dimensions (H x W x D) | 4 TE (Standard size) |
| Cable Length | 5 m |
| Shipping Weight | 3 kg |
| Cable Type | LiYY 8 x 0.5 mm² |
| Connection Type | Flat pin (2.8 x 0.8 mm) |
| Current Rating | 500 mA Max |
| Voltage Rating | 24 V DC |
| Operating Voltage | 5 V DC (110 mA), 24 V DC (180 mA) |
| Space Requirement | 4 TE |
| Safety Features | Integrated safety shutdown, safe isolation |
| Max Output Load | 500 mA (resistive or inductive load) |
Product Features:
-
LED Indicators: Clear visual feedback to provide operational status at a glance, allowing for quick troubleshooting and ensuring that the system is functioning as intended.
-
Built-in Safety Features: Includes integrated safety shutdowns and safe isolation to protect the system and avoid damage during faults.
-
Compact and Space-Efficient: The cable plug only requires 4 TE of space, which is ideal for installations with limited panel space.
-
Self-Testing Capability: The device undergoes self-diagnostic checks during operation to ensure that the output signals are working properly, minimizing system downtime.
-
Versatile Load Handling: Capable of handling both resistive and inductive loads, providing a wide range of applications.
Product Advantages:
-
Enhanced Safety: The integrated safety shutdown and safe isolation mechanisms are critical in preventing damage in case of a fault, making this product essential for high-reliability systems.
-
Compact Design: The 4 TE size allows it to fit into space-constrained installations, saving valuable space in control panels.
-
Self-Diagnostics: The automatic testing features ensure that the system remains reliable and operational by detecting issues early on.
-
Robust Performance: Built to withstand harsh industrial environments, the Z7138/3330/C5 offers long-lasting reliability and durability.
-
Ease of Use: The LED indicators provide clear visual feedback, reducing the need for manual checks and improving overall operational efficiency.
Applications:
The HIMA Z7138/3330/C5 LED Cable Plug is ideal for use in:
-
Industrial Automation Systems: Used to connect safety-related output modules, ensuring safe and reliable operation.
-
Power Generation: Commonly used in power plants where safety is paramount and reliable performance is required.
-
Process Control Systems: Provides safe and reliable connectivity in chemical, manufacturing, and other process industries.
-
Machine Safety Systems: Ensures machinery operates safely and within its design limits, preventing potential accidents and system failure.
Recent News Title:
-
“HIMA Z7138/3330/C5 LED Cable Plug: Ensuring Safety in Complex Industrial Systems”
Recommended Models (Same Series or Related):
| Model | Description | Key Features |
|---|---|---|
| HIMA Z7139 | Similar LED cable plug designed for higher current applications | Handles higher currents, ideal for demanding systems |
| HIMA Z7140 | Advanced cable plug with faster communication speeds | Enhanced signal integrity, faster data processing |
| HIMA Z7138-P2 | Compact two-pole connection LED cable plug | Smaller footprint for more compact systems |
| HIMA Z7141 | Cable plug for sensitive industrial systems | Superior shielding for EMI protection |
| HIMA Z7100 | General-purpose LED cable plug | Cost-effective, flexible application |
| HIMA Z7200 | Ruggedized cable plug for harsh environments | Water-resistant, durable in extreme conditions |
Popular HIMA Models:
| Model | Description | Key Features |
|---|---|---|
| HIMA F 3300 | 8-fold output module for safety applications | Integrated safety shutdown, up to 500 mA |
| HIMA F 3500 | Compact safety relay for industrial control | Fast response, high reliability |
| HIMA Z7101 | General-purpose LED cable plug | Easy to install, cost-effective |
| HIMA F 3400 | I/O module for real-time data processing | Accurate measurements, fast processing |
| HIMA Z7120 | Durable cable plug for industrial environments | High insulation, rugged design |
| HIMA Z7200 | Connector designed for critical system applications | Enhanced reliability and fail-safe design |
FAQ
FAQ:
Q1: What is the maximum current rating for the HIMA Z7138/3330/C5 LED cable plug?
A1: The maximum current rating is 500 mA.
Q2: What is the length of the cable supplied with the Z7138/3330/C5?
A2: The cable length is 5 meters.
Q3: What types of loads can the Z7138/3330/C5 handle?
A3: It can handle both resistive and inductive loads, as well as lamp connections up to 4 W.
Q4: What is the space requirement for installing the HIMA Z7138/3330/C5 LED cable plug?
A4: It requires only 4 TE of space.
Q5: Does the HIMA Z7138/3330/C5 include safety features?
A5: Yes, it includes integrated safety shutdown and safe isolation features.
Q6: How does the HIMA Z7138/3330/C5 provide feedback during operation?
A6: The device uses LED indicators to provide visual feedback regarding its operational status.
Q7: What is the shipping weight of the HIMA Z7138/3330/C5?
A7: The shipping weight is 3 kg.
Q8: Is the HIMA Z7138/3330/C5 compatible with all HIMA safety-related output modules?
A8: Yes, it is designed for compatibility with HIMA’s F 3330 series and other safety-related modules.
