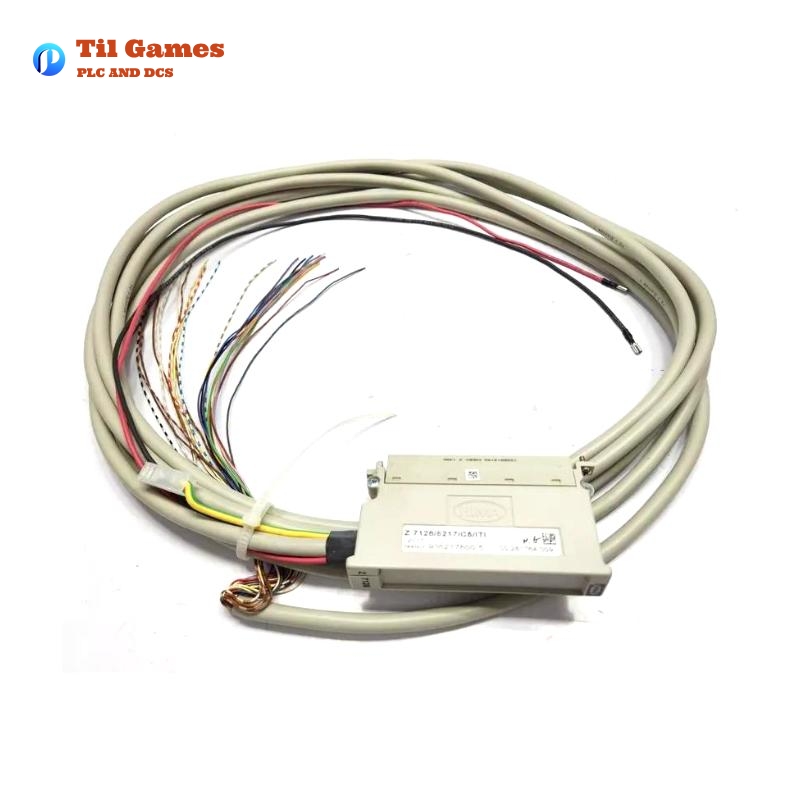

HIMA Z7128/6217/C5/ITI Cable Plug – Detailed Overview
The HIMA Z7128/6217/C5/ITI Cable Plug is a critical component in industrial control systems, designed to connect transmitters to the F6217 8-channel analog input module. This cable plug is specifically designed for two-wire systems, providing reliable signal transmission while supplying power to the connected transmitters. Here is a comprehensive breakdown of its features, specifications, advantages, applications, and more.
Product Overview
The Z7128/6217/C5/ITI Cable Plug offers an effective solution for connecting various field devices to control systems. It ensures a secure and safe connection while supporting safety-related applications up to SIL 3 according to IEC 61508 standards. The cable plug provides isolated connections, minimizing signal interference, and is equipped with a power supply suitable for two-wire systems.
This product is an integral part of HIMA’s modular system, allowing seamless integration with the F6217 8-channel analog input module for accurate and safe data acquisition.
Product Features
-
Transmitter Power Supply: Provides reliable power to two-wire transmitters, ensuring consistent operation.
-
Safety Standards Compliance: Designed to meet SIL 3 safety requirements, ensuring reliability in safety-critical environments.
-
Signal Isolation: The plug offers safe isolation for both current and voltage inputs, preventing signal interference.
-
Durability: Built to withstand industrial environments, ensuring long-lasting performance in harsh conditions.
-
User-Friendly Installation: Marked leads and clear instructions ensure easy connection to the corresponding devices.
Product Advantages
-
Enhanced Safety: Supports high safety standards (SIL 3), ensuring the system’s reliability in mission-critical applications.
-
Compact and Efficient Design: Despite its comprehensive functionality, the Z7128/6217/C5/ITI cable plug remains compact and easy to install.
-
Minimal Signal Interference: The cable plug effectively reduces signal noise, ensuring accurate readings and stable operation.
-
High Compatibility: Compatible with F6217 and similar HIMA input modules, offering versatility in industrial automation systems.
-
Low Maintenance: The plug requires no maintenance under normal operation, ensuring cost savings and minimal downtime.
Product Specifications
| Parameter | Description |
|---|---|
| Type | Cable Plug with Transmitter Supply |
| Compatibility | HIMA F6217 8-Channel Analog Input Module |
| Cable Length | 5 meters |
| Weight | 3 kg |
| Space Requirement | 4 TE |
| Operating Voltage | 24 VDC (Typical) |
| Connector Pin Size | 2.8 x 0.8 mm² |
| Dimensions | 120 mm x 26 mm |
| Max Input Voltage | 7.5 V |
| Max Input Current | 30 mA |
| Input Resistance | 100 kΩ |
| Resolution | 12-bit |
| Safety Time | <450 ms |
| Operating Temperature | -10°C to +60°C |
| Cable Type | LiYCY 24 x 0.14 mm² (screened) |
| Lead Length | 750 mm |
Product Applications
-
Industrial Automation: Essential for control systems in industries such as oil and gas, chemical processing, and manufacturing, where reliability and safety are paramount.
-
Measurement Systems: Used in systems where accurate signal transmission from field devices (e.g., sensors) is critical for process monitoring and control.
-
Redundant Systems: Suitable for applications requiring redundancy in safety-critical systems, ensuring continuous operation even during faults.
Related Models in the Same Series
| Model Number | Description | Key Features |
|---|---|---|
| Z7127 | Cable Plug for Current/Voltage Inputs | Suitable for general current and voltage input systems |
| F6217 | 8-Channel Analog Input Module | Interfaces with the Z7128/6217/C5/ITI Cable Plug |
| Z7130 | Cable Plug for Voltage Input Systems | Designed for voltage input systems |
| Z7131 | Cable Plug for Current Input Systems | Optimized for connecting current inputs |
| Z7129 | Cable Plug for Transmitter Power Supply | Designed for transmitter-powered systems |
| Z7132 | Redundant Cable Plug | Suitable for redundant configurations in critical systems |
Popular HIMA Models
| Model Number | Description | Key Features |
|---|---|---|
| F6217 | 8-Channel Analog Input Module | Safety-rated, 12-bit resolution, supports SIL 3 |
| F6220 | 4-Channel Analog Input Module | Compact, cost-effective, with SIL 3 safety rating |
| F6300 | Digital Input Module | High-speed digital input for real-time process control |
| F6500 | Safety Relay Module | Used for emergency shutdown systems |
| F6720 | Signal Converter | Converts input signals for use in HIMA systems |
| F6700 | Redundant Power Supply Module | Ensures reliable operation with backup power |
FAQ
FAQ
1. What is the primary function of the Z7128/6217/C5/ITI cable plug?
-
The Z7128/6217/C5/ITI cable plug provides reliable connection and power supply to two-wire transmitters, ensuring safe and accurate signal transmission to the F6217 input module.
2. Can this cable plug be used with other HIMA modules?
-
Yes, the Z7128/6217/C5/ITI is compatible with other HIMA modules that require transmitter power and signal isolation, specifically the F6217 series.
3. How long is the cable that comes with the plug?
-
The cable is 5 meters in length, providing flexibility in installation and connectivity.
4. Is the Z7128/6217/C5/ITI suitable for hazardous environments?
-
The Z7128/6217/C5/ITI is designed for use in industrial environments, but it is not specifically rated for hazardous or explosive environments. Additional certifications would be required for such applications.
5. What safety standards does the cable plug comply with?
-
It complies with SIL 3 according to IEC 61508, ensuring its reliability in safety-critical applications.
6. What is the maximum operating temperature of the Z7128/6217/C5/ITI?
-
The maximum operating temperature is +60°C.
7. How is the installation of the Z7128/6217/C5/ITI cable plug performed?
-
The cable plug is designed for easy installation with clearly marked leads and straightforward connection to the F6217 module.
8. Does the Z7128/6217/C5/ITI require regular maintenance?
-
No, the cable plug does not require regular maintenance. However, if it fails, it must be replaced.
