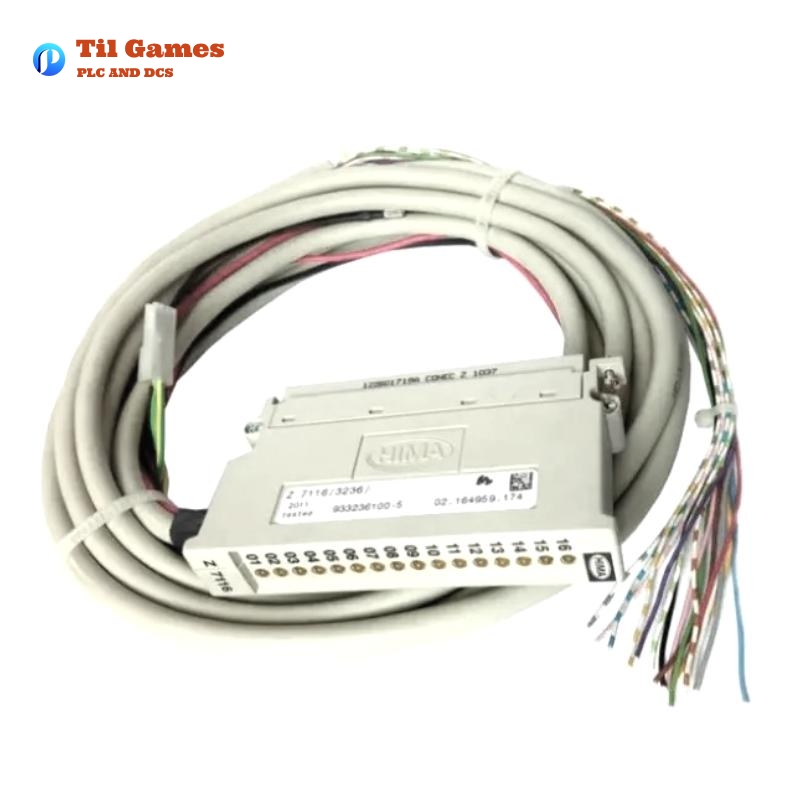

The HIMA Z7116/3236/C5 LED Cable Plug is a specialized component designed for use in safety-related systems. It is part of the F 3236 series, which is known for its reliability and robust performance in industrial environments. This cable plug is specifically designed to interface with the F 3236 16-fold input module, ensuring secure and efficient signal transmission.
Product Parameters
| Parameter | Value |
|---|---|
| Cable Length | 5 m |
| Shipping Weight | 3 kg |
| Operating Voltage | 24 V DC |
| Current Consumption | 200 mA |
| Switching Time | 8 ms (typical) |
| Space Requirement | 4 TE |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Protection Class | IP20 |
Product Features
- Safety Isolation: The module provides safety isolation, ensuring that signals are transmitted without interference, which is crucial for safety-related applications.
- Automatic Testing: The module is automatically tested for correct function during operation, including cross-talking of inputs, filter capacitor functions, and overall module functionality.
- Versatile Inputs: Supports both 1-signal inputs (6 mA) and mechanical contacts (24 V), making it adaptable to various industrial applications.
- Compact Design: With a space requirement of only 4 TE, the module is designed to fit into tight spaces without compromising performance.
- LED Indicators: The LED cable plug provides visual status indicators, making it easier to monitor the system’s operation.
Product Advantages
- High Reliability: Designed for safety-related systems, the module ensures high reliability and consistent performance.
- Easy Integration: The compact design and versatile inputs make it easy to integrate into existing systems.
- Enhanced Safety: Safety isolation and automatic testing features enhance the overall safety of the system.
- Durability: Built to withstand harsh industrial environments, ensuring long-term durability.
Product Applications
The HIMA Z7116/3236/C5 LED Cable Plug is ideal for use in various industrial applications, including:
- Process Automation: Ensures reliable signal transmission in automated processes.
- Safety Systems: Used in safety-related systems where reliable signal isolation is crucial.
- Industrial Control Systems: Provides secure and efficient signal transmission in control systems.
- Power Plants: Ensures safe and reliable operation in power generation facilities.
Latest News Headline
“HIMA Introduces Enhanced Safety Features in F 3236 Series for Industrial Applications”
Recommended Related Models
| Model Number | Description | Key Parameters |
|---|---|---|
| F 3236/9912 | 16-fold input module | 24 V DC, 200 mA, 4 TE |
| F 3237/9913 | 32-fold input module | 24 V DC, 400 mA, 8 TE |
| F 3238/9914 | 8-fold input module | 24 V DC, 100 mA, 2 TE |
| F 3239/9915 | 16-fold output module | 24 V DC, 200 mA, 4 TE |
| F 3240/9916 | 32-fold output module | 24 V DC, 400 mA, 8 TE |
| F 3241/9917 | 8-fold output module | 24 V DC, 100 mA, 2 TE |
Popular HIMA Models
| Model Number | Description | Key Parameters |
|---|---|---|
| HIMax | Safety Controller | 24 V DC, 500 mA, 16 TE |
| HIMatrix | Modular Safety System | 24 V DC, 1 A, 32 TE |
| HIMatrix F35 | Compact Safety Controller | 24 V DC, 300 mA, 8 TE |
| HIMatrix F30 | High-Performance Safety Controller | 24 V DC, 600 mA, 16 TE |
| HIMatrix F20 | Basic Safety Controller | 24 V DC, 200 mA, 4 TE |
| HIMatrix F10 | Entry-Level Safety Controller | 24 V DC, 100 mA, 2 TE |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the maximum cable length supported by the HIMA Z7116/3236/C5 LED Cable Plug?
A1: The maximum cable length supported is 5 meters.
Q2: What is the shipping weight of the HIMA Z7116/3236/C5 LED Cable Plug?
A2: The shipping weight is 3 kg.
Q3: Can the HIMA Z7116/3236/C5 LED Cable Plug be used in high-temperature environments?
A3: Yes, it can operate in temperatures ranging from -20°C to +60°C.
Q4: Does the HIMA Z7116/3236/C5 LED Cable Plug support both 1-signal and mechanical contact inputs?
A4: Yes, it supports both 1-signal inputs (6 mA) and mechanical contacts (24 V).
Q5: What is the protection class of the HIMA Z7116/3236/C5 LED Cable Plug?
A5: The protection class is IP20.
Q6: How does the automatic testing feature work in the HIMA Z7116/3236/C5 LED Cable Plug?
A6: The module automatically tests for correct function during operation, including cross-talking of inputs, filter capacitor functions, and overall module functionality.
