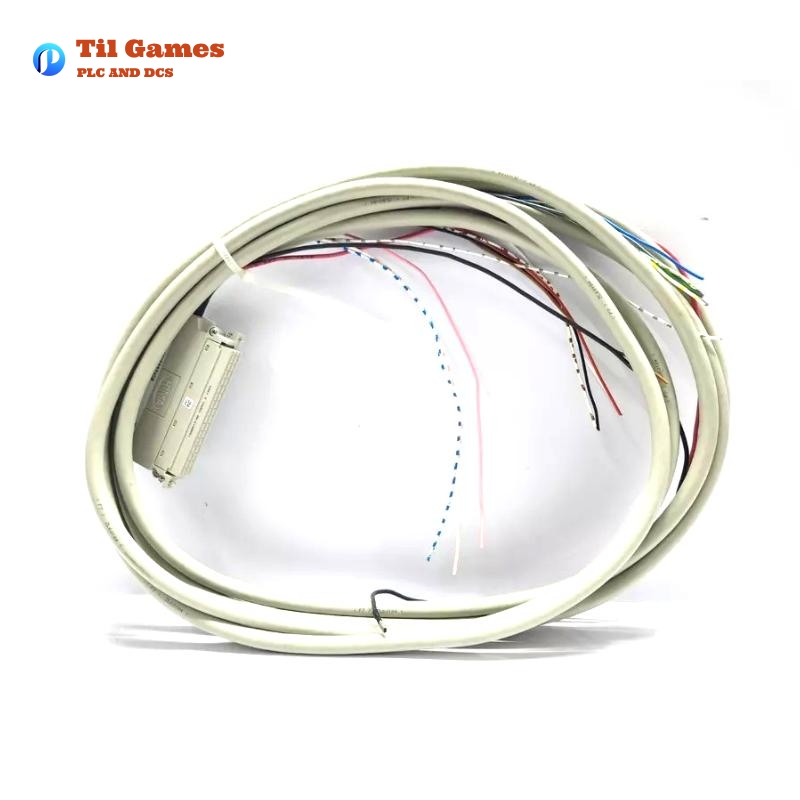

HIMA Z7108/3237/C8 LED Cable Plug

HIMA Z7108/3237/C8 LED Cable Plug

Manufacturer:HIMA

Product Number:Z7108/3237/C8

Product Type:LED Cable Plug

Origin:Germany

Cable Length:8 m

Shipping Weight:3 kg

Views:21

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/Z7108-3237-C8-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/Z7108-3237-C8-2-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/Z7108-3237-C8-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/Z7108-3237-C8-4-1.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

The HIMA Z7108/3237/C8 LED Cable Plug is a specialized component designed for use with the F 3237 input module, which is a safety-related module used in industrial automation systems. This cable plug is specifically engineered to connect safety-related proximity switches, proximity switches according to DIN 19234 (NAMUR), and resistor-wired sensors. It ensures the monitoring of lines for short-circuits and line breaks, making it an essential component in safety-critical applications.

Product Parameters

Parameter Specification
Cable Length 8 m
Shipping Weight 3 kg
Operating Voltage 8.2 V
Line Impedance ≤ 50 Ohm (according to DIN 19234)
Line Length ≤ 1000 m (with 0.5 mm² cross-section)
Switching Time Approx. 10 ms
Operating Current (0 signal) 0.35 ≤ I_E ≤ 1.2 mA
Operating Current (1 signal) 2.1 ≤ I_E ≤ 6.0 mA
Wire Break Detection ≤ 0.28 mA
Short Circuit Detection ≥ 6.5 mA
Shunt Resistor 681 Ohm; 1%; 0.25 W
Space Requirement 4 TE
Operating Data 5 V: 90 mA; 24 V: 170 mA

Product Features

  • Safety Compliance: The Z7108/3237/C8 is designed to meet the stringent safety requirements of industrial environments, ensuring reliable operation in safety-critical systems.
  • Automatic Testing: The module undergoes complete automatic testing during operation, including switch on/off capability, crosstalk of input circuits, input filter function, and correct module function.
  • LED Indicators: The cable plug features LED indicators for each channel, providing visual feedback on the status of the connected sensors.
  • Redundant Connection: Supports redundant connections for proximity switches, enhancing system reliability.
  • Line Monitoring: Continuously monitors for short-circuits and line breaks, ensuring immediate detection of faults.

Product Advantages

  • High Reliability: Designed for use in safety-related applications, the Z7108/3237/C8 offers high reliability and fault tolerance.
  • Easy Integration: The cable plug is compatible with the F 3237 input module, making it easy to integrate into existing systems.
  • Durability: Built to withstand harsh industrial environments, ensuring long-term performance.
  • Flexibility: Supports a wide range of proximity switches and sensors, providing flexibility in system design.

Product Applications

The HIMA Z7108/3237/C8 LED Cable Plug is widely used in industries where safety is paramount, including:

  • Chemical Plants: For monitoring safety-related sensors in hazardous environments.
  • Oil and Gas: Ensuring the safe operation of equipment in potentially explosive atmospheres.
  • Manufacturing: For automated production lines where safety and reliability are critical.
  • Power Generation: Monitoring critical systems in power plants to prevent accidents.
