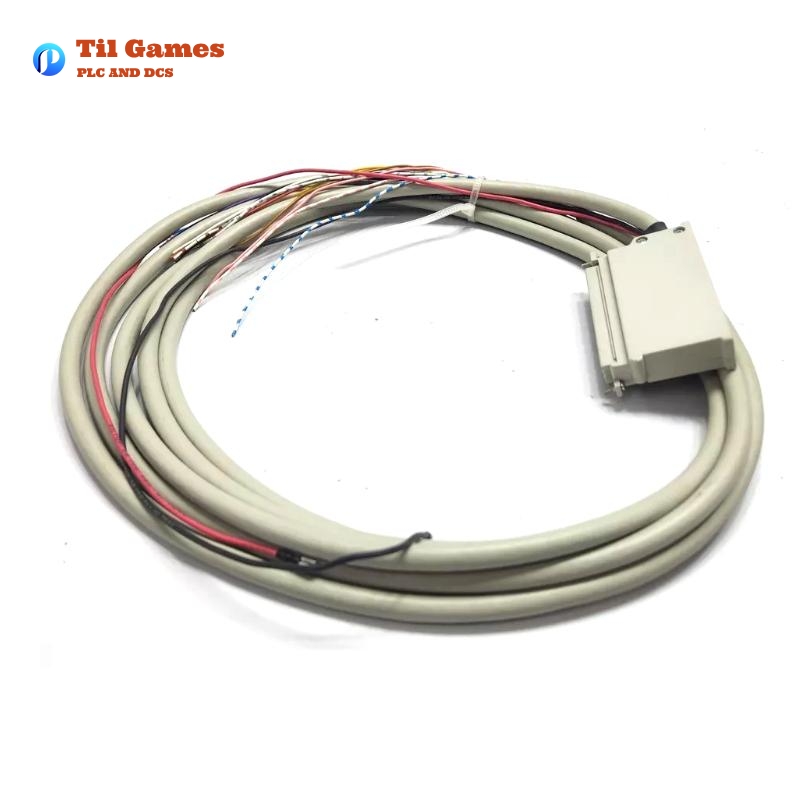

The HIMA Z7108/3237/C5 LED Cable Plug is a specialized component designed for use with the F 3237 safety-related input module. This cable plug is integral to the connection of safety-related proximity switches, proximity switches according to DIN 19234 (NAMUR), and resistor-wired sensors. It ensures the monitoring of lines for short-circuits and line breaks, making it a critical component in safety-critical applications.
Product Parameters
Parameter | Specification |
---|---|
Cable Length | 5 m |
Shipping Weight | 3 kg |
Operating Voltage | 8.2 V |
Line Impedance | ≤ 50 Ohm (according to DIN 19234) |
Line Length | ≤ 1000 m (with 0.5 mm² cross-section) |
Supply Voltage (U_S) | 8.2 V |
Shunt Resistance (R*) | 681 Ohm; 1%; 0.25 W |
Space Requirement | 4 TE |
Operating Current | 5 V: 90 mA; 24 V: 170 mA |
Product Features
- Safety Compliance: The cable plug is designed to meet the stringent requirements of safety-related applications, ensuring reliable operation in critical environments.
- Line Monitoring: It provides continuous monitoring of the sensor lines for short-circuits and line breaks, enhancing system safety.
- LED Indication: The LED indicators on the cable plug provide visual feedback on the status of each channel, aiding in quick diagnostics.
- Redundant Connection: Supports redundant connections for proximity switches, ensuring higher reliability and fault tolerance.
- Compatibility: Compatible with a wide range of proximity switches, including those conforming to DIN 19234 (NAMUR) standards.
Product Advantages
- Enhanced Safety: The cable plug’s ability to monitor and detect faults in real-time significantly enhances the safety of the overall system.
- Reliability: Built to withstand harsh industrial environments, ensuring long-term reliability and performance.
- Ease of Installation: The plug-and-play design simplifies installation and reduces downtime during setup.
- Versatility: Suitable for various industrial applications, including manufacturing, process control, and automation.
Product Applications
The HIMA Z7108/3237/C5 LED Cable Plug is widely used in industries where safety and reliability are paramount. Key applications include:
- Industrial Automation: Ensuring the safe operation of automated machinery and equipment.
- Process Control: Monitoring critical processes in chemical, petrochemical, and pharmaceutical industries.
- Manufacturing: Enhancing the safety of production lines and assembly systems.
- Energy Sector: Used in power plants and renewable energy systems for safety monitoring.
