Product Overview

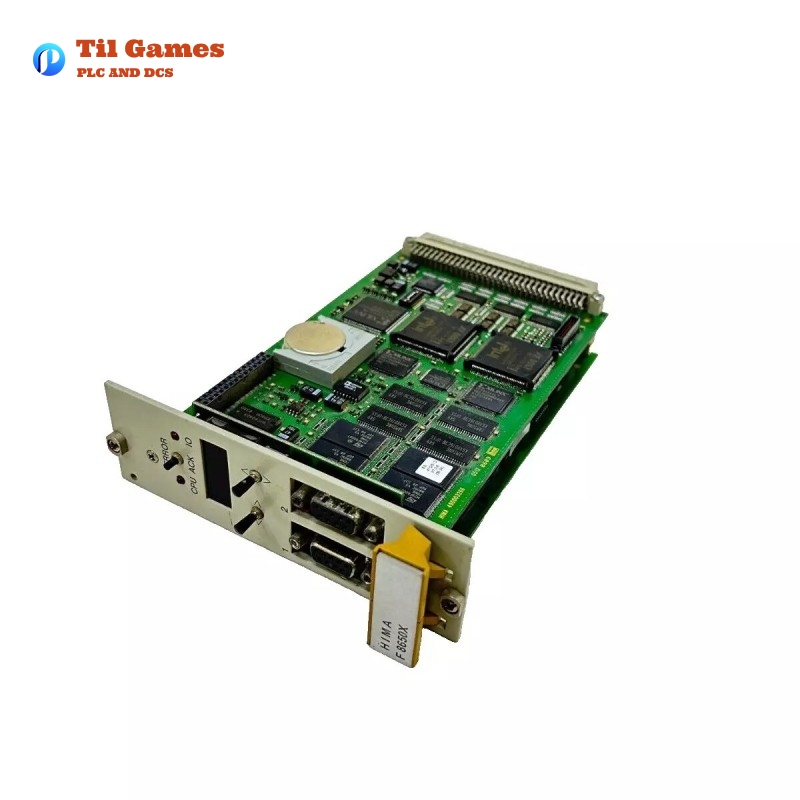

The HIMA F8650X is a central module designed for use in the PES H51q-MS, -HS, and -HRS systems. It is a safety-related component, compliant with SIL 3 according to IEC 61508, making it suitable for high-integrity safety applications. The module features two clock-synchronized microprocessors for redundancy and fault tolerance, ensuring reliable performance in critical environments.
Product Specifications
| Parameter | Details |
|---|---|
| Microprocessors | INTEL 386EX, 32-bit, dual-core |
| Clock Frequency | 25 MHz |
| Memory | Flash-EPROM: 1 MB (OS), 1 MB (User Program), SRAM: 1 MB (Data) |
| Interfaces | 2 x RS 485 (electrically isolated) |
| Diagnostic Display | 4-digit matrix display with error LEDs and toggle switches |
| Shutdown on Fault | Safety-related watchdog, 24 V output (500 mA, short-circuit proof) |
| Construction | 2 European standard PCBs + 1 PCB for diagnostic display |
| Space Requirement | 8 SU |
| Operating Voltage | 5 V / 2 A |
| Dimensions | 257 x 114 x 30 mm |
| Weight | 1.5 kg |
| Operating Temperature | Not specified (battery lifetime: 1000 days at 25°C, 200 days at 60°C) |
Product Features
- Dual Microprocessors: Two synchronized INTEL 386EX processors for redundancy and fault detection.
- High Safety Integrity: Compliant with SIL 3 (IEC 61508) for critical safety applications.
- Flexible Communication: Supports RS 485 and Ethernet (via F 8627X module) for integration into diverse networks.
- Diagnostic Capabilities: Four-digit display and LEDs for real-time error monitoring and troubleshooting.
- Robust Design: Electrically isolated interfaces and short-circuit-proof outputs.
- Battery Backup: Long-life lithium battery (CR 2477N) with replaceable design.
Product Advantages
- Reliability: Redundant architecture ensures continuous operation even in fault conditions.
- Versatility: Compatible with multiple communication protocols (e.g., Modbus TCP, safeethernet).
- Ease of Maintenance: Diagnostic tools and replaceable battery simplify upkeep.
- Scalability: Supports up to 99 bus stations in Ethernet networks (with OS BS41q/51q V7.0-8).
- Safety Compliance: Meets stringent SIL 3 requirements for industrial safety systems.
Product Applications
- Process Industries: Oil & gas, chemical plants, and power generation for safety shutdown systems.
- Manufacturing: Machine safety and automation control.
- Transportation: Railway signaling and safety-critical infrastructure.
- Energy: Wind turbine control and grid management.
Latest News Headline
“HIMA F8650X Central Module Enhances Safety Systems with SIL 3 Compliance and Advanced Diagnostics for Critical Infrastructure”
Recommended Related Models
| Model | Description | Key Parameters |
|---|---|---|
| F 8627X | Communication module for Ethernet integration (Modbus TCP, safeethernet). | Interfaces: 2 x Ethernet, Dimensions: 257 x 114 x 30 mm, Weight: 1.5 kg |
| F 8650 | Predecessor to F 8650X, requires fan concept update for compatibility. | Similar to F 8650X but older OS support. |
| F 8651X | Expanded I/O module for HIQuad systems. | Digital/Analog I/O, Dimensions: 257 x 114 x 30 mm, Weight: 1.5 kg |
| F 8660X | High-performance central module with extended memory. | Flash-EPROM: 2 MB, SRAM: 2 MB, Dimensions: 257 x 114 x 30 mm, Weight: 1.5 kg |
| F 8630X | Input/output module for safety systems. | 16-channel digital input, Dimensions: 257 x 114 x 30 mm, Weight: 1.5 kg |
| F 8640X | Analog I/O module for HIQuad systems. | 8-channel analog input/output, Dimensions: 257 x 114 x 30 mm, Weight: 1.5 kg |
Popular HIMA Models
| Model | Description | Key Parameters |
|---|---|---|
| H51q | Safety controller for high-integrity applications. | SIL 3, Dimensions: Varies by module, Weight: Varies |
| H41q | Compact safety controller for modular systems. | SIL 3, Dimensions: Varies by module, Weight: Varies |
| F 35 | Programmable safety system for process industries. | SIL 3, Dimensions: 200 x 100 x 50 mm, Weight: 1.2 kg |
| F 3 DI | Digital input module for safety systems. | 16-channel, Dimensions: 257 x 114 x 30 mm, Weight: 1.5 kg |
| F 3 DO | Digital output module for safety systems. | 8-channel, Dimensions: 257 x 114 x 30 mm, Weight: 1.5 kg |
| F 3 AI | Analog input module for safety systems. | 4-channel, Dimensions: 257 x 114 x 30 mm, Weight: 1.5 kg |
FAQ
FAQ
Q1: What is the operating temperature range for the F 8650X?
A1: The module’s battery lifetime is specified for 25°C (1000 days) and 60°C (200 days), but the full operating range is not explicitly stated in the datasheet.
Q2: How do I set the bus station number?
A2: Configure switches S1-1 to S1-7 for station numbers 1–31 (RS 485) or 1–99 (Ethernet, with S1-6/7).
Q3: What is the transmission rate for RS 485?
A3: Set via S1-8: ON = 9600 bps, OFF = 57600 bps.
Q4: How often should the buffer battery be replaced?
A4: Replace every 6 years or when “BATI” is displayed (within 3 months). Use CR 2477N (HIMA P/N 44 0000018).
Q5: Can the F 8650X be upgraded from an F 8650?
A5: Yes, but the fan concept must also be updated to ensure proper cooling.
Q6: What diagnostic tools are available?
A6: Four-digit display, error LEDs (CPU/IO), toggle switches for details, and ACK button to reset errors.
Q7: Is the module hot-swappable?
A7: No. Follow the ejection procedure (loosen screws, push lever, remove quickly) to avoid system faults.
Q8: What communication protocols are supported?
A8: RS 485 (native), Ethernet protocols (Modbus TCP, safeethernet) via F 8627X module.
