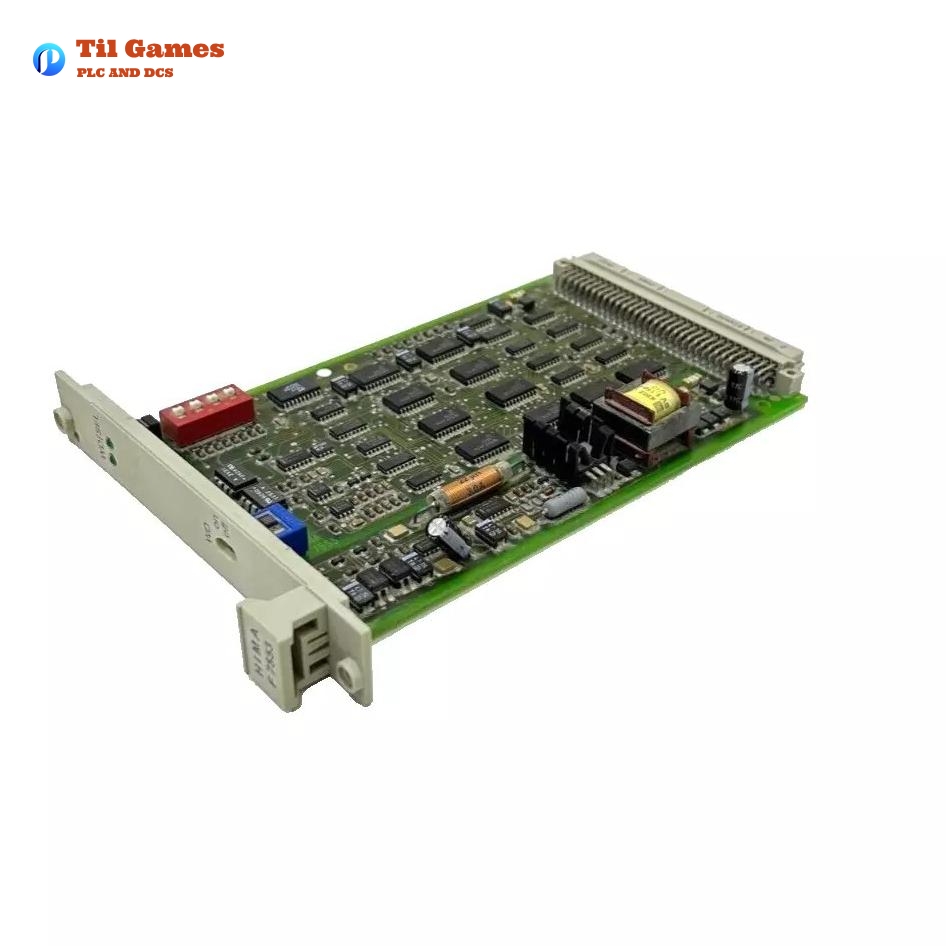

HIMA F7553 Coupling Module

HIMA F7553 Coupling Module

Manufacturer:HIMA

Product Number:F7553

Product Type:Coupling Module

Origin:Germany

Space Requirement:4 TE

Weight: 0.14 kg

Views:4

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/04/F7553-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/F7553-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/F7553-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/F7553-4.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

HIMA F7553 Coupling Module Overview

The HIMA F7553 is a coupling module used in the B 9302 assembly kit, enabling seamless integration within the HIMA PES (Programmable Electronic System) architecture. This module plays a crucial role in ensuring reliable communication between I/O modules in the system by monitoring and transmitting critical status signals.


Technical Specifications

Parameter Value
Product Type Coupling Module
Space Requirement 4 TE
Weight 0.14 kg
Operating Voltage (5V DC) 600 mA
Operating Voltage (24V DC) 750 mA
Watchdog Signal Control Yes (via shrouded switch)
LED Indicators WD (Watchdog), SEL (IO access)
Automatic Test Function Yes (during operation)

Space Requirement: The module requires 4 terminal blocks (TE) on the DIN rail, ensuring minimal footprint in installations.


Key Features and Advantages

  • Integrated Watchdog Function: The F7553 provides a built-in watchdog to monitor the I/O module health, and the status is clearly indicated by LEDs on the front panel.

  • Seamless System Integration: This module ensures that the I/O subracks are connected without the need to trigger a system emergency stop during replacement, providing high operational uptime.

  • Operational Flexibility: The module allows configuration of I/O bus numbers and subrack settings via dip switches (S1.1 to S1.4), allowing easy integration into various system configurations.

  • Reliable Communication: It ensures that communication between the central module and connected I/O modules is continuously monitored, with automatic operational testing.

  • Efficient Monitoring: The 5V supply to the I/O subrack is continuously monitored, sending status signals to the central system for effective fault detection.


Applications

The HIMA F7553 coupling module is primarily used in industrial automation systems, especially in safety-critical applications where reliability is paramount. It is typically found in configurations where multiple I/O modules are interconnected in a fail-safe system, providing continuous monitoring and uninterrupted communication.

  • Industrial Automation: It supports complex I/O systems, often in safety-critical environments.

  • Safety Applications: Perfect for systems requiring fault-tolerant operations, such as process control systems in chemical plants or power stations.


Related Models in the Same Series

Model Description Space Requirement Weight
F 8621 Communication module, left CPU 4 TE 0.15 kg
F 8625 Ethernet module, left CPU 4 TE 0.16 kg
F 8626 Profibus-DP module, left CPU 4 TE 0.17 kg
F 8625x Ethernet module, right CPU 4 TE 0.16 kg
F 8621x Communication module, right CPU 4 TE 0.15 kg
F 7553 Coupling module I/O bus for B 9302 4 TE 0.14 kg

Popular HIMA Models

Model Description Space Requirement Weight
F 3235 Digital (bool) testable input module 8 TE 0.25 kg
F 3237 Testable input module for proximity switches 8 TE 0.28 kg
F 3330 Digital (bool) testable output module 4 TE 0.32 kg
F 3334 Digital (bool) output module, 2A (48W) 4 TE 0.33 kg
F 6213 Analog (word) testable input module 8 TE 0.35 kg
F 6214 Analog (word) input module, for transmitter 8 TE 0.37 kg
FAQ

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the HIMA F7553 Coupling Module?

  • A1: The primary function is to ensure reliable communication between I/O modules and the central control system, while continuously monitoring and testing the I/O subrack.

Q2: How does the HIMA F7553 integrate with other HIMA modules?

  • A2: It works as part of the I/O communication system by linking the I/O subracks to the central system without causing system downtime during maintenance or changes.

Q3: What type of LED indicators are used in the HIMA F7553?

  • A3: The F7553 uses two LED indicators: one for the watchdog signal (WD) and another for access to the I/O modules (SEL).

Q4: Can the F7553 module be replaced without shutting down the system?

  • A4: Yes, the F7553 can be replaced without triggering a system emergency-off, thanks to its ability to disable the watchdog signal during maintenance.

Q5: What is the space requirement for the F7553 module?

  • A5: The F7553 module requires 4 terminal blocks (TE) on a DIN rail.

Q6: What is the power consumption of the F7553 module?

  • A6: The module operates at 600 mA on a 5V DC supply and 750 mA on a 24V DC supply.

Q7: In which industries can the HIMA F7553 Coupling Module be used?

  • A7: It is commonly used in industrial automation and safety-critical applications, such as chemical plants, power stations, and process control systems.

Q8: Is there any automatic testing feature available with the HIMA F7553?

  • A8: Yes, the module is automatically tested during operation to ensure reliable performance and fault detection.
