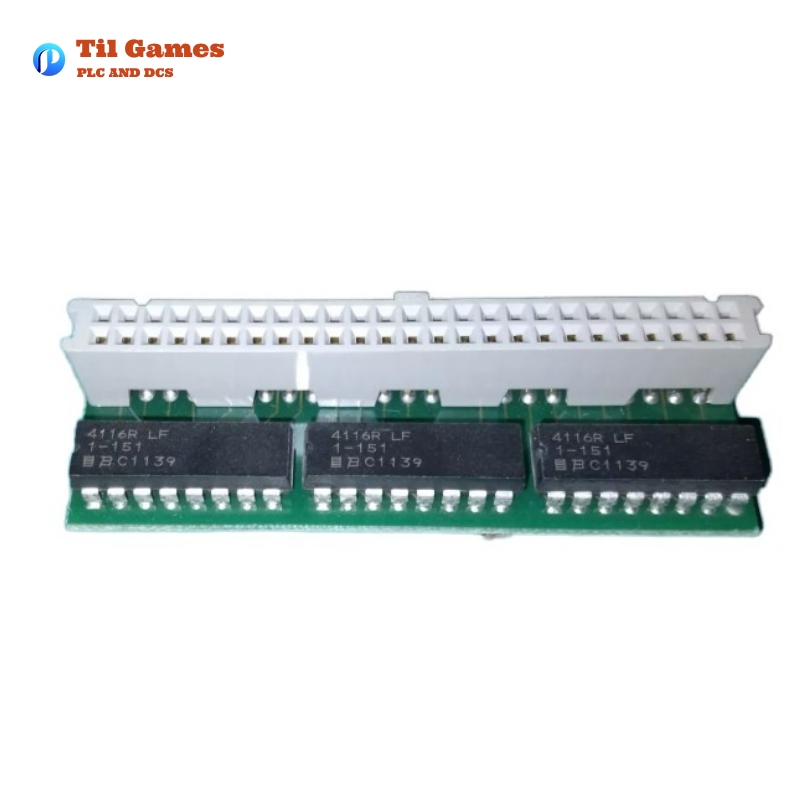

HIMA F7546 I/O Bus Coupling Module

HIMA F7546 I/O Bus Coupling Module

Manufacturer:HIMA

Product Number:F7546

Product Type:I/O Bus Coupling Module

Origin:Germany

Dimensions:100 x 50 x 20 mm

Weight:0.56 kg

Views:4

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/04/F7546-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/F7546-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/F7546-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/F7546-4.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview

The HIMA F7546 I/O Bus Coupling Module is designed to terminate the I/O bus in the HIMA PES system. It plays a critical role in connecting different subracks to ensure reliable data transfer and redundancy in industrial automation systems. The module ensures the seamless operation of the system, even during faults, by managing the safe shutdown of related modules. It is a key component for facilitating communication between different central devices and I/O subracks in redundant configurations.


Technical Parameters

Parameter Specification
Module Dimensions 100 x 50 x 20 mm
Weight 0.56 kg
Input Voltage 24 V DC
Output Voltage 24 V DC
Temperature Range 0°C to +60°C
Storage Temperature -40°C to +85°C
Power Consumption Approx. 1.5 W
Interface Type RS-485
Redundancy Supported

Key Features

  • Redundant I/O Bus Connection: Ensures continuous data transmission by maintaining redundancy in communication paths between central modules and I/O subracks.

  • High Availability: The module supports high availability setups, ensuring that the system continues to function even if one path fails.

  • Safety-Related Shutdown: It integrates with the safety shutdown mechanisms, ensuring that if a failure occurs, the affected modules are safely switched off without affecting the entire system.

  • Robust Communication: Offers RS-485 interface for reliable and secure data transmission across the bus.

  • Compact Design: With a small footprint of 100 x 50 x 20 mm and a weight of just 0.56 kg, it is ideal for tight installations in control systems.


Advantages

  • Reliability: The module ensures that even if one part of the bus fails, the system can still function properly by maintaining the integrity of the communication.

  • Scalability: Supports systems of varying sizes, from smaller setups to more complex, multi-module configurations.

  • Ease of Installation: The module is designed for quick integration with existing HIMA systems without requiring significant reconfiguration or downtime.

  • Redundancy Support: Ensures that critical data connections are maintained even in the event of a failure, enhancing the reliability of the entire system.

  • Compliance with Safety Standards: The module meets stringent safety requirements for industrial control systems.


Applications

  • Industrial Automation: Used in various industrial automation systems where reliable and redundant data communication between different I/O subracks is essential.

  • Process Control: Critical in applications requiring real-time data from multiple sensors and actuators.

  • Safety Systems: Integrated into safety-critical systems to ensure the integrity and shutdown of I/O modules in case of failure.


Latest Reports and Updates

The latest reports on the F7546 I/O Bus Coupling Module have focused on its enhanced performance in redundant industrial systems and safety-critical applications. These reports highlight its effectiveness in maintaining operational integrity during fault conditions.


Related Models

Below are six related models from the HIMA PES system:

Model Description Key Features
F 7553 Coupling Module for I/O Bus Provides redundancy and ensures system stability
F 8625 Communication Module (Ethernet) Used for data transfer via Ethernet
F 8626 Communication Module (Profibus-DP) Interfaces with Profibus-DP communication systems
F 8650 Central Module (Redundant) Central control unit for redundant systems
F 7131 Power Supply Monitoring Module Monitors and buffers the power supply
F 7126 Power Supply Module Provides power distribution across modules

Popular HIMA Models

Here are six popular HIMA models in the market:

Model Description Key Features
F 8651 Central Module for H51q Redundant central control with communication interfaces
F 8631 Profibus-DP Communication Module Profibus-DP support for industrial communication
F 7543 I/O Bus Coupling Module Supports redundant I/O bus configurations
F 7116 Power Distribution Module Ensures reliable power distribution in industrial systems
F 8700 Fieldbus Communication Module Provides integration for various fieldbus systems
F 7410 Remote I/O Module Remote I/O expansion with high fault tolerance
FAQ

FAQs

  1. What is the function of the HIMA F7546 I/O Bus Coupling Module?

    • The module connects and terminates the I/O bus in HIMA systems, ensuring redundancy and safe operation during faults.

  2. How does the F7546 ensure redundancy in the system?

    • It facilitates redundant data paths between central modules and I/O subracks, maintaining operation even in case of a fault.

  3. What are the temperature ranges for the module?

    • The module operates within a temperature range of 0°C to +60°C and can be stored at temperatures from -40°C to +85°C.

  4. What type of interface does the F7546 support?

    • It supports the RS-485 interface for communication with other system components.

  5. Can the F7546 be used in hazardous environments?

    • Yes, the module is designed to meet the safety standards required for use in industrial environments, including those with explosion hazards.

  6. What power supply is required for the F7546?

    • The module requires a 24 V DC power supply to operate.

  7. How is the F7546 integrated into a HIMA system?

    • The module is plugged into the I/O subrack and connects the I/O bus to central modules, enabling communication between devices.

  8. What is the weight and size of the F7546 module?

    • The module weighs 0.56 kg and has dimensions of 100 x 50 x 20 mm.
