Technical Specifications
| Parameter | Specification |
|---|---|

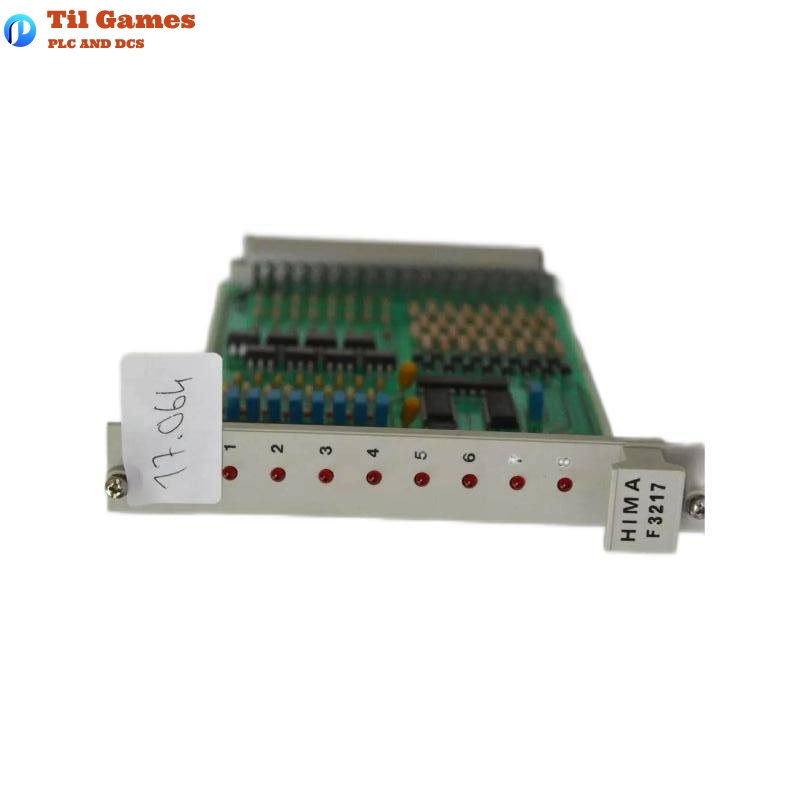

| Product Type | Safety-Related Input Module |
| System | HIMA Planar F System |
| Input Channels | 8 channels |
| Input Type | Digital inputs |
| Safety Function | Safety-related signal acquisition |
| Rated Voltage | 24 V DC |
| Operating Voltage Range | 18 to 30 V DC |
| Input Signal Level | Logic “0”: 0 to 5 V Logic “1”: 15 to 30 V |
| Input Current | Approx. 3 mA at 24 V |
| Galvanic Isolation | Yes, channel-to-channel and channel-to-system |
| Fault Detection | Wire break and short-circuit monitoring |
| Channel Type | Individually isolated channels |
| Response Time | <10 ms |
| Mounting Type | DIN rail mounting |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Degree of Protection | IP20 |
| Dimensions (W x H x D) | 200 x 100 x 35 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of input signals does the F3217 module support?
A1: The F3217 module supports 24 V DC digital input signals.
Q2: Are the channels on the F3217 module electrically isolated?
A2: Yes, each of the 8 input channels is galvanically isolated from each other and from the system.
Q3: What safety features are integrated into the F3217 input module?
A3: The module includes safety-related input acquisition, wire break detection, and short-circuit monitoring per channel.
Q4: Can this module be used in environments with wide temperature variations?
A4: Yes, it operates reliably within a temperature range of -20°C to +60°C and can be stored at -40°C to +85°C.
Q5: What is the typical input current for each channel at 24 V?
A5: The typical input current is approximately 3 mA at 24 V.
Q6: How fast does the F3217 module respond to input signals?
A6: The module has a response time of less than 10 milliseconds.
Q7: Is this module compatible with redundant safety architectures?
A7: Yes, it is designed for use in safety-critical applications and supports implementation in redundant configurations.
Q8: What type of mounting does the module require?
A8: The F3217 module is designed for DIN rail mounting.
