Technical Specifications
| Parameter | Description |
|---|---|
| Module Type | Output Amplifier Module |
| System | Planar F System |
| Number of Output Channels | 8 |
| Output Type | Digital Output (Amplified Signal) |
| Signal Type | 24 V DC (Nominal) |
| Output Current per Channel | Up to 0.5 A |
| Short Circuit Protection | Yes |
| Channel Monitoring | Yes |
| Load Type | Resistive and inductive loads |
| Diagnostics | Channel-level diagnostics |
| Hot Swap Support | Yes |
| Connection Type | Plug-in screw terminals |
| Operating Voltage Range | 18 – 30 V DC |
| Power Consumption | Approx. 3 W |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 10 – 95% (non-condensing) |
| Mounting | DIN Rail Mounting |
| Protection Class | IP20 |
| Dimensions (W x H x D) | 130 x 25 x 120 mm |
| Weight | 0.32 kg |
FAQ
Frequently Asked Questions (FAQ)

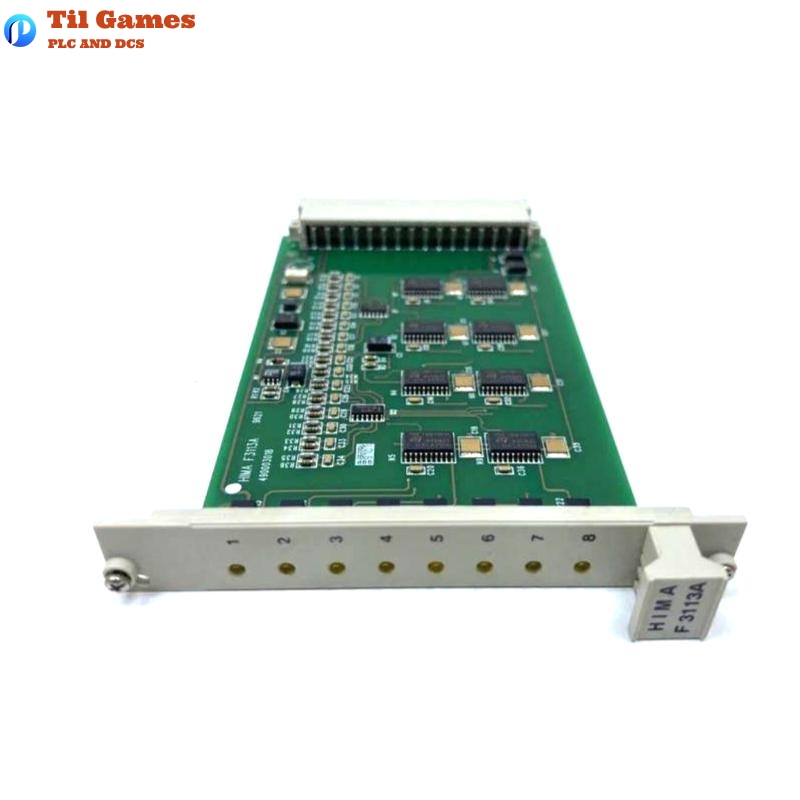

Q1: What is the main function of the F3113A module?
A1: The F3113A functions as an 8-channel output amplifier that conditions and strengthens digital output signals for actuators in safety-related automation systems.
Q2: Can the module detect short circuits on output channels?
A2: Yes, the module provides short circuit protection and diagnostic feedback for each channel.
Q3: Is the F3113A suitable for inductive loads such as solenoid valves?
A3: Yes, it supports both resistive and inductive loads, making it suitable for devices like solenoid valves and relays.
Q4: What is the maximum current supported per output channel?
A4: Each output channel can supply up to 0.5 A.
Q5: Does the F3113A support hot swapping during system operation?
A5: Yes, the module supports hot swapping, allowing safe replacement without system shutdown.
Q6: What kind of diagnostics are provided by the F3113A?
A6: It offers channel-level diagnostics including output status, short circuit detection, and load condition monitoring.
Q7: What type of terminal connection does the module use?
A7: The module uses plug-in screw terminals for secure and convenient wiring.
Q8: What standards of environmental protection does the module meet?
A8: The module complies with IP20 protection and can operate reliably in environments with 10–95% non-condensing humidity.
