Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Output Amplifier Module |
| System Compatibility | HIMA Planar F Safety System |
| Channels | 8 Output Channels |
| Output Type | Amplified Digital Output |
| Output Voltage Range | 24 VDC nominal |
| Output Current (per channel) | Max. 0.5 A |
| Short-Circuit Protection | Integrated per channel |
| Galvanic Isolation | Yes, channel-to-bus |
| Diagnostics | Channel diagnostics, error detection |
| Operating Voltage | Supplied via system backplane |
| Operating Temperature Range | 0 °C to +60 °C |
| Storage Temperature Range | -40 °C to +85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Installation Type | DIN Rail Mount |
| Cooling Method | Passive |
| Dimensions (W x H x D) | 130 x 25 x 120 mm |
| Weight | 0.32 kg |
| Protection Class | IP20 (according to EN 60529) |
| Certification | SIL3 (IEC 61508), TÜV-certified |
| Vibration Resistance | IEC 60068-2-6 compliant |
| Shock Resistance | IEC 60068-2-27 compliant |
FAQ
Frequently Asked Questions (FAQ)

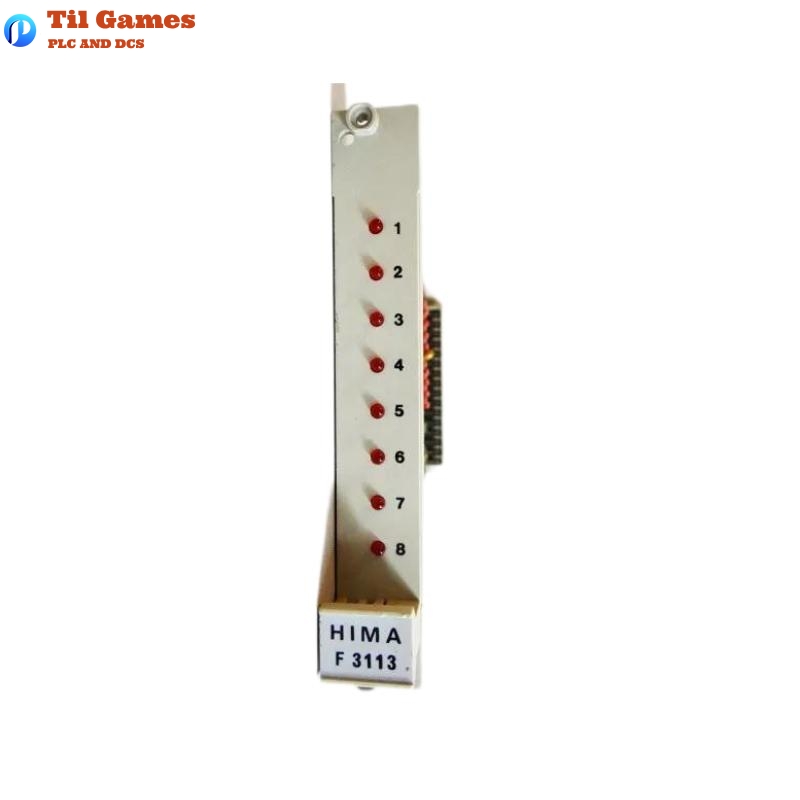

Q1: What is the primary function of the HIMA F3113 module?
A1: It serves as an 8-channel output amplifier designed to drive external devices with isolated, amplified digital signals within the HIMA Planar F Safety System.
Q2: Is the HIMA F3113 module compatible with redundant configurations?
A2: Yes, the module supports deployment in redundant safety configurations in accordance with SIL3 requirements.
Q3: Does the F3113 provide protection against short circuits?
A3: Yes, each output channel is equipped with integrated short-circuit protection.
Q4: Can the F3113 module operate in high-vibration environments?
A4: Yes, it meets the vibration resistance requirements outlined in IEC 60068-2-6 standards.
Q5: What kind of diagnostics does the F3113 module offer?
A5: It includes per-channel diagnostics for fault detection, improving system reliability and maintenance.
Q6: How is the HIMA F3113 module powered?
A6: It is powered through the system backplane, with no separate power connection required.
Q7: What installation method is used for the F3113?
A7: It is designed for DIN rail mounting inside a control cabinet.
Q8: What are the environmental storage limits for the F3113 module?
A8: The module can be stored in environments ranging from -40 °C to +85 °C without performance degradation.
