Technical Specifications
| Parameter | Description |
|---|---|
| Module Type | Power Distribution Module |
| System Compatibility | H50 System |
| Channels | 4 independent output channels |
| Input Voltage Range | 24 V DC nominal |
| Output Voltage | Follows input (typically 24 V DC) |
| Output Current per Channel | Max. 8 A (short-circuit protected) |
| Total Output Current | Max. 32 A across all 4 channels |
| Diagnostics | Channel-specific diagnostics and status feedback |
| Protection | Overcurrent and short-circuit protection |
| Galvanic Isolation | Yes, channel to channel and channel to system |
| Mounting Type | DIN rail |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions (W x H x D) | 130 x 107.5 x 32.8 mm |
| Weight | 0.113 kg |
| Approvals | SIL 3 (IEC 61508), CE, ATEX, and others |
FAQ
Frequently Asked Questions (FAQ)

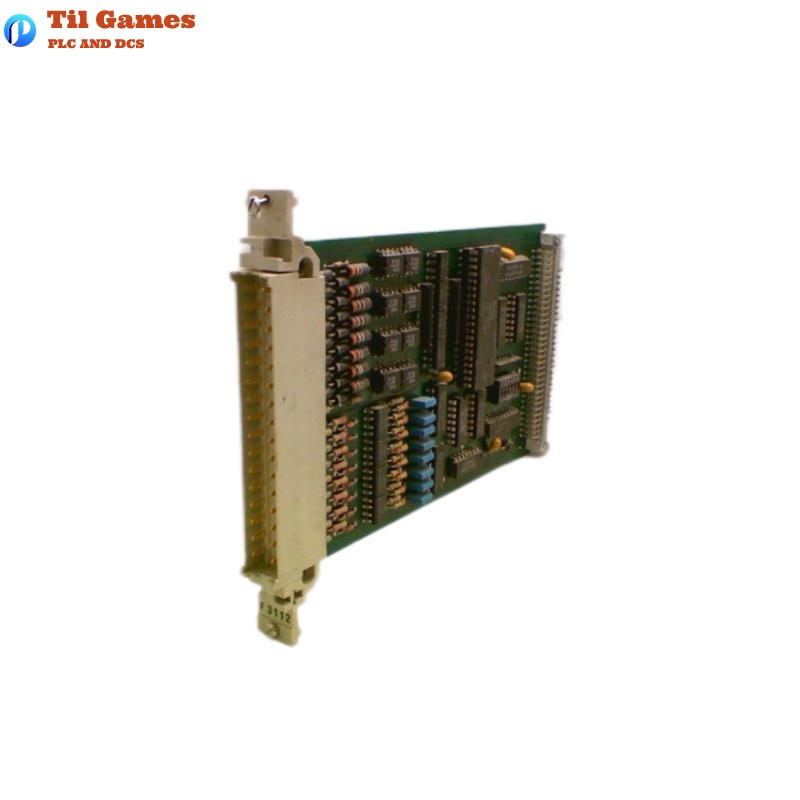

Q1: What is the primary function of the HIMA F3112 module?
A1: The F3112 distributes power to up to four field devices or modules, each with independent protection and diagnostics.
Q2: Is the F3112 suitable for use in SIL 3 safety systems?
A2: Yes, it is certified for use in SIL 3 applications in accordance with IEC 61508 standards.
Q3: Can each channel of the F3112 be monitored individually?
A3: Yes, each of the four channels has independent diagnostic feedback and status monitoring.
Q4: What kind of protection does the module offer?
A4: The module includes short-circuit and overcurrent protection on each individual channel.
Q5: Does the F3112 provide galvanic isolation?
A5: Yes, it features galvanic isolation between channels and between channels and the system bus.
Q6: What is the maximum current the module can handle?
A6: Each channel supports up to 8 A, with a combined maximum of 32 A across all channels.
Q7: What are the installation requirements for this module?
A7: It is designed for DIN rail mounting in standard control cabinets with ambient conditions from 0°C to +60°C.
Q8: What are the module’s dimensions and weight?
A8: The F3112 measures 130 x 107.5 x 32.8 mm and weighs 0.113 kg.
