Technical Specifications
| Parameter | Specification |
|---|---|

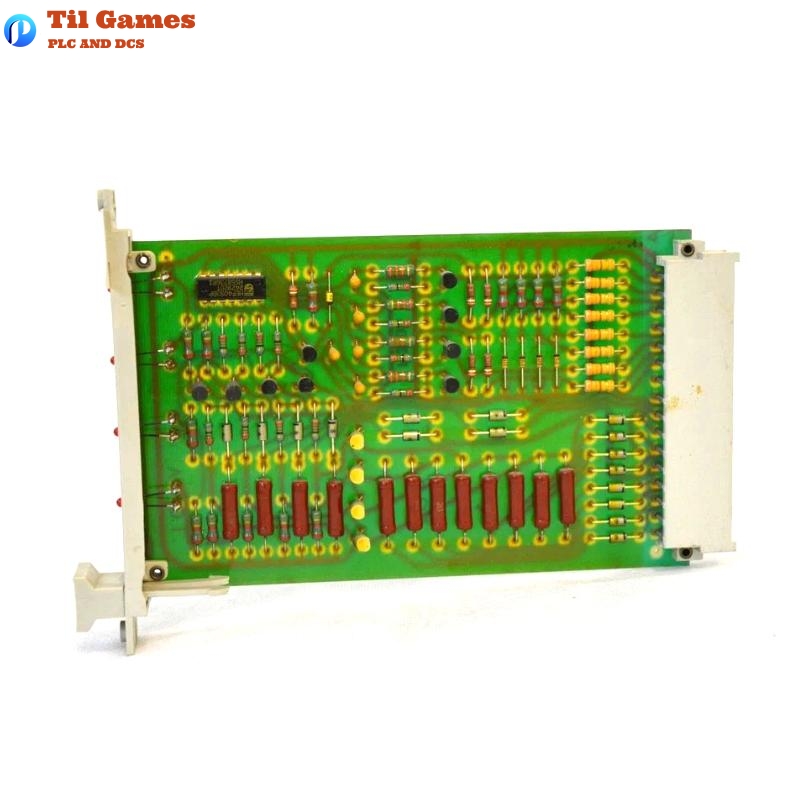

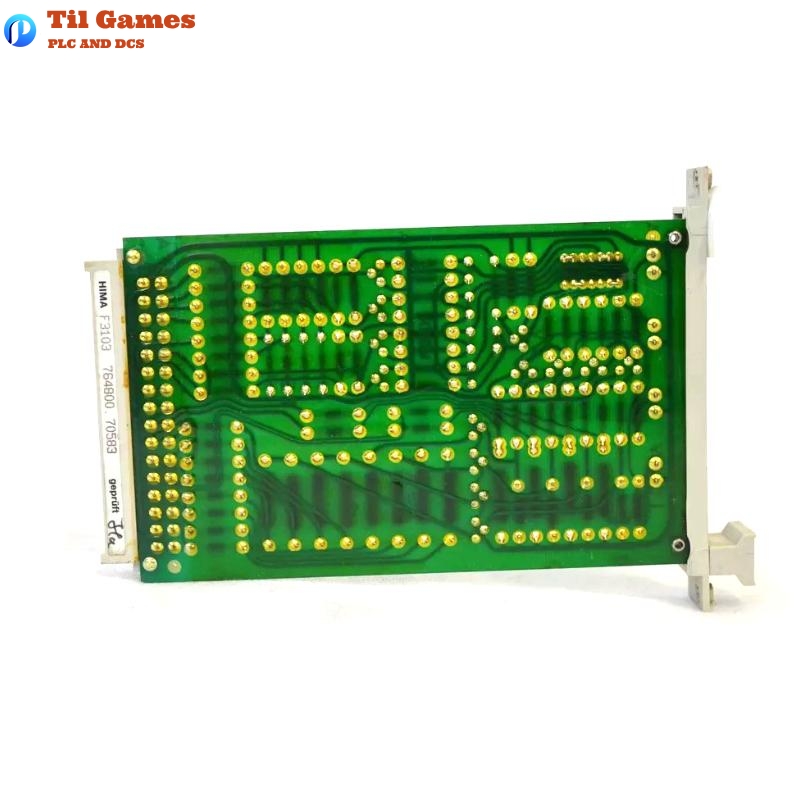

| Product Name | HIMA HIMatrix F3103 Safety System Module Card |
| Digital Inputs | 20 (non-galvanically separated) |
| Digital Outputs | 8 (non-galvanically separated) |
| Input Voltage Range | HIGH: 15–30 VDC LOW: Max. 5 VDC |
| Input Current | HIGH: ≥2 mA at 15 V LOW: ≤1.5 mA at 5 V |
| Output Current Capacity | Channels 1–3, 5–7: 0.5 A Channels 4 and 8: 1 A @ 50–60°C, 2 A @ <50°C |
| Minimum Output Load | 2 mA |
| Internal Voltage Drop | Max. 2 V at 2 A |
| Leakage Current (Low State) | Max. 1 mA at 2 V |
| Total Output Current (Max.) | 7 A |
| Operating Voltage | 24 VDC (-15% to +20%), rPP ≤ 15%, SELV/PELV compliant |
| Current Consumption | Idle: approx. 0.4 A Max: 8 A |
| Program/Data Memory | 5 MB total (less 64 KB for CRCs) |
| Ethernet Ports | 4 x RJ-45 (10/100 Mbps, full/half duplex, auto-negotiation/crossover) |
| Communication Protocols Supported | SafeEthernet, Modbus TCP, OPC, PROFINET, SNTP, ComUserTask, TCP SR |
| Reset Key Access | Accessible via housing (with 20s hold during reboot) |
| Buffered Real-Time Clock | Up to 1 week via gold capacitor |
| Protection Rating | IP20 |
| Ambient Temperature Range | 0 to +60 °C |
| Storage Temperature Range | -40 to +85 °C |
| Pollution Degree | Degree II (IEC/EN 61131-2) |
| Installation Altitude | < 2000 m |
| Certifications | SIL 3 (IEC 61508/61511), SIL 4 (EN 50126/50128/50129), Cat. 4, PL e (EN ISO 13849-1) |
| Dimensions (W x H x D) | 257 mm x 114 mm x 66 mm |
| Weight | 1.2 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many I/O channels are available on the HIMA F3103 module?
A1: The module provides 20 digital inputs and 8 digital outputs.
Q2: What is the maximum output current supported by each channel?
A2: Channels 1–3 and 5–7 support up to 0.5 A. Channels 4 and 8 support 2 A at temperatures below 50°C, and 1 A up to 60°C.
Q3: What happens if a digital input or output fault is detected?
A3: The system activates the FAULT LED, sets the affected I/O to a de-energized safe state, and logs an error code for diagnostic purposes.
Q4: Is the module suitable for use in SIL-rated safety applications?
A4: Yes, it is certified for up to SIL 3 (IEC 61508/61511) and SIL 4 (EN 50126, EN 50128, EN 50129) applications.
Q5: How does the module handle power loss in terms of real-time clock functionality?
A5: The real-time clock is backed up by an internal capacitor, retaining data for approximately one week without external power.
Q6: Can I use this module in high-altitude installations?
A6: Yes, it supports installation altitudes of up to 2000 meters above sea level.
Q7: Are the Ethernet ports redundant or independently configurable?
A7: The four RJ-45 Ethernet ports are independently configurable and support integrated switch functionality, including VLAN, mirroring, and LLDP.
Q8: What kind of protection or enclosure does the F3103 have?
A8: It is housed in a metal enclosure with an IP20 protection rating, suitable for installation in controlled cabinet environments.
