Technical Specifications

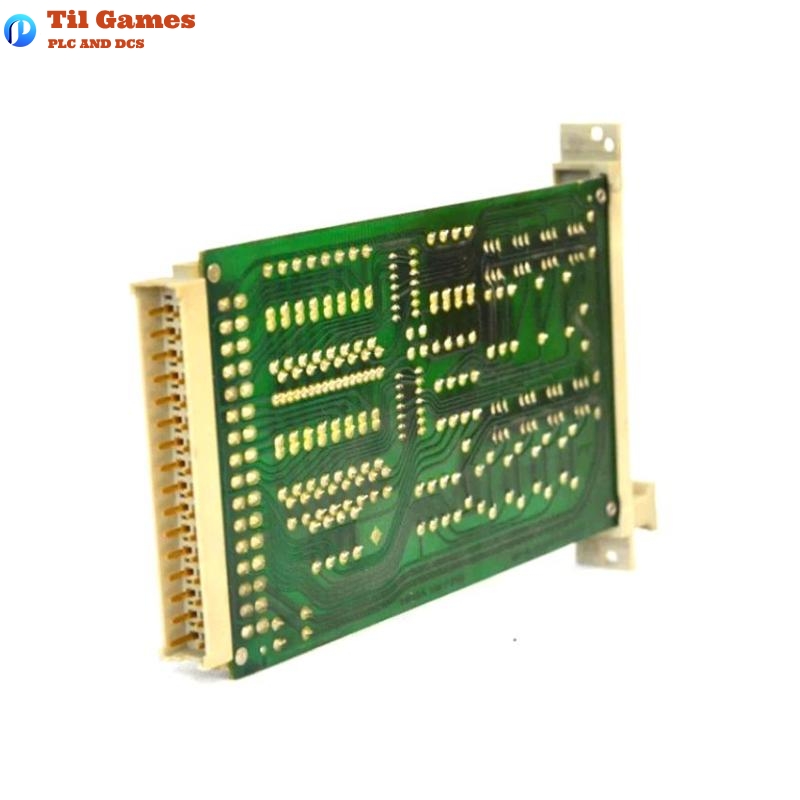

The following table outlines the key technical specifications of the HIMA F3102 Buffer Amplifier Module used in Planar F Safety Systems:
| Parameter | Specification |
|---|---|
| Product Name | HIMA F3102 Buffer Amplifier Module |
| System Compatibility | Planar F System |
| Function | Buffer amplification for analog signal paths |
| Input Signal Type | Analog signal |
| Output Signal Type | Buffered analog output |
| Operating Voltage | 24 V DC (nominal) |
| Power Consumption | < 2 W |
| Signal Isolation | Galvanic isolation between input and output |
| Mounting | Plug-in module, DIN rail installation |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| EMC Compliance | EN 61000-6-2 / EN 61000-6-4 |
| Dimensions (W x H) | 200 mm x 100 mm |
| Weight | 0.5 kg |
| Safety Integrity Level | SIL 3 (according to IEC 61508) |
| Housing Material | Industrial-grade plastic |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main function of the HIMA F3102 module?
A1: The HIMA F3102 functions as a buffer amplifier, ensuring signal integrity by providing a stable and isolated analog signal path in safety-related systems.
Q2: Is the F3102 module compatible with all HIMA safety systems?
A2: No, the F3102 is specifically designed for use within the HIMA Planar F system and should not be used outside of this environment.
Q3: Does the F3102 module support galvanic isolation?
A3: Yes, the module provides galvanic isolation between input and output to ensure safe and interference-free signal transmission.
Q4: What is the power supply requirement for this module?
A4: The F3102 operates on a nominal 24 V DC power supply with a power consumption of less than 2 W.
Q5: Can the F3102 be mounted on a standard DIN rail?
A5: Yes, it is designed for plug-in installation onto standard DIN rails within Planar F systems.
Q6: What is the operating temperature range of the HIMA F3102?
A6: The module operates effectively within a temperature range of 0°C to +60°C.
Q7: What safety level does the F3102 comply with?
A7: The F3102 is certified to Safety Integrity Level SIL 3 in accordance with IEC 61508.
Q8: What are the module’s dimensions and weight?
A8: The F3102 measures 200 mm x 100 mm and weighs 0.5 kg.
