Product Overview

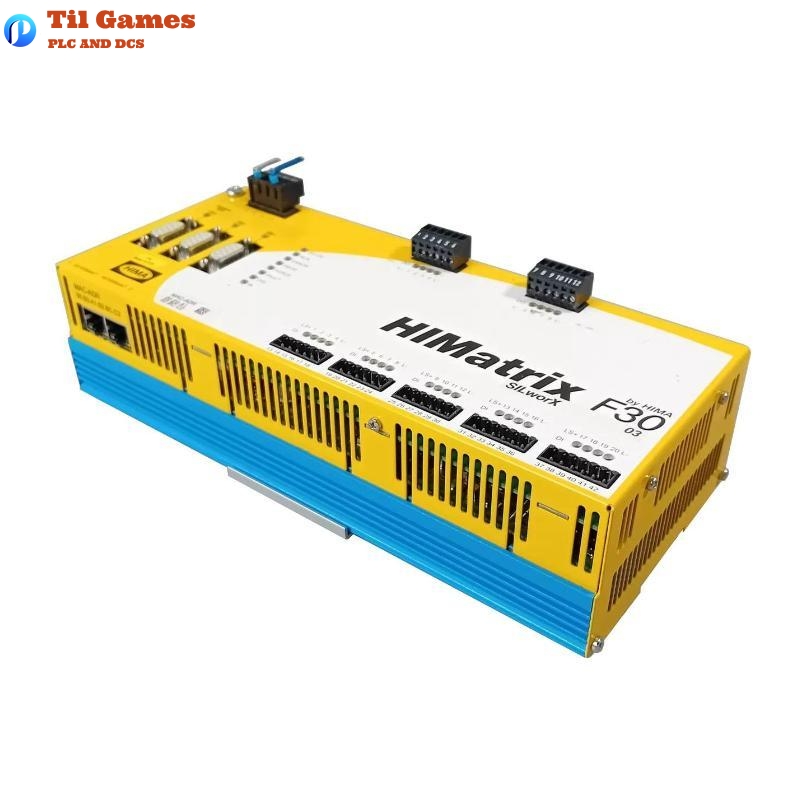

The HIMA F30 03 is a compact, TÜV-certified safety-related controller from the HIMatrix family, engineered for demanding industrial automation and safety applications. Designed to support up to SIL 3 (IEC 61508 / 61511 / 62061) and SIL 4 (EN 50126 / EN 50128 / EN 50129), this unit is ideal for high-integrity environments such as process industries, railway automation, and energy sectors.
The controller provides 20 digital inputs and 8 digital outputs, housed in a robust metal enclosure suitable for DIN rail mounting. With features like multitasking, reload support, SOE (sequence of events) capability, and integrated Ethernet switching, it ensures high system availability and reliability in safety-critical applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Model | HIMA F30 03 |
| Input Channels | 20 digital inputs (non-galvanically isolated) |
| Output Channels | 8 digital outputs (non-galvanically isolated) |
| Input Voltage Range (HIGH) | 15…30 VDC |
| Input Voltage Range (LOW) | Max. 5 VDC |
| Input Current | ≥2 mA at 15 V (HIGH), max. 1.5 mA at 5 V (LOW) |
| Output Current (1…3, 5…7) | 0.5 A @ ≤60 °C |
| Output Current (4, 8) | 2 A @ ≤50 °C; 1 A @ 50–60 °C |
| Output Voltage | ≥ L+ – 2 V |
| Total Output Current | Max. 7 A |
| Voltage Supply | 24 VDC (–15%/+20%), rPP ≤ 15% |
| Protection Class | IP20 |
| Mounting | DIN rail 35 mm |
| Fieldbus Interfaces | 3 x 9-pin D-sub connectors (FB1–FB3) |
| Ethernet Interfaces | 4 x RJ-45, 10/100Base-Tx, auto negotiation, integrated switch |
| Configuration Tool | SILworX |
| Supported Protocols | safeethernet, Modbus TCP, OPC, PROFINET, SNTP, ComUserTask |
| Operating Temperature | 0…+60 °C |
| Storage Temperature | –40…+85 °C |
| Dimensions | 257 x 114 x 66 mm |
| Weight | Approx. 1.2 kg |
| Certifications | SIL 3 / SIL 4 (TÜV), PL e, Cat. 4, CE, EN 5012x, IEC 61508, 61511, 62061 |
Product Features
-
Integrated CPU, Ethernet switch, and I/O in a compact housing
-
20 safe digital inputs and 8 safe digital outputs
-
Supports multitasking and reload functionalities
-
Certified up to SIL 3 and SIL 4 for industrial and railway applications
-
Sequence of Events (SOE) recording with up to 4000 configurable events
-
Extensive diagnostics via system and communication LEDs
-
Configurable error reaction and line fault detection
-
Integrated fieldbus connectivity with modular expansion options
Product Advantages
-
High Safety Integrity: Certified up to SIL 3/4 ensures reliable performance in critical applications.
-
Compact Form Factor: Space-saving design with integrated I/O and network interfaces.
-
Robust Diagnostics: Detailed error codes and LED status indicators for quick fault identification.
-
Easy Integration: Seamless connection with HIMA’s SILworX programming and diagnostic suite.
-
Flexible Communication: Multiple Ethernet and fieldbus interfaces allow wide-ranging system integration.
-
Resilient Design: Wide temperature range and industrial-grade protection for harsh environments.
Applications
-
Emergency Shutdown Systems (ESD)
-
Fire and Gas Systems (F&G)
-
Burner Management Systems (BMS)
-
Railway Signaling and Interlocking
-
Power Plant Protection Systems
-
Oil & Gas Refining and Petrochemicals
-
Chemical Processing Plants
Recent Reports & News Headlines
-
“HIMA Extends HIMatrix Line with Enhanced Temperature-Class Modules for Harsh Environments”
-
“New Safety Enhancements in SILworX for Compact Controllers like F30 03”
-
“HIMA Achieves SIL 4 Certification for F30 034 in Railway Applications”
-
“Compact Controllers Lead the Way in Industrial Safety Integration, Says HIMA”
Related Models from the Same or Compatible Series
| Model | Description | Inputs | Outputs | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| F30 034 | Ruggedized version for railway applications | 20 DI | 8 DO | 257 x 114 x 66 | 1.2 kg |
| F35 01 | Compact controller with more communication options | 16 DI | 8 DO | 257 x 114 x 66 | 1.3 kg |
| F20 01 | Entry-level controller for small safety tasks | 12 DI | 4 DO | 190 x 114 x 66 | 1.0 kg |
| F60 12 | High-performance controller with advanced diagnostics | 32 DI | 16 DO | 298 x 126 x 75 | 1.6 kg |
| F30 051 | Controller with enhanced power supply redundancy | 20 DI | 8 DO | 257 x 114 x 66 | 1.25 kg |
| F31 03 | Version with increased output load capabilities | 20 DI | 8 DO | 257 x 114 x 66 | 1.3 kg |
Popular HIMA Models
| Model | Description | Inputs | Outputs | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| HIMax X-CPU 31 | High-performance CPU for HIMax modular system | N/A | N/A | 298 x 126 x 75 | 1.5 kg |
| F8650X | Safety controller for large-scale automation | 48 DI | 24 DO | 372 x 210 x 90 | 2.8 kg |
| F7133 | Analog input module, 4 channels | 4 AI | N/A | 130 x 25 x 115 | 0.3 kg |
| F8627X | Universal input/output module | 16 I/O | 16 I/O | 130 x 25 x 115 | 0.5 kg |
| F7553 | Digital output module, 8 channels | N/A | 8 DO | 130 x 25 x 115 | 0.4 kg |
| F7130 | Analog input module, 8 channels | 8 AI | N/A | 130 x 25 x 115 | 0.35 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What safety certifications does the HIMA F30 03 carry?
A1: The F30 03 is certified up to SIL 3 (IEC 61508/61511/62061) and SIL 4 (EN 50126/50128/50129), and meets PL e and Cat. 4 per EN ISO 13849-1.
Q2: How many inputs and outputs does the F30 03 provide?
A2: It features 20 digital inputs and 8 digital outputs.
Q3: Can the F30 03 operate in high-temperature environments?
A3: Yes, it operates in temperatures from 0 to +60 °C. The F30 034 variant extends this to –25 to +70 °C.
Q4: Is the F30 03 suitable for railway applications?
A4: The base F30 03 is certified, but the F30 034 is specifically ruggedized for railway use per EN 50155 and EN 61373.
Q5: What protocols are supported by the Ethernet interfaces?
A5: Protocols include safeethernet, OPC, Modbus TCP, TCP SR, SNTP, and PROFINET.
Q6: What tools are used to configure the F30 03?
A6: Configuration is performed using the SILworX software suite.
Q7: Does the F30 03 support sequence of events (SOE)?
A7: Yes, up to 4000 events can be recorded and timestamped for diagnostics and audit purposes.
Q8: What is the recommended maintenance cycle?
A8: A proof test should be conducted every 10 years; otherwise, the module is maintenance-free during regular operation.
