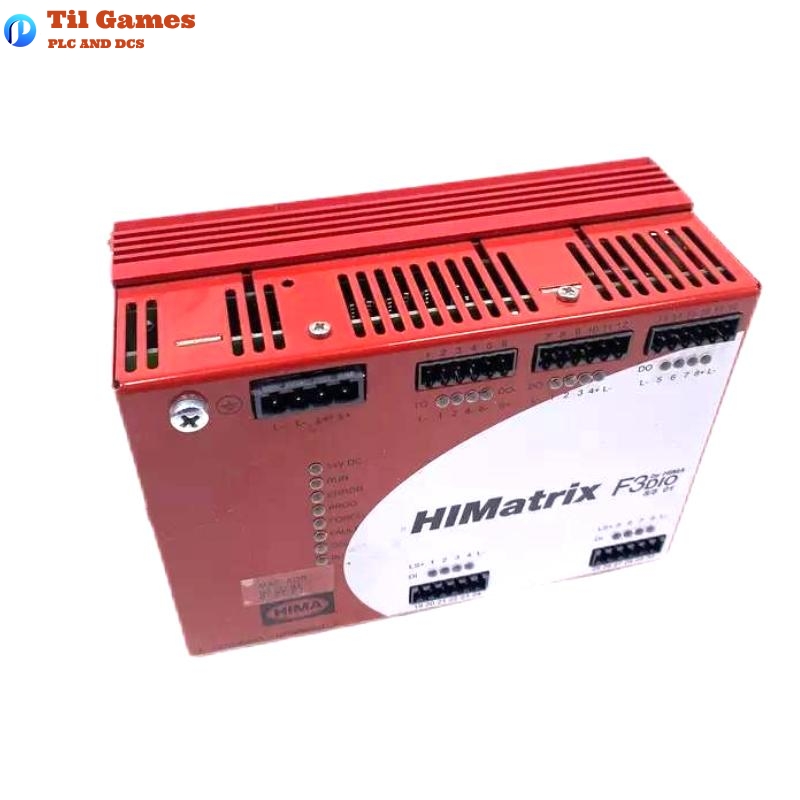

HIMA F3 DIO 8/8 01 Safety-Related Controller Remote I/O Module
– Product Description
The HIMA F3 DIO 8/8 01 is a compact, safety-related remote I/O module designed to expand digital input/output capabilities in HIMatrix systems. It is housed in a metal enclosure and includes 8 digital inputs, 8 digital outputs, and 2 pulsed outputs for line control diagnostics. This unit does not run independent programs but connects to HIMax or HIMatrix controllers via safeethernet. It is TÜV-certified for applications up to SIL 3 (IEC 61508/61511) and SIL 4 (EN 50126/50128/50129).
The module is designed for use in critical applications, including those requiring functional safety and compliance with standards such as EN ISO 13849-1 up to PL e and Category 4. It is suitable for installation in Zone 2 hazardous areas (ATEX-compliant) and can be configured using SILworX or ELOP II Factory.
– Technical Specifications
| Parameter | Value |
|---|---|
| Digital Inputs | 8 (non-galvanically isolated) |
| Digital Outputs | 8 DO+ (L- ground), 2 DO– (S+ ground) |
| Pulsed Outputs | 2 (used for diagnostic pulse, not for safety actuators) |
| Input Voltage Range | 15–30 VDC (HIGH), max. 5 VDC (LOW) |
| Output Voltage | ≥ L+ – 2 V |
| Max Output Current (DO4+/8+) | 2 A @ < 40°C, 1 A @ 40–60°C |
| Max Output Current (DO1–3/5–7) | 0.5 A @ ≤ 60°C |
| Max Output Current (DO– 4/8) | 2 A @ < 40°C, 1 A @ 40–60°C |
| Pulse Output Current | Approx. 60 mA |
| Operating Voltage | 24 VDC (–15% to +20%) |
| Current Input | Max 8 A (with load), ~0.4 A idle |
| Output Current (Total) | Max 7 A |
| Protection Rating | IP20 |
| Communication Interface | 2x RJ45 (safeethernet, 10/100 Mbps) |
| Mounting | DIN rail (35 mm) |
| Operating Temperature | 0 to +60 °C |
| Storage Temperature | –40 to +85 °C |
| Dimensions (W x H x D) | 152 x 114 x 66 mm |
| Weight | 1 kg |
| Certifications | CE, ATEX Zone 2, TÜV SIL3/4, UL, FM, EN ISO 13849-1, EN 5012x |
– Product Features
-
8 digital inputs and 10 digital outputs (including 2 for 2-pole configuration)
-
Integrated pulsed outputs for diagnostic line monitoring
-
Built-in line control and short-circuit/open-circuit detection
-
Integrated Ethernet switch with auto-negotiation and crossover
-
LED status indicators for diagnostics and channel status
-
Configuration through SILworX or ELOP II Factory
-
SIL 3 / SIL 4 certified for safety-critical systems
-
DIN rail mountable, compact industrial-grade enclosure
– Product Advantages
-
Reliability: Compliant with international safety standards for high-integrity systems
-
Flexibility: Configurable I/O channels and dual communication tools (SILworX/ELOP)
-
Diagnostics: Advanced diagnostics for fault detection and maintenance planning
-
Compact Design: Ideal for space-constrained control cabinets
-
Modular Integration: Seamless connection with HIMax and HIMatrix via safeethernet
-
SILworX Compatibility: Efficient project engineering in SIL-certified environments
– Typical Applications
-
Emergency shutdown systems (ESD)
-
Fire and gas protection systems (F&G)
-
Railway safety automation
-
Oil & gas refining and petrochemical industries
-
Machine safety and packaging lines
-
Power generation and distribution substations
– Latest Report Title
“Rev 2.00 Technical Documentation: HIMatrix F3 DIO 8/8 01 – Safety-Related Digital I/O Expansion for SIL 3/4 Applications”
Related Models (Same or Similar Series)
| Model | Inputs | Outputs | Pulsed Outputs | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| F3 DIO 8/8 014 | 8 | 8 | 2 | 152 x 114 x 66 | 1 kg |
| F3 DIO 16/8 | 16 | 8 | 0 | 152 x 114 x 66 | 1 kg |
| F3 AIO 8/4 01 | 8 AI | 4 AO | 0 | 152 x 114 x 66 | 1 kg |
| F3 DIO 32/16 | 32 | 16 | 0 | 152 x 114 x 66 | 1.2 kg |
| F3 DIO 16/16 01 | 16 | 16 | 0 | 152 x 114 x 66 | 1.1 kg |
| F3 AIO 4/4/2 01 | 4 AI | 4 AO | 2 | 152 x 114 x 66 | 1 kg |
Popular HIMA Models
| Model | Function Type | I/O Configuration | Dimensions (mm) | Weight |
|---|---|---|---|---|
| HIMax X-CPU 01 | CPU Module | – | 242 x 148 x 127 | 2.8 kg |
| F35 Controller | Compact CPU | Varies with module | 152 x 114 x 66 | 1.2 kg |
| F60 DI 16/8 | Digital I/O | 16 DI / 8 DO | 152 x 114 x 66 | 1 kg |
| F3 AIO 8/4 01 | Analog I/O | 8 AI / 4 AO | 152 x 114 x 66 | 1 kg |
| F3 DIO 8/8 01 | Digital I/O | 8 DI / 8 DO + 2 TO | 152 x 114 x 66 | 1 kg |
| HIMatrix F35 E01 | Compact Controller | CPU + I/O + Ethernet | 152 x 114 x 66 | 1.1 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What safety certifications does the HIMA F3 DIO 8/8 01 comply with?
A1: It complies with IEC 61508 SIL 3, EN ISO 13849-1 Cat. 4 PL e, EN 50126/28/29 up to SIL 4, ATEX Zone 2, and UL/CSA/FMc standards.
Q2: Can the pulsed outputs be used to control safety actuators?
A2: No. Pulsed outputs are strictly used for diagnostic purposes such as line monitoring and should not be used for safety-critical control.
Q3: What is the difference between DO+ and DO– outputs?
A3: DO+ uses L- ground while DO– uses S+ ground. DO4+/8+ and DO4–/8– can be used in 2-pole configurations for enhanced diagnostic and isolation features.
Q4: Is the F3 DIO 8/8 01 suitable for Ex zone installations?
A4: Yes, it is certified for installation in Zone 2 hazardous areas per ATEX, when installed in appropriate IP54 or higher enclosures.
Q5: What tools can be used for configuration?
A5: Configuration is done via SILworX (OS v7+) or ELOP II Factory (OS up to v6.x), depending on firmware revision.
Q6: What happens during a fault condition in a digital output?
A6: The affected output channel is switched off, a FAULT LED is activated, and the module enters a safe state.
Q7: What mounting method is used for this module?
A7: It mounts on a standard 35 mm DIN rail and must be installed inside a protected cabinet.
Q8: How are the LED indicators categorized?
A8: LEDs indicate system status (RUN, ERROR), power (24 VDC), communication (Ethernet activity), and individual channel states (ON/OFF for each input/output).
