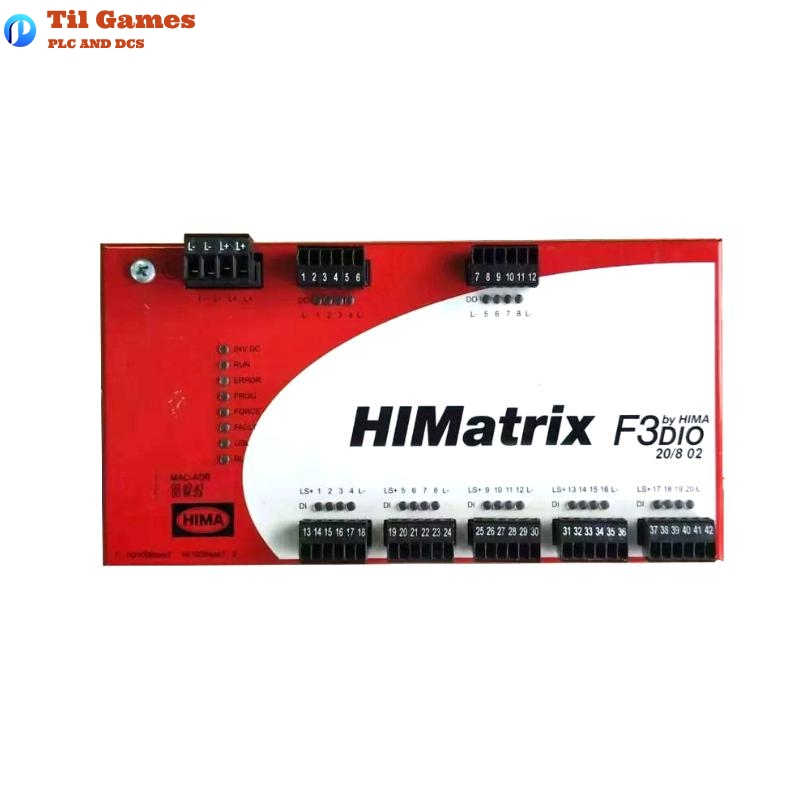

Product Overview: HIMA F3 DIO 20/8 02 Safety-Related Controller Remote I/O Module
The HIMA F3 DIO 20/8 02 is a compact, safety-related remote I/O module designed for industrial automation systems requiring high-level safety integrity. It is part of the HIMatrix family and serves to extend the I/O level of HIMax or HIMatrix controllers via safeethernet. This module cannot run user programs independently but provides 20 digital inputs and 8 digital outputs for safety-critical applications.
The module complies with international safety standards, being certified for SIL 3 (IEC 61508/61511), SIL 4 (EN 50126/50128/50129), Cat. 4, and PL e (EN ISO 13849-1). It is suitable for environments including general automation and railway systems, and is compatible with programming tools such as SILworX and ELOP II Factory depending on firmware version.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Remote I/O Module |
| Digital Inputs | 20 (non-galvanically isolated) |
| Digital Outputs | 8 (non-galvanically isolated) |
| Input Voltage Range | 15…30 VDC |
| Output Current (Ch 1–3, 5–7) | 0.5 A (up to 60 °C) |
| Output Current (Ch 4 & 8) | 2 A (<50 °C), 1 A (50–60 °C) |
| Minimum Output Load | 2 mA per channel |
| Output Voltage | ≥ L+ minus 2 V |
| Operating Voltage | 24 VDC (-15%/+20%), from SELV/PELV supply |
| Response Time | ≥ 10 ms |
| Protection Rating | IP20 |
| Communication | 2 x RJ-45, 10BASE-T/100BASE-Tx with integrated switch, safeethernet |
| Operating Temperature | 0…+60 °C |
| Storage Temperature | -40…+85 °C |
| Certifications | CE, TÜV SIL 3/4, ATEX Zone 2, UL, FM, EN ISO 13849-1 Cat. 4 PL e |
| Dimensions (W x H x D) | 207 x 114 x 66 mm |
| Weight | Approx. 1 kg |
Key Features
-
20 digital safety-related inputs and 8 digital outputs
-
Integrated diagnostics and fault LED indication
-
High availability through safeethernet communication
-
Fully compliant with SIL 3/4 safety standards
-
Compact housing with IP20 protection
-
Pulse outputs configurable for line monitoring
-
Compatible with both SILworX and ELOP II Factory tools
Advantages
-
Certified safety to SIL 3/4, ensuring high system reliability
-
Suitable for Ex-Zone 2 and harsh industrial environments
-
Configurable fault reactions for inputs and outputs
-
Line control capability for EMERGENCY STOP circuits
-
Automatic short-circuit recognition and recovery for outputs
-
Broad environmental tolerance: operates from 0 to 60 °C
-
Easy integration via Ethernet with built-in switch
Applications
-
Emergency shutdown systems (ESD)
-
Railway signaling systems
-
Industrial process control in chemical, oil & gas industries
-
Machine safety systems in manufacturing
-
Functional safety in power generation plants
-
SCADA and DCS input/output extensions
-
Remote diagnostics and safety monitoring
Recent Report Headlines
-
“HIMA Expands HIMatrix Line with Enhanced Safety-Certified Remote I/O Modules”
-
“F3 DIO 20/8 02 Achieves SIL 4 Certification for Railway Applications under EN 50129”
-
“Industrial Safety Systems Gain Higher Flexibility with HIMA F3 DIO Series”
-
“HIMA’s HIMatrix Modules Lead the Way in Modular Safety Integration”
Recommended Related Models from the Same Series
| Model | Description | Inputs/Outputs | Temperature Range | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| F3 DIO 20/8 021 | Extended temp variant | 20 DI / 8 DO | -20…+60 °C | 207 x 114 x 66 | 1.2 kg |
| F3 DIO 20/8 023 | Salt mist resistant, extended temp | 20 DI / 8 DO | -25…+70 °C | 207 x 114 x 66 | 1.2 kg |
| F3 DIO 20/8 024 | For railway use (shock & vibration certified) | 20 DI / 8 DO | -25…+70 °C | 207 x 114 x 66 | 1 kg |
| F3 AIO 8/4 01 | Analog I/O Module (safety-related) | 8 AI / 4 AO | 0…+60 °C | 207 x 114 x 66 | 1 kg |
| F3 DIO 16/8 01 | Safety I/O module | 16 DI / 8 DO | 0…+60 °C | 207 x 114 x 66 | 1 kg |
| F3 DIO 8/8/1 01 | Compact digital input/output with relay | 8 DI / 8 DO / 1 relay | 0…+60 °C | 207 x 114 x 66 | 1 kg |
Popular HIMA Models
| Model | Description | Inputs/Outputs | Use Case | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| F8627X | Digital output module (high density) | 32 DO | General safety systems | 207 x 114 x 66 | 1.1 kg |
| F8650X | CPU/System controller (redundant) | N/A | HIMax main CPU | 207 x 114 x 66 | 1.5 kg |
| F7553 | Digital input module | 32 DI | Monitoring and ESD systems | 207 x 114 x 66 | 1.2 kg |
| F7133 | Analog input module | 8 AI | Analog signal processing | 207 x 114 x 66 | 1.1 kg |
| F8621A | Digital output module | 16 DO | Machine safety | 207 x 114 x 66 | 1 kg |
| F6705 | Communication module with fieldbus interface | N/A | Remote system communication | 207 x 114 x 66 | 1 kg |
FAQ
FAQ – HIMA F3 DIO 20/8 02
Q1: What type of safety certification does the F3 DIO 20/8 02 have?
A1: The module is certified up to SIL 3 (IEC 61508/61511), SIL 4 (EN 50126/50128/50129), and PL e Cat. 4 (EN ISO 13849-1).
Q2: Can the F3 DIO 20/8 02 be used in Ex-zone environments?
A2: Yes, it is suitable for installation in Zone 2 as per ATEX requirements when installed in appropriate enclosures.
Q3: Is the module compatible with both SILworX and ELOP II Factory?
A3: Yes, compatibility depends on firmware version. SILworX is used for CPU OS V7+, while ELOP II Factory is used for OS up to V6.x.
Q4: Can the outputs handle inductive loads?
A4: Yes, but HIMA recommends connecting a protective diode to the actuator to suppress voltage spikes.
Q5: What happens during a fault on an input or output?
A5: The module sets the affected channel to a safe (de-energized) state, signals the fault via FAULT LED, and provides error codes.
Q6: How are the digital outputs protected from overloads?
A6: Overloaded outputs are automatically shut off and then cyclically checked and reactivated once the fault clears.
Q7: Does the device support remote diagnostics?
A7: Yes, diagnostics can be viewed through LEDs and detailed error codes via SILworX or ELOP II Factory.
Q8: What is the power supply requirement for this module?
A8: The module operates on 24 VDC ±20% from a PELV/SELV-compliant power source.
