Product Specifications
| Parameter | Value |
|---|---|

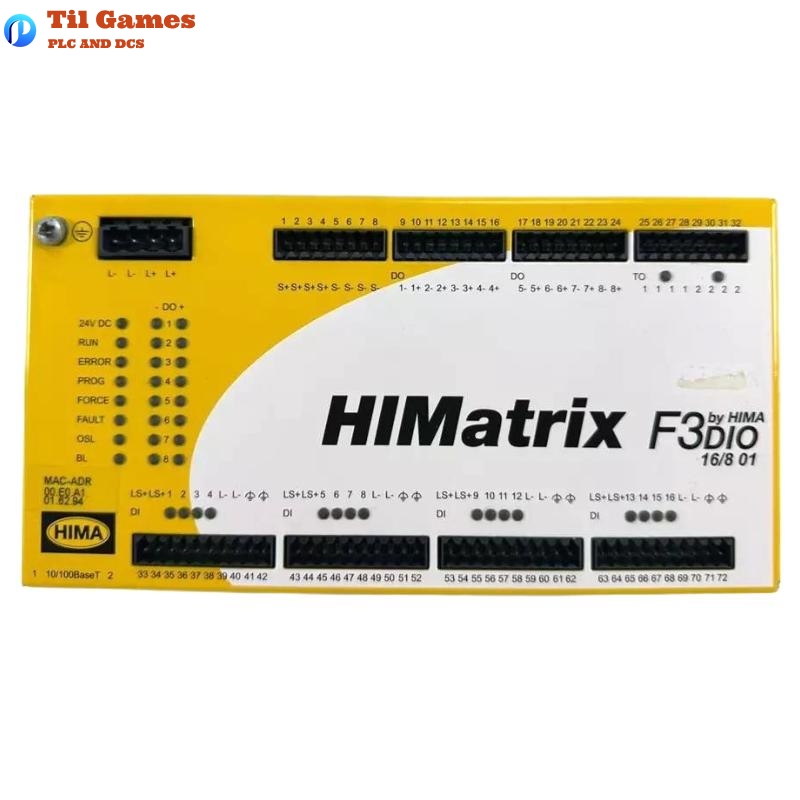

| Model | HIMA F3 DIO 16/8 01 |
| Inputs | 16 digital (non-galvanically isolated) |
| Outputs | 8 two-pole digital outputs |
| Pulsed Outputs | 2 (non-safety-related) |
| Input Voltage | 15–30 VDC (High), max. 5 VDC (Low) |
| Output Current | Max. 2 A (<40°C), Max. 1 A (40–60°C) |
| Output Voltage Drop | Max. 3 V at 2 A (2-pole), 1.5 V on DO+ or DO- |
| Load Capacity | 25 W lamp load, 500 mH inductive |
| Protection Rating | IP20 |
| Operating Voltage | 24 VDC ±15% to +20% |
| Power Consumption | Max. 11 A |
| Response Time | ≥ 10 ms |
| Communication Ports | 2 x RJ-45 (10/100 Mbps Ethernet) |
| Protocols | SafeEthernet, PADT, SNTP |
| Operating Temperature | 0…+60 °C |
| Storage Temperature | -40…+85 °C |
| Certifications | SIL 3 (IEC 61508/61511), SIL 4 (EN 50126/28/29), PL e, Cat. 4 |
| Dimensions (W x H x D) | 205 x 114 x 88 mm |
| Weight | 1.3 kg |
Product Features
-
16 digital safety-related inputs with fault detection and line control.
-
8 digital outputs, 2-pole switching, with individual diagnostics and line monitoring.
-
2 pulsed outputs for advanced input line diagnostics (non-safety).
-
Communication via SafeEthernet with integrated switch.
-
TÜV and CE certified for use in functional safety systems.
-
LED indicators for voltage, status, communication, and I/O diagnostics.
-
Operating system compatibility with both SILworX and ELOP II Factory tools.
Key Advantages
-
High Safety Compliance: Certified up to SIL 4 and PL e for mission-critical applications.
-
Flexible I/O Configuration: Support for various load types—ohmic, inductive, and capacitive.
-
Advanced Diagnostics: Integrated monitoring for short-circuits, open-circuits, and overloads.
-
Compact Design: All I/O functions housed in a single, space-saving module.
-
Versatile Communication: Dual Ethernet ports with auto-crossover and full SafeEthernet support.
-
Environmentally Robust: Reliable operation in harsh temperature conditions and Ex-Zone 2 compatibility.
Typical Applications
-
Emergency shutdown systems (ESD)
-
Fire and gas systems (F&G)
-
Railway signaling and interlocking systems
-
High-integrity pressure protection systems (HIPPS)
-
Machine and process safety applications
-
Distributed safety systems in refineries and chemical plants
Latest Report Title
“Enhanced Diagnostic Capabilities in Remote I/O Safety Systems: A Technical Analysis of the HIMA F3 DIO 16/8 01 in Ex-Zone 2 Applications”
Recommended Related Models (Same Series or Compatible)
| Model | Description | Digital Inputs | Digital Outputs | Pulsed Outputs | Dimensions (mm) | Weight |
|---|---|---|---|---|---|---|
| F3 DIO 16/8 014 | SIL 4 version for rail, wider temp range | 16 | 8 (2-pole) | 2 | 205x114x88 | 1.3 kg |
| F3 DIO 8/8 01 | Compact model, 8 DI, 8 DO | 8 | 8 | 0 | 205x114x88 | 1.2 kg |
| F3 AIO 8/4 01 | 8 AI, 4 AO module | 8 AI | 4 AO | 0 | 205x114x88 | 1.4 kg |
| F3 DIO 20/8 01 | Extended input model, 20 DI | 20 | 8 | 2 | 205x114x88 | 1.4 kg |
| F3 DIO 24/0 01 | Input-only module | 24 | 0 | 0 | 205x114x88 | 1.2 kg |
| F3 DIO 16/16 01 | Balanced I/O configuration | 16 | 16 | 2 | 205x114x88 | 1.4 kg |
Popular HIMA Models
| Model | Description | I/O Configuration | Dimensions (mm) | Weight |
|---|---|---|---|---|
| HIMax X-CPU 01 | Central CPU module for HIMax systems | N/A | 205x114x88 | 1.4 kg |
| HIMatrix F35 | Compact controller with integrated I/Os | 24 DI, 16 DO | 205x114x88 | 1.5 kg |
| H41q-HS | High-speed processor module | N/A | 205x114x88 | 1.3 kg |
| F1 DI 16 01 | Digital input module (16 channels) | 16 DI | 205x114x88 | 1.2 kg |
| F2 DO 16 01 | Digital output module (16 channels) | 16 DO | 205x114x88 | 1.3 kg |
| F3 AIO 8/4 01 | Analog I/O module | 8 AI, 4 AO | 205x114x88 | 1.4 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the operating temperature range of the HIMA F3 DIO 16/8 01?
A1: The module operates reliably between 0°C and +60°C.
Q2: Can the F3 DIO 16/8 01 be used in hazardous Ex-Zone 2 environments?
A2: Yes, it is certified for use in Zone 2 according to ATEX directives.
Q3: Is the device compatible with SILworX and ELOP II Factory?
A3: Yes. It supports both tools based on firmware version—SILworX (CPU OS V7+), ELOP II Factory (CPU OS ≤ V6.x).
Q4: Does the device support line diagnostics?
A4: Yes. It provides short-circuit and open-circuit diagnostics for both inputs and outputs.
Q5: What is the function of the pulsed outputs?
A5: Pulsed outputs are used for line control diagnostics, not for safety-related actuation.
Q6: What is the power consumption at full load?
A6: The maximum current input is 11 A; external fuse protection must be rated at 12 A time-lag.
Q7: Can the digital outputs be configured as 1-pole or 2-pole?
A7: Yes, outputs can be configured as 1-pole or 2-pole depending on the application.
Q8: How is the communication established with the controller?
A8: Communication is through SafeEthernet using dual RJ-45 Ethernet ports with integrated switch.
