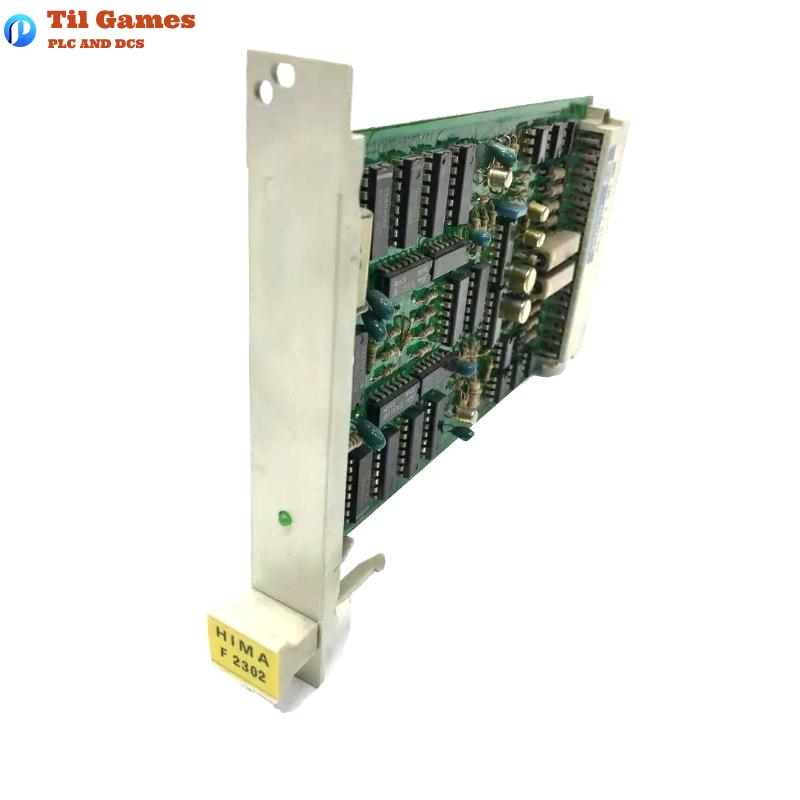

Product Overview – HIMA F2302 Planar F System Module Card
The HIMA F2302 is a highly reliable and compact module card used in HIMA’s renowned Planar F Safety System. Designed to meet the highest standards of industrial safety and reliability, the F2302 module plays a vital role in managing and securing critical applications across process industries. Engineered with robust functionality and excellent integration capabilities, it forms part of the HIMA family of fail-safe and redundant control systems tailored for safety-critical environments.
This module provides secure and deterministic signal processing for input/output operations within the safety system framework. Its high reliability, compact design, and seamless integration into the Planar F platform make it a preferred choice for industrial automation and safety instrumentation systems.
Product Specifications
| Parameter | Description |
|---|---|
| Model | F2302 |
| Manufacturer | HIMA |
| System Compatibility | Planar F Safety System |
| Function | Safety System Module Card |
| Communication | Integrated into Planar F Bus |
| Redundancy | Yes, with fail-safe configuration |
| Operating Voltage | 24 VDC |
| Mounting Type | Plug-in Module |
| Module Type | Signal Processing Module |
| Dimensions (W×H×D) | 20 × 150 × 120 mm |
| Weight | 0.5 kg |
| Certifications | SIL 3 (per IEC 61508) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Cooling | Natural air convection |
Product Features
-
Full compatibility with HIMA Planar F Series systems
-
Supports SIL 3 applications (IEC 61508 compliant)
-
Advanced fail-safe design with redundancy integration
-
High immunity to electromagnetic interference
-
Modular construction for easy replacement and maintenance
-
Real-time diagnostic and error detection features
-
Rugged housing ideal for harsh industrial environments
-
Secure and rapid signal processing capability
Product Advantages
-
Ensures maximum safety in mission-critical process environments
-
Reduces downtime with modular hot-swappable design
-
High system availability through redundancy and fault tolerance
-
Easy integration into legacy and modern Planar F configurations
-
Proven reliability in safety instrumented system (SIS) architectures
-
Simplifies lifecycle management and field maintenance
-
Extended temperature range for broader application use
-
Designed for long-term operation with low failure rates
Product Applications
-
Oil & Gas Refining and Petrochemical Plants
-
Power Generation and Energy Systems
-
Chemical Manufacturing and Processing Units
-
Railways and Transportation Safety Systems
-
Industrial Automation Safety Loops
-
Emergency Shutdown Systems (ESD)
-
Boiler and Turbine Management Systems
-
Burner Management and Fire/Gas Detection Systems
Latest Report Titles
-
“Reliability Enhancement in SIS using HIMA F2302 Modules”
-
“Modernizing Legacy Safety Systems with HIMA Planar F Components”
-
“Assessment of Fail-Safe Redundant Systems in High-Risk Industries”
-
“Integrating F2302 for Efficient Safety Instrumented Functions”
-
“Thermal Performance of Planar F Modules in Harsh Environments”
-
“Case Study: Safety Optimization in a Chemical Processing Plant Using F2302”
Recommended Related Models (Same Series or Functional Category)
| Model | Product Name | Dimensions (mm) | Weight | Function |
|---|---|---|---|---|
| F3221 | Binary Input Module | 20 × 150 × 120 | 0.5 kg | Input acquisition |
| F3330 | Relay Output Module | 20 × 150 × 120 | 0.5 kg | Binary output control |
| F3236 | Pulse Input Module | 20 × 150 × 120 | 0.5 kg | Frequency/pulse input |
| F3422 | Analog Input Module | 20 × 150 × 120 | 0.5 kg | Analog signal acquisition |
| F4113 | Power Supply Module | 20 × 150 × 120 | 0.5 kg | Module power provision |
| F4204 | System Interface Module | 20 × 150 × 120 | 0.5 kg | System bus interfacing |
Popular HIMA Model Recommendations
| Model | Product Name | Dimensions (mm) | Weight | Function |
|---|---|---|---|---|
| F8650E | CPU Control Module | 20 × 150 × 120 | 0.5 kg | Central processing unit |
| F7553 | Digital Input/Output Module | 20 × 150 × 120 | 0.5 kg | Universal I/O |
| F8627X | CPU Redundant Module | 20 × 150 × 120 | 0.5 kg | Redundant CPU control |
| F7133 | Analog Output Module | 20 × 150 × 120 | 0.5 kg | Analog signal output |
| F1DI160 | Digital Input Module | 20 × 150 × 120 | 0.5 kg | 16-channel digital input |
| F2DO1601 | Digital Output Module | 20 × 150 × 120 | 0.5 kg | 16-channel digital output |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the HIMA F2302 module?
A1: The F2302 serves as a signal processing module within the Planar F safety system, handling critical safety control and communication functions.
Q2: Is the F2302 certified for use in SIL 3 applications?
A2: Yes, the module complies with IEC 61508 standards and is certified for SIL 3 safety applications.
Q3: Can the F2302 module operate in harsh industrial environments?
A3: Absolutely, it supports a wide operating temperature range (-20°C to +60°C) and features high electromagnetic immunity.
Q4: What is the mounting method for this module?
A4: The F2302 is designed as a plug-in module for easy installation into Planar F racks.
Q5: Does the F2302 support redundancy?
A5: Yes, it supports fail-safe redundancy, enhancing system availability and reliability.
Q6: How is the cooling managed in the F2302 module?
A6: The module uses natural air convection for cooling, eliminating the need for active cooling systems.
Q7: Is the module hot-swappable during system operation?
A7: Yes, the modular design allows for hot-swapping with minimal downtime and no process interruption.
Q8: What type of applications is this module best suited for?
A8: It is ideal for emergency shutdown systems, fire/gas safety systems, and industrial automation requiring strict safety compliance.
