Product Overview

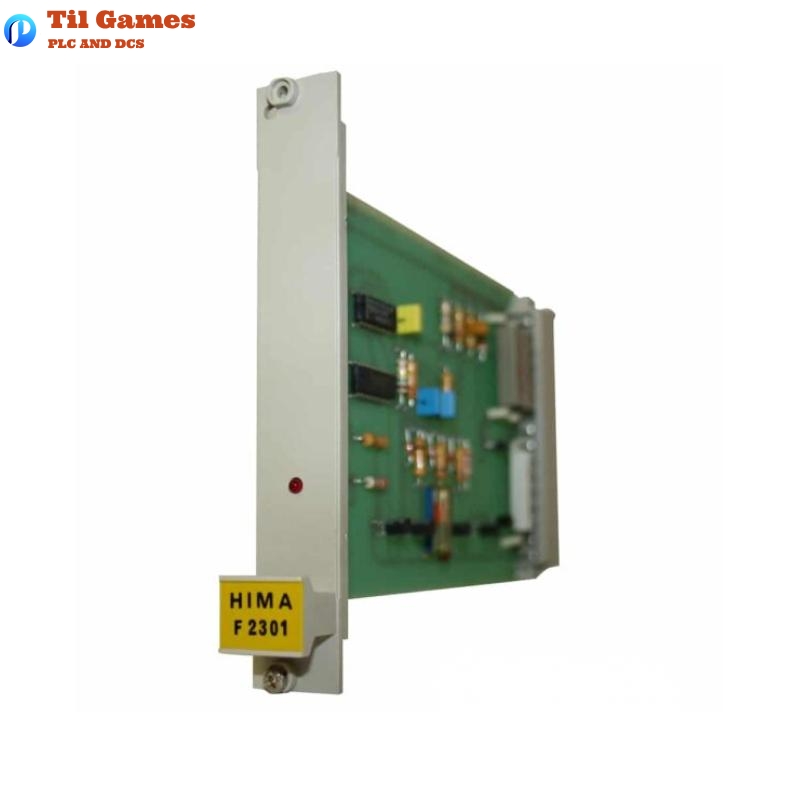

HIMA F2301 Planar F System NAND Gate With New Module Card is a safety-critical logic module designed for the Planar F system architecture, providing NAND gate functionality essential for complex logical control tasks in industrial automation and safety systems. It ensures high integrity and reliability in safety-related applications, especially in industries requiring SIL-rated system components.
This module is an integral part of the HIMA safety logic system and is often used in programmable electronic safety systems (PES) in accordance with IEC 61508 and other international standards.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | HIMA F2301 |
| Product Type | NAND Gate Module Card |
| System Compatibility | Planar F System |
| Logic Type | NAND (Not AND) Gate Function |
| Power Supply | 24 V DC typical |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Type | Plug-in module for system backplane |
| Input Channels | 2 or more depending on system configuration |
| Output Type | Transistor-based logic output |
| Certification | SIL 3 (IEC 61508), EN 50156-1, EN 60204 |
| Diagnostic Features | Self-diagnosis, fault indication |
| Dimensions (W×H×D) | 20 × 150 × 120 mm |
| Weight | 0.5 kg |
Key Features
-
Implements NAND logic operation for secure functional logic decisions.
-
Fully compliant with SIL3 safety standards as per IEC 61508.
-
Equipped with integrated diagnostics to ensure high availability.
-
Supports fail-safe behavior with automatic fault isolation.
-
Hot-swappable design, minimizing system downtime during maintenance.
-
Compatible with the Planar F System architecture.
-
Supports redundancy and fault-tolerant architectures.
Advantages
-
High Safety Integrity: Supports up to SIL 3 certification, ensuring maximal safety for critical applications.
-
Modular Flexibility: Easily integrates into existing HIMA Planar F systems, supporting expansion and upgrades.
-
Rapid Fault Detection: Built-in diagnostics with LED indicators allow early detection of faults, reducing mean time to repair (MTTR).
-
Low Maintenance: Modular design permits easy replacement without full system shutdown.
-
Wide Temperature Range: Suitable for demanding industrial environments with extended temperature ratings.
Application Areas
-
Oil & Gas Processing Plants
-
Chemical and Petrochemical Industries
-
Power Generation Facilities
-
Railway Automation Systems
-
Industrial Furnace Control
-
Emergency Shutdown Systems (ESD)
-
Burner Management Systems (BMS)
Latest Reports and Updates
Recent Title Example: “HIMA Expands Planar F Portfolio with Enhanced Logic Modules like F2301 to Strengthen Safety Automation in Harsh Industrial Environments”
(Source: Industrial Automation Journal, March 2025)
Related or Same-Series HIMA Modules (6 Recommendations)
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| HIMA F2201 | AND Gate Module Card | 20 × 150 × 120 | 0.5 |
| HIMA F2401 | OR Gate Module Card | 20 × 150 × 120 | 0.5 |
| HIMA F2001 | Input Module for Logic Processing | 20 × 150 × 120 | 0.5 |
| HIMA F2501 | XOR Logic Module Card | 20 × 150 × 120 | 0.5 |
| HIMA F2601 | Safety Shutdown Output Logic Card | 20 × 150 × 120 | 0.5 |
| HIMA F2701 | Flip-Flop Latching Logic Module | 20 × 150 × 120 | 0.5 |
Popular HIMA Models (6 Recommendations)
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| HIMA B5322 | Safety System Module | 20 × 150 × 120 | 0.5 |
| HIMA B5233-1 | System Rack Mainframe | 482 × 132 × 300 | 3.2 |
| HIMA B5233-2 | Rack Assembly Kit (for H51Q-HRS system) | 482 × 132 × 300 | 3.5 |
| HIMA 157528-0 | Backplane Unit | 482 × 132 × 30 | 1.0 |
| HIMA B4701 | Communication Processor Module | 20 × 150 × 120 | 0.6 |
| HIMA B4802 | Digital Output Card | 20 × 150 × 120 | 0.5 |
FAQ
Frequently Asked Questions (FAQs)
Q1: What type of logic does the HIMA F2301 module implement?
A1: The F2301 module implements a NAND (Not AND) logic gate function, commonly used in safety-critical logic circuits.
Q2: Is the HIMA F2301 suitable for SIL 3 applications?
A2: Yes, the module is certified to meet SIL 3 requirements as per IEC 61508.
Q3: Can the F2301 be hot-swapped during operation?
A3: Yes, the module supports hot-swapping, allowing it to be replaced without shutting down the system.
Q4: What system is the F2301 compatible with?
A4: It is specifically designed for use with the HIMA Planar F System.
Q5: How is fault detection managed in the F2301?
A5: The module has built-in diagnostic capabilities with LED indicators to signal faults or abnormal operating conditions.
Q6: What is the physical size and weight of the F2301?
A6: Its dimensions are 20 × 150 × 120 mm, and it weighs approximately 0.5 kg.
Q7: Does the module require any external configuration software?
A7: Configuration typically integrates with HIMA’s proprietary programming and configuration tools used for the Planar F system.
Q8: In which industries is the F2301 most commonly used?
A8: The module is widely used in oil and gas, chemical, power generation, and other industries requiring certified safety logic components.
