Product Description

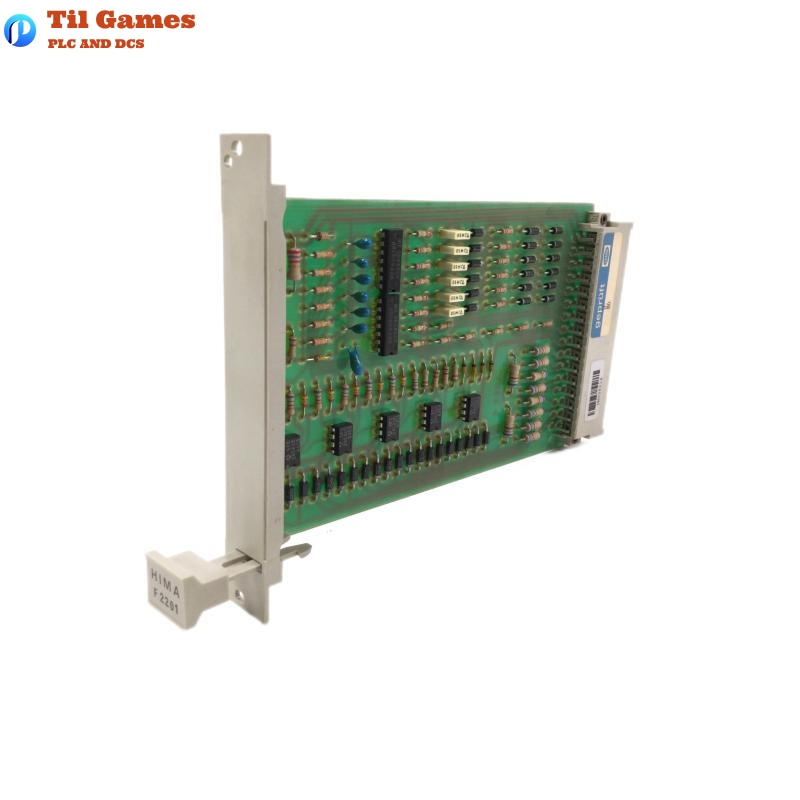

The HIMA F2201 is a core component of the Planar F safety system architecture, serving as the Central Processing Unit (CPU) for real-time logic execution and safety-critical operations. Engineered to meet the most stringent safety integrity levels, the F2201 ensures deterministic control, redundancy support, and fault tolerance in high-demand industrial safety systems. It is widely adopted in safety instrumented systems (SIS) across the chemical, petrochemical, oil & gas, and power generation industries.
The F2201 module integrates seamlessly with other HIMA Planar F series modules and is known for its high-speed processing, long lifecycle, and compatibility with SIL 3 applications as per IEC 61508 standards.
Product Specifications
| Parameter | Description |
|---|---|
| Model | F2201 |
| Series | Planar F |
| Function | CPU Module / Central Processing Unit |
| Communication | Proprietary HIMA fieldbus / system backplane |
| Safety Level | SIL 3 (IEC 61508) |
| Redundancy Support | Yes (when paired with redundant modules) |
| Operating Voltage | 24 VDC |
| Power Consumption | < 10 W |
| Processing Speed | Real-time deterministic |
| Mounting Type | Rack-mounted (Planar F backplane) |
| Operating Temperature | 0 to +60 °C |
| Storage Temperature | -40 to +85 °C |
| Certification | TÜV, CE, ATEX |
| Dimensions (W x H) | 150 x 120 mm |
| Weight | 1 kg |
Product Features
-
High-integrity real-time CPU for Planar F systems
-
Supports dual redundant configurations
-
Designed for high availability and fault tolerance
-
Real-time diagnostics and error detection
-
Compliant with IEC 61508 for SIL 3 safety applications
-
Seamless integration with HIMA safety I/O modules
-
Low power operation and thermally optimized design
-
Extended temperature range for industrial use
Product Advantages
-
Safety Assurance: Engineered for SIL 3, ensuring maximum operational safety
-
Modular Scalability: Can be paired with other Planar F modules for complex system architectures
-
Redundancy Capabilities: Built-in support for dual CPU redundancy enhances reliability
-
Efficient Diagnostics: Onboard self-diagnostics reduce system downtime
-
Long Service Life: High-quality components ensure extended operational life
-
Vendor Independence: Open interfaces allow integration into multi-vendor safety architectures
Application Areas
-
Emergency Shutdown Systems (ESD)
-
Burner Management Systems (BMS)
-
Turbine Control Systems
-
Compressor and Generator Safety Control
-
Chemical Process Safety Instrumented Systems
-
Oil & Gas Offshore and Onshore Installations
-
Refinery Plant Control and Monitoring
Latest Product News Titles
-
“HIMA Expands Planar F Lineup with Enhanced CPU Capabilities”
-
“Next-Gen Functional Safety: HIMA’s F2201 Powers SIL 3 Safety Control Systems”
-
“Process Safety in Critical Infrastructure: HIMA F2201 Leading the Way”
-
“F2201 CPU Module Certified for Extended Temperature Operation in Harsh Zones”
-
“Redundancy Redefined – HIMA Introduces Dual CPU Configurations with F2201”
Related HIMA Planar F or Compatible Modules
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| F2202 | Redundant CPU Module | 150 x 120 | 1.05 kg |
| F3330 | Digital Output Module | 150 x 120 | 0.95 kg |
| F3221 | Digital Input Module | 150 x 120 | 0.9 kg |
| F7553 | Power Supply Module | 150 x 120 | 1.1 kg |
| F6705 | Communication Interface Module | 150 x 120 | 0.85 kg |
| F8621A | Remote I/O Communication Interface Module | 150 x 120 | 0.9 kg |
Popular HIMA Models
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| F8650X | Safety System CPU (HiMax) | 160 x 120 | 1.3 kg |
| F7105A | Safety Application Module | 150 x 120 | 1.0 kg |
| F7508 | Bypass Module for Planar F | 150 x 120 | 0.95 kg |
| F3421 | Analog Input Module | 150 x 120 | 1.1 kg |
| F3236 | Mixed Input/Output Module | 150 x 120 | 1.0 kg |
| F8627X | Ethernet Interface Module | 150 x 120 | 1.05 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the HIMA F2201 module?
A1: The F2201 serves as the central processing unit in HIMA’s Planar F safety system, executing control logic and coordinating safety operations.
Q2: Is the F2201 module suitable for SIL 3 applications?
A2: Yes, it is fully compliant with IEC 61508 and certified for SIL 3 safety integrity level.
Q3: Can the F2201 be used in a redundant CPU configuration?
A3: Yes, it supports dual CPU redundancy for fault-tolerant operations.
Q4: What types of systems commonly use the F2201 CPU module?
A4: It is widely used in emergency shutdown systems, burner management systems, turbine control, and chemical plant safety systems.
Q5: What is the operating voltage range of the F2201?
A5: The standard operating voltage is 24 VDC.
Q6: Does the F2201 support remote diagnostics?
A6: Yes, it includes real-time self-diagnostics and supports integration with HIMA’s remote diagnostic tools.
Q7: What mounting type does the F2201 support?
A7: It is designed for rack-mounting in a HIMA Planar F backplane.
Q8: What certifications does the F2201 hold?
A8: The module is TÜV-certified and also meets CE and ATEX compliance for industrial applications.
