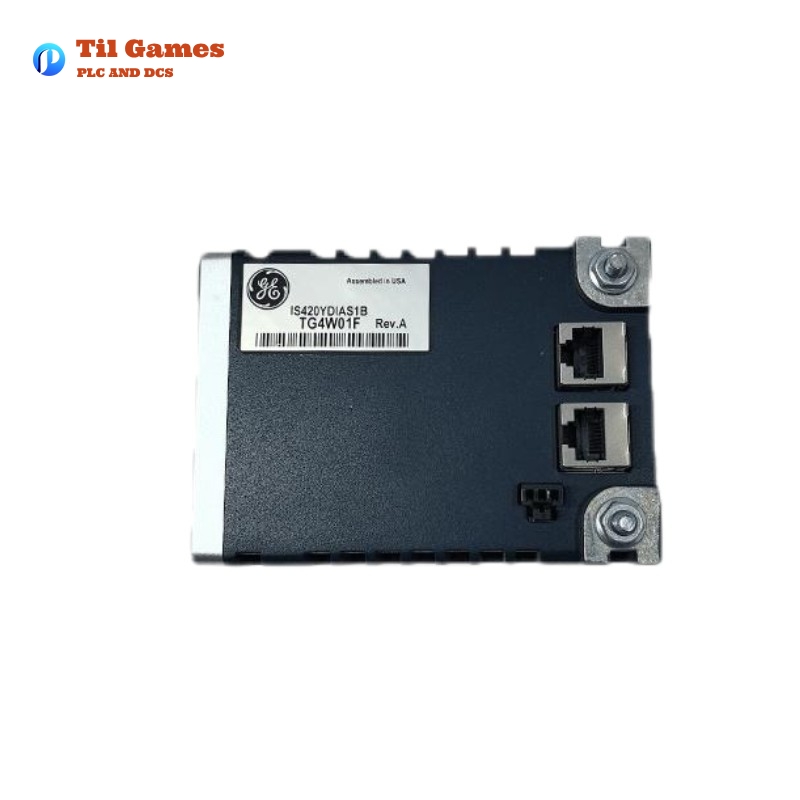

GE IS420YDIAS1B Mark VIeS Functional Safety Systems Discrete Contact I/O Module

GE IS420YDIAS1B Mark VIeS Functional Safety Systems Discrete Contact I/O Module

Manufacturer:GE

Product Number:IS420YDIAS1B

Product Type:Discrete Contact I/O Module

Origin:USA

Dimensions:170 x 157 x 153 mm

Weight:1.2 kg

Views:31

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/IS420YDIAS1B-2-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/IS420YDIAS1B-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/IS420YDIAS1B-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/IS420YDIAS1B.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview

The GE IS420YDIAS1B is a discrete contact input module designed for the Mark VIeS Functional Safety System, used for industrial safety applications. This module serves as an interface between discrete contact process sensors and the Mark VIeS Safety control logic. It is specifically used in turbine protection, burner management, emergency shutdown systems, and other critical processes requiring safety-level control systems.

The IS420YDIAS1B module is available in Simplex and Triple Modular Redundant (TMR) configurations, offering flexibility in redundancy depending on the required Safety Integrity Level (SIL). It is part of a suite of products that ensures safe and reliable operation in hazardous environments by meeting IEC 61508 standards for SIL 2 and SIL 3 safety applications.

Key Features

  • Certified Safety: Compliant with IEC 61508 for SIL 2 and SIL 3.
  • Redundancy Options: Simplex, Dual, or TMR configurations for availability and reliability.
  • Input Voltage: Nominal 24 V DC (24 V DC, 110 mA), 48 V DC options (43 V min, 53 V max).
  • High Reliability: Continuous monitoring and diagnostic capabilities for fault detection and high system uptime.

Technical Specifications

Parameter Value
Module Dimensions (H x W x D) 170 x 157 x 153 mm (6.7 x 6.2 x 6.0 in)
Weight 1.2 kg (2.65 lbs)
Wetting Voltage 24 V DC Nominal, 48 V DC Nominal
Number of Inputs 24 discrete contact inputs
Power Supply 24 / 28 V DC, 6.8 W max per I/O pack
Temperature Range -40°C to 70°C (-40°F to 158°F)
Mounting Method DIN-rail mounted
Field Wiring 24 AWG min, 12 AWG max
Safety Rating Compliant with IEC 61508 (SIL 2 and SIL 3)
Diagnostic Fault Detection Self-test, non-responding input, voltage loss detection

Applications

The GE IS420YDIAS1B module is predominantly used in safety-critical industrial applications:

  • Turbine control and protection
  • Emergency shutdown systems
  • Burner management systems
  • Fire and gas detection systems
  • Critical process control systems

Product Advantages

  1. Flexibility in Redundancy: Choose between Simplex, Dual, or TMR configurations to optimize cost and reliability.
  2. Proven Performance: Based on GE’s three decades of experience in providing reliable turbine protection systems.
  3. Cybersecurity: Advanced features for protecting against cyber threats in mission-critical applications.
  4. Fault Detection: Continuous self-diagnostics ensure early fault detection and minimal system downtime.
  5. Comprehensive Certification: Fully compliant with IEC 61508 standards for SIL 2 and SIL 3.

Latest Reports and News

  • “GE’s IS420YDIAS1B Module Enhances Industrial Control with Advanced Discrete Input/Output Capabilities”
  • “New Mark VIeS Discrete Contact I/O Module from GE Sets a New Standard for Safety and Reliability”
  • “GE Introduces Cutting-Edge IS420YDIAS1B Module to Optimize Industrial Automation and Process Safety”

Related Models in the Mark VIeS Series

Here are 10 related models or products that complement or fall under the same Mark VIeS system:

Model Product Type Key Features
IS420YDOAS1B Discrete Contact Output Module Similar to IS420YDIAS1B but for outputs
IS420YVIBS1B Vibration Input Module Interfaces with sensors for vibration monitoring
IS420YAICS1B Analog I/O Module Provides analog input/output capability for control
IS420YUAAS1A Universal Analog I/O Highly flexible for various analog sensor types
IS420YSOAS1B Safety Output Module Provides output control for safety functions
IS420UCSCS2A UCSC Controller Provides a compact, reliable controller for SIL systems
IS420UCSCH1B UCSC Gateway Controller Gateway controller for system integration
IS420PSCAH1B Modbus Master Communication Used for communication via Modbus protocol
IS420ESWAH1A Industrial Ethernet Switch Industrial Ethernet switch for Mark VIe system
IS420PDM Power Distribution Module Powers control electronics and I/O systems

GE Brand’s Popular Models

Here are 10 popular GE models from the same series or other related systems:

Model Product Type Key Features
IS420ESWBH1A Industrial Ethernet Switch 16 ports with fiber options
IS420YDOAS1B Relay Contact Output Module 12 discrete relay outputs for actuator control
IS420YVIBS1B Vibration Input Module For vibration-based monitoring in machinery
IS420YSOAS1B Safety Output Module Used for controlling safety output devices
IS420YUAAS1A Universal Analog I/O Supports multiple analog sensor types
IS420YDIAS1B Discrete Contact Input Module For interfacing with discrete contact sensors
IS420UCSCS2A UCSC Controller Dual core for reliable safety control
IS420PSCAH1B Modbus Master Communication Provides serial or Ethernet-based Modbus Master
IS420PDM Power Distribution Module Supports dual power sources for redundant operation
IS420TBAI1C Analog I/O Terminal Board Supports 10 analog inputs and outputs
FAQ

Frequently Asked Questions (FAQ)

Q1: What is the function of the IS420YDIAS1B module?

A1: The IS420YDIAS1B module serves as an interface for discrete contact process sensors, providing input to the Mark VIeS Safety control system.

Q2: Can I use the IS420YDIAS1B in a hazardous environment?

A2: Yes, it is rated for hazardous locations Class 1, Div 2 / Class 2, Zone 2 / ATEX.

Q3: What is the safety rating of the IS420YDIAS1B?

A3: The module complies with IEC 61508 standards for SIL 2 and SIL 3 safety applications.

Q4: What is the operating temperature range of the IS420YDIAS1B?

A4: The module operates within the temperature range of -40°C to 70°C (-40°F to 158°F).

Q5: How many inputs does the IS420YDIAS1B support?

A5: It supports 24 discrete contact inputs.

Q6: Can I replace the IS420YDIAS1B module’s I/O pack?

A6: Yes, the I/O pack can be replaced with the part number IS420YDIAS1B.

Q7: What mounting method does the IS420YDIAS1B use?

A7: The module is DIN-rail mounted.

Q8: What is the weight of the IS420YDIAS1B?

A8: The weight is 1.2 kg (2.65 lbs).

Q9: How does the IS420YDIAS1B detect faults?

A9: It uses self-test and continuous monitoring of inputs and outputs to detect faults.

Q10: Can the IS420YDIAS1B be used in a TMR configuration?

A10: Yes, the module supports both Simplex and Triple Modular Redundant (TMR) configurations for higher redundancy.
