Product Introduction

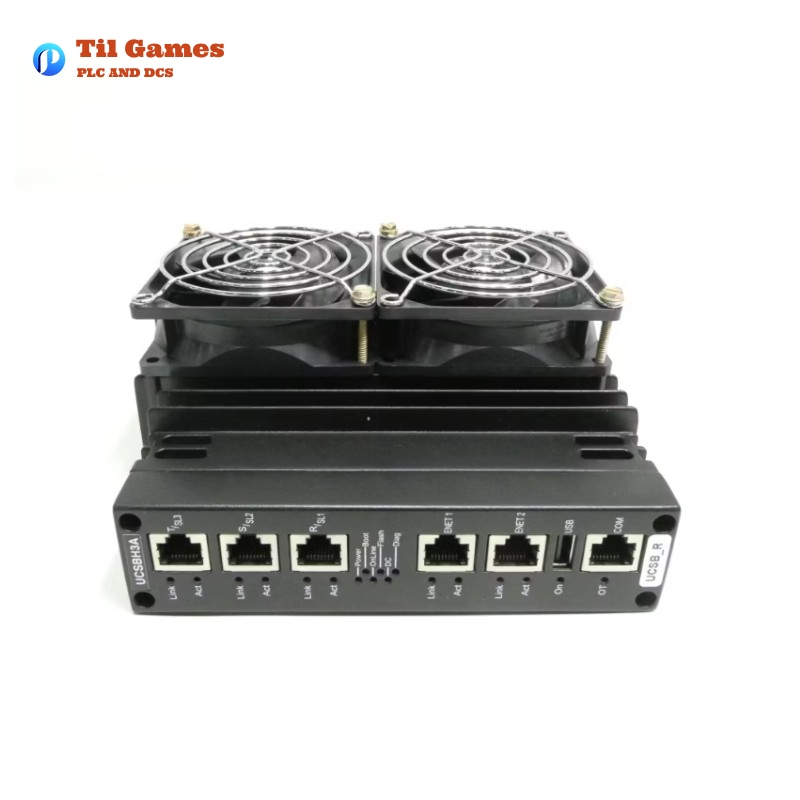

The GE IS420UCSBH3A Mark VIe Systems UCSB Controller Module is a high-performance control system designed for industrial applications that require fast, reliable, and real-time control. Unlike conventional controllers, the UCSB controller does not host application I/O but connects to all I/O networks, ensuring that no single point of application input is lost even during maintenance or repair.
The UCSB controller is mounted directly onto the panel sheet metal and features a design that ensures vertical airflow is unhindered by the fins. It is equipped with pre-installed, application-specific software and is capable of handling real-time, high-speed operations.
This single-module UCSB controller is powered by a quad-core Intel microprocessor running the QNX Neutrino operating system. The system ensures continuous operation with no battery and no fan, except for the UCSBH3A version, which includes dual-redundant fans for increased reliability. The UCSB controller is compact and features flash memory that can be updated easily.
Applications
- Industrial Automation Systems: The UCSB controller is primarily used in industrial control systems, particularly where real-time, high-speed processing is essential.
- Process Control: Suitable for controlling various processes and applications in industries like power generation, oil and gas, and manufacturing.
- Critical Infrastructure: Ideal for industries that require non-stop, reliable control and fast response times, including transportation and utility sectors.
Product Advantages
The UCSB controller offers several advantages, making it an attractive choice for critical industrial systems:
- Compact Single Module: Reduces the complexity and footprint of control systems.
- Internal Power Source: No need for external power supplies.
- No Jumper Settings: Simplifies setup and reduces maintenance.
- No Battery: Eliminates the need for battery maintenance.
- Redundant Fans (UCSBH3A): Offers enhanced reliability with dual-redundant fans.
- Flash Memory: Easy to update and maintain firmware and software.
- Real-Time Performance: Powered by a quad-core processor with QNX Neutrino OS for multi-tasking capabilities.
- High-Speed Data Processing: Ensures low-latency communication through IONet for synchronization and data exchange.
- LED Indicators: Provides diagnostic LEDs for easy troubleshooting, including Link, Boot, Online, Flash, DC, and Diagnostic LEDs.
Product Features
- Processor: 1200 MHz Intel EP80579 quad-core processor.
- Memory: 256 MB DDR2 SDRAM (error-correcting code), Flash-backed SRAM, and 2GB NAND flash.
- Operating System: QNX Neutrino, optimized for real-time control.
- I/O Communication: Uses IONet interfaces for communication with I/O modules, ensuring real-time synchronization across the system.
- LED Indicators: Includes various diagnostic LEDs for monitoring system status, including Power, Boot, Online, Flash, DC, Diagnostic, and OT (over-temperature).
- Mounting: Panel-mounted design, with airflow ensured for optimal cooling.
Specifications
| Specification | Details |
|---|---|
| Microprocessor | 1200 MHz Intel EP80579 quad-core processor |
| Memory | 256 MB DDR2 SDRAM with ECC, Flash-backed SRAM, 2 GB NAND flash |
| Operating System | QNX Neutrino OS |
| Power Requirements | 28.7 W peak, 17.3 W nominal |
| Dimensions | 120 x 80 x 40 mm |
| Weight | 1.3 kg |
Latest News
- GE Introduces the New UCSB Controller Module for Industrial Applications – A breakthrough in performance and reliability, the UCSB controller is set to redefine control system capabilities.
- Improved Fan Redundancy in UCSB Controllers – GE introduces dual-redundant fans in the UCSBH3A model for enhanced system stability.
- UCSB Controller Optimized for Real-Time Industrial Control – GE’s UCSB controller now offers even faster processing speeds with upgraded microprocessor technology.
Recommendations for Similar or Related Models
| Model | Description | Key Features |
|---|---|---|
| IS420UCSBH1A | Single module UCSB controller with no fans. | Fanless design, real-time processing, compact footprint |
| IS420UCSBH4A | UCSB controller with enhanced capabilities and no fan. | Compact design, real-time control, easy software updates |
| IS420UCSBS1A | UCSB controller with low power consumption. | Power-efficient, real-time processing, compact footprint |
| IS420UCSBH2A | Basic UCSB controller for smaller systems. | Reliable performance, single module design |
| IS420UCSBH5A | UCSB controller with extended memory and processing power. | Enhanced memory, high-speed processing, dual-redundant fans |
| IS420UCSBH6A | Advanced UCSB controller for high-demand applications. | Dual-redundant systems, high-speed processing, extended I/O |
| IS420UCSBH7A | UCSB controller with additional network interfaces. | Advanced networking, real-time processing, compact design |
| IS420UCSBHB1A | Backup UCSB controller for redundancy in large systems. | Redundancy support, fast processing, system synchronization |
| IS420UCSBHC1A | UCSB controller with integrated diagnostic features. | Real-time diagnostics, compact design, efficient operation |
| IS420UCSBHD1A | UCSB controller with advanced real-time monitoring capabilities. | Real-time data exchange, IONet synchronization, diagnostic LEDs |
Popular Models of the GE Brand
| Model | Description | Key Features |
|---|---|---|
| IS215UCVDH5A | Mark VIe Double Slot Controller Board. | Dual-slot design, high-speed performance, fault-tolerant |
| IS420ESWAH3A | IONet Ethernet Switch for Mark VIe systems. | Fast data exchange, robust networking, easy integration |
| IS420UCSBH1A | UCSB Controller Module for industrial applications. | High-speed processing, real-time control, compact design |
| IS420ESWAH1A | Industrial Ethernet Switch for I/O networking. | Reliable communication, fault-tolerant, real-time data sync |
| IS420UCSBH2A | Compact UCSB controller with high reliability. | Real-time performance, no fan, easy firmware updates |
| IS420UCSBS1A | Low power UCSB controller for efficient systems. | Power-efficient, real-time control, robust processing |
| IS420UCSEH3A | High-performance UCSB controller with expanded I/O. | Fast processing, real-time monitoring, compact footprint |
| IS215UCSBT1A | UCSB Controller with enhanced diagnostic capabilities. | Easy troubleshooting, real-time performance, efficient design |
| IS420UCSEH1A | Advanced UCSB controller with fault-tolerant design. | Redundant systems, real-time processing, high-speed performance |
| IS215UCSBC1A | UCSB controller designed for large-scale applications. | High-performance, extended memory, compact footprint |
FAQ
Frequently Asked Questions (FAQs)
Q1: What is the operating system used in the GE IS420UCSBH3A UCSB Controller?
A1: The UCSB Controller uses the QNX Neutrino operating system, optimized for real-time, high-speed control applications.
Q2: Can the GE IS420UCSBH3A controller handle real-time changes to the control software?
A2: Yes, the UCSB Controller allows for online changes to the control software without requiring a system restart.
Q3: How is the GE IS420UCSBH3A powered?
A3: The UCSB Controller is powered by an internal power source and does not require external power supplies.
Q4: What are the LED indicators on the GE IS420UCSBH3A for?
A4: The LEDs provide diagnostic information, including status for power, boot, online, flash, and DC, as well as indicators for system health like over-temperature.
Q5: Does the GE IS420UCSBH3A controller have a fan?
A5: The UCSBH3A model includes dual-redundant fans for added reliability, while other UCSB models (like UCSBH1A) are fanless.
Q6: What is the processor speed of the GE IS420UCSBH3A?
A6: The UCSB Controller is powered by a 1200 MHz Intel EP80579 quad-core processor.
Q7: What is the memory capacity of the GE IS420UCSBH3A?
A7: The controller has 256 MB of DDR2 SDRAM with error-correcting code (ECC), along with 2 GB of NAND flash storage.
Q8: How is the GE IS420UCSBH3A controller mounted?
A8: The UCSB Controller is mounted directly to the panel sheet metal, ensuring the fins’ vertical airflow is not obstructed.
Q9: Can the GE IS420UCSBH3A controller synchronize with other devices?
A9: Yes, it uses the R, S, and T IONets to synchronize the clocks of I/O packs and controllers to within 100 microseconds using IEEE 1588 protocol.
Q10: What industries can benefit from the GE IS420UCSBH3A UCSB Controller?
A10: The UCSB Controller is ideal for industrial automation, process control, and critical infrastructure applications, including sectors like power generation, oil and gas, and manufacturing.
