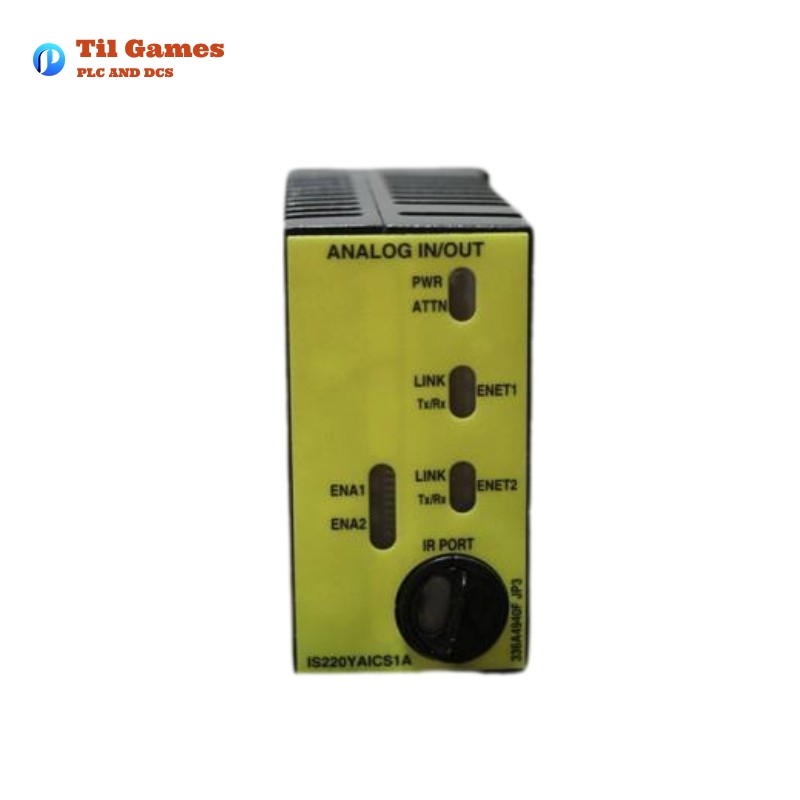

The GE IS220YAICS1A is a high-performance Analog I/O Pack designed for the Mark VIeS Series control systems. This module is part of GE’s robust portfolio of industrial automation and control solutions, specifically engineered for safety-critical applications. It is widely used in industries such as power generation, oil and gas, and other process control environments where reliability and precision are paramount.
The IS220YAICS1A module is designed to interface with analog signals, providing both input and output capabilities. It supports a wide range of signal types, including voltage and current inputs/outputs, making it versatile for various industrial applications. The module is compatible with multiple terminal boards, such as IS200STAIS1A, IS400STAIS1A, IS200STAIS2A, IS400STAIS2A, IS200TBAIS1C, and IS400TBAIS1C, ensuring flexibility in system integration.
Key Features and Parameters
| Parameter | Value |
|---|---|
| Model Number | IS220YAICS1A |
| Series | Mark VIeS Series |
| Dimensions | 138 x 86 x 56 mm |
| Weight | 0.907 kg |
| Power Supply Voltage | 27.4 V dc (Nominal) |
| Current Consumption | 0.49 A dc (Max) |
| Analog Inputs (1-8) | Voltage: -10 to 10 V dc, Current: 0 to 20 mA dc |
| Analog Inputs (9-10) | Voltage: -5 to 5 V dc, Current: -1 to 20 mA dc |
| Analog Outputs | Voltage: 0 to 16.3 V dc, Current: 0 to 20 mA dc |
| Analog Transmitter Power | Voltage: 22.8 to 25.2 V dc, Current: 21 mA dc (Max) |
| Operating Temperature | -40°C to +70°C |
| Compatible Terminal Boards | IS200STAIS1A, IS400STAIS1A, IS200STAIS2A, IS400STAIS2A, IS200TBAIS1C, IS400TBAIS1C |
Product Applications
The IS220YAICS1A is primarily used in safety-critical systems where precise analog signal processing is required. Its applications include:
- Power Generation: Monitoring and controlling turbine systems, boilers, and other critical power plant equipment.
- Oil and Gas: Managing process control systems in refineries, pipelines, and offshore platforms.
- Industrial Automation: Integrating with PLCs and DCS systems for process control and monitoring.
- Water Treatment: Controlling pumps, valves, and sensors in water treatment facilities.
- Manufacturing: Ensuring precise control in automated production lines.
Product Advantages
- High Reliability: Designed for safety-critical applications, ensuring uninterrupted operation.
- Versatility: Supports a wide range of analog signals, including voltage and current inputs/outputs.
- Compact Design: Small form factor (138 x 86 x 56 mm) allows for easy integration into control cabinets.
- Compatibility: Works seamlessly with various terminal boards, providing flexibility in system design.
- Robust Construction: Built to withstand harsh industrial environments with an operating temperature range of -40°C to +70°C.
- Precision: High accuracy in signal processing, ensuring reliable data acquisition and control.
Latest News and Updates
Title: GE Mark VIeS Series Enhances Safety and Efficiency in Industrial Automation with IS220YAICS1A Analog I/O Pack
Summary: GE’s IS220YAICS1A continues to gain traction in the industrial automation sector due to its robust design and versatility. Recent installations in power plants and oil refineries have demonstrated its ability to improve system reliability and reduce downtime. GE has also announced upcoming firmware updates to enhance compatibility with next-generation control systems.
Recommended Related Models
Here are 10 related models from the Mark VIeS Series and other GE product lines:
| Model Number | Description | Key Parameters |
|---|---|---|
| IS220PDIAH1A | Digital Input/Output Module | 24 V dc, 16 Digital Inputs, 16 Digital Outputs, 138 x 86 x 56 mm, 0.9 kg |
| IS220PTURH1A | Turbine Control Module | 24 V dc, 8 Analog Inputs, 4 Analog Outputs, 138 x 86 x 56 mm, 0.91 kg |
| IS220PVIBH1A | Vibration Monitoring Module | 24 V dc, 8 Analog Inputs, 138 x 86 x 56 mm, 0.9 kg |
| IS220UCSAH1A | Safety Controller Module | 24 V dc, 16 Digital Inputs, 8 Digital Outputs, 138 x 86 x 56 mm, 0.91 kg |
| IS220PAICH1A | Analog Input Module | 24 V dc, 8 Analog Inputs, 138 x 86 x 56 mm, 0.9 kg |
| IS220PDOAH1A | Digital Output Module | 24 V dc, 16 Digital Outputs, 138 x 86 x 56 mm, 0.9 kg |
| IS220PROFH1A | Profibus Communication Module | 24 V dc, Profibus DP Interface, 138 x 86 x 56 mm, 0.91 kg |
| IS220ETHCCH1A | Ethernet Communication Module | 24 V dc, Ethernet Interface, 138 x 86 x 56 mm, 0.91 kg |
| IS220TBAIH1A | Terminal Board for Analog Inputs | Compatible with IS220PAICH1A, 138 x 86 x 56 mm, 0.9 kg |
| IS220TBAOH1A | Terminal Board for Analog Outputs | Compatible with IS220PAOCH1A, 138 x 86 x 56 mm, 0.9 kg |
Top 10 Popular GE Models
Here are 10 popular GE models across various product lines:
| Model Number | Description | Key Parameters |
|---|---|---|
| DS200DCFBG1B | Drive Control Board | 24 V dc, 16 Digital Inputs, 8 Digital Outputs, 200 x 150 x 50 mm, 1.2 kg |
| IC693ALG392 | Analog Input Module | 24 V dc, 8 Analog Inputs, 138 x 86 x 56 mm, 0.9 kg |
| IC693PWR321 | Power Supply Module | 120/240 V ac, 5 A Output, 138 x 86 x 56 mm, 0.8 kg |
| IC693CPU374 | CPU Module | 24 V dc, 16 MB Memory, 138 x 86 x 56 mm, 0.9 kg |
| DS200ADGIH1AAA | Analog Input/Output Board | 24 V dc, 8 Analog Inputs, 4 Analog Outputs, 200 x 150 x 50 mm, 1.1 kg |
| IS215ACLEH1A | Control Logic Module | 24 V dc, 16 Digital Inputs, 8 Digital Outputs, 138 x 86 x 56 mm, 0.91 kg |
| IS200VSVOH1B | Servo Control Module | 24 V dc, 4 Analog Outputs, 138 x 86 x 56 mm, 0.9 kg |
| IS215VCMIH2D | VME Communication Module | 24 V dc, Ethernet Interface, 138 x 86 x 56 mm, 0.91 kg |
| DS200LDCCH1ANA | Load Control Board | 24 V dc, 8 Digital Inputs, 8 Digital Outputs, 200 x 150 x 50 mm, 1.1 kg |
| IC694MDL940 | Digital Input/Output Module | 24 V dc, 32 Digital Inputs, 32 Digital Outputs, 138 x 86 x 56 mm, 0.9 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the operating temperature range of the IS220YAICS1A?
A1: The operating temperature range is -40°C to +70°C.
Q2: Can the IS220YAICS1A be used with IS400 terminal boards?
A2: Yes, it is compatible with IS400STAIS1A, IS400STAIS2A, and IS400TBAIS1C terminal boards.
Q3: What is the maximum current consumption of the IS220YAICS1A?
A3: The maximum current consumption is 0.49 A dc.
Q4: Does the IS220YAICS1A support 4-20 mA analog inputs?
A4: Yes, it supports 0-20 mA and -1-20 mA analog inputs.
Q5: What is the weight of the IS220YAICS1A?
A5: The weight is 0.907 kg.
Q6: Can the IS220YAICS1A be used in hazardous environments?
A6: Yes, it is designed to operate in harsh industrial environments.
Q7: What is the nominal power supply voltage for the IS220YAICS1A?
A7: The nominal power supply voltage is 27.4 V dc.
Q8: How many analog inputs does the IS220YAICS1A support?
A8: It supports 10 analog inputs (8 voltage/current inputs and 2 specialized inputs).
Q9: Is the IS220YAICS1A compatible with Mark VIe systems?
A9: Yes, it is specifically designed for the Mark VIeS Series.
Q10: What are the dimensions of the IS220YAICS1A?
A10: The dimensions are 138 x 86 x 56 mm.
