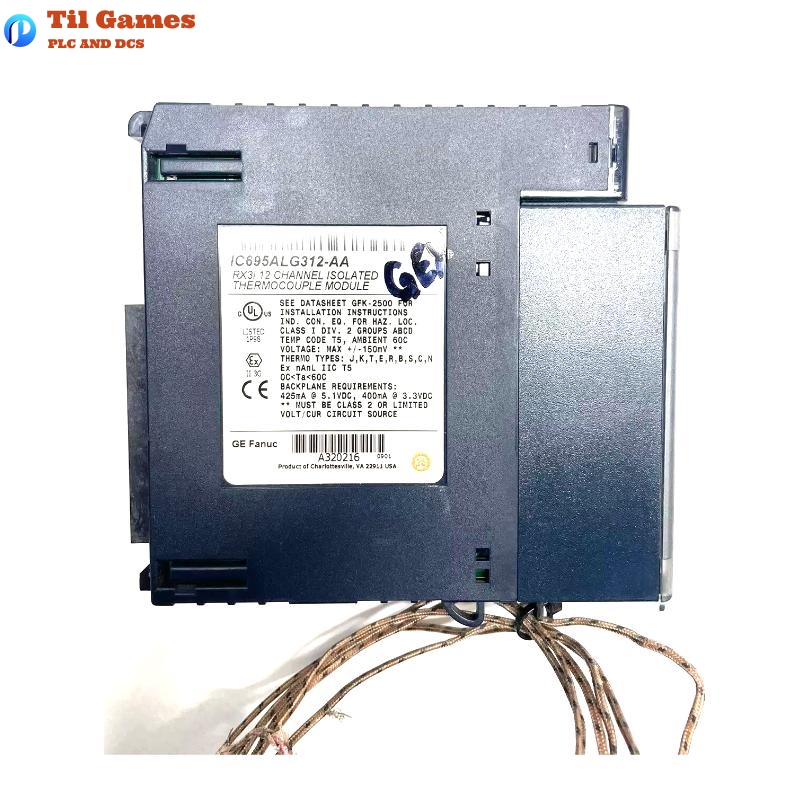

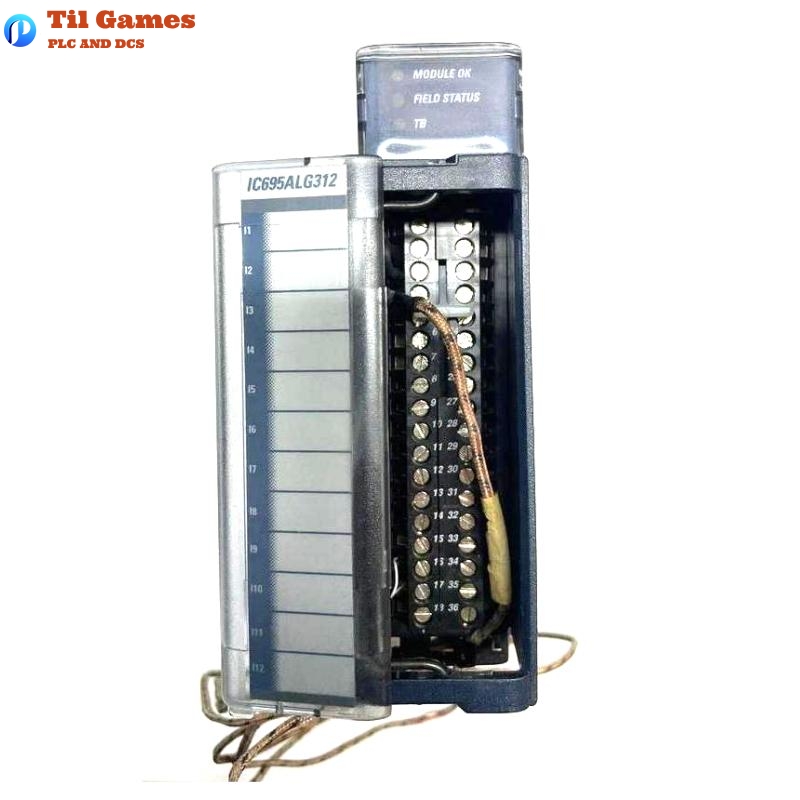

Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Channels | 12 individually isolated channels |
| Input Types | Thermocouple: J, K, T, E, R, S, B, N, C; Voltage: ±50 mV, ±150 mV |
| Resolution | 11.5–16 bits depending on filter setting and input type |
| Measurement Units | Degrees Celsius (°C), Fahrenheit (°F), or Voltage |
| Temperature Accuracy (TC, typical @ 25°C) | ±0.6°C (Type J); varies by thermocouple type and range |
| Voltage Accuracy | ±0.1% of span at 25°C; ±0.25% over full temperature range |
| Integration Time (12 channels) | Configurable from 15 ms to 120 ms |
| CJC Update Rate | Fixed at 20 Hz |
| Cold Junction Compensation | Optional (uses IC695ACC600 CJC sensor), individually selectable (CJC1, CJC2, Both) |
| Alarm Types Supported | Over/Under Range, High/Low, High-High/Low-Low, Open Wire, Rate of Change |
| Notch Filter Settings | 2.3 Hz, 4 Hz, 4.7 Hz, 24 Hz, 28 Hz |
| Update Time (All Channels) | 15 ms (28 Hz) to 120 ms (2.3 Hz), filter dependent |
| Power Dissipation | Max 3.5 W |
| Input Impedance (Voltage) | ≥ 500 kΩ |
| Isolation Voltage | 250 VAC continuous, 1500 VAC (1 min), 2550 VDC (1 s) |
| Channel-to-Channel Crosstalk | Minimum 70 dB |
| Normal Mode Noise Rejection | 67 dB to 80 dB depending on filter |
| Common Mode Rejection | 100 dB at 50/60 Hz |
| Diagnostics | Per channel and module: Configurable; includes status LEDs and reference mapping |
| Supported Terminal Blocks | IC694TBB032, IC694TBB132, IC694TBS032, IC694TBS132 (ordered separately) |
| Backplane Power Requirements | 3.3V @ 400 mA, 5.1V @ 425 mA |
| Channel Data Format | 16-bit integer or 32-bit IEEE floating point |
| Dimensions (W x H x D) | 34 × 145 × 140 mm |
| Weight | 0.41 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of thermocouples are supported by the IC695ALG312?
A1: The module supports J, K, T, E, R, S, B, N, and C type thermocouples.
Q2: Can I configure individual channels with different thermocouple types?
A2: Yes, each of the 12 channels can be individually configured with a specific thermocouple type or voltage input.
Q3: Is the module hot-swappable during operation?
A3: Yes, the IC695ALG312 supports Removal and Insertion Under Power (RIUP), allowing hot-swapping.
Q4: What is the resolution range for this module?
A4: Resolution varies based on filter settings and input type, ranging from 11.5 to 16 effective bits.
Q5: How does the module perform cold junction compensation?
A5: It uses external CJC sensors (IC695ACC600) installed on the terminal block. You can configure compensation from none, CJC1, CJC2, or both.
Q6: What happens if a thermocouple wire breaks or disconnects?
A6: The module detects open wire conditions and can report the fault via diagnostics and fault tables.
Q7: Are there onboard filters to reduce signal noise?
A7: Yes, the module supports programmable notch filters with selectable frequencies (2.3 Hz to 28 Hz).
Q8: Does the module support diagnostic or alarm signaling to the CPU?
A8: Yes, it provides configurable diagnostics, fault logging, and even interrupts to handle alarm events per channel.
