Technical Specifications and Features
| Category | Details |
|---|---|

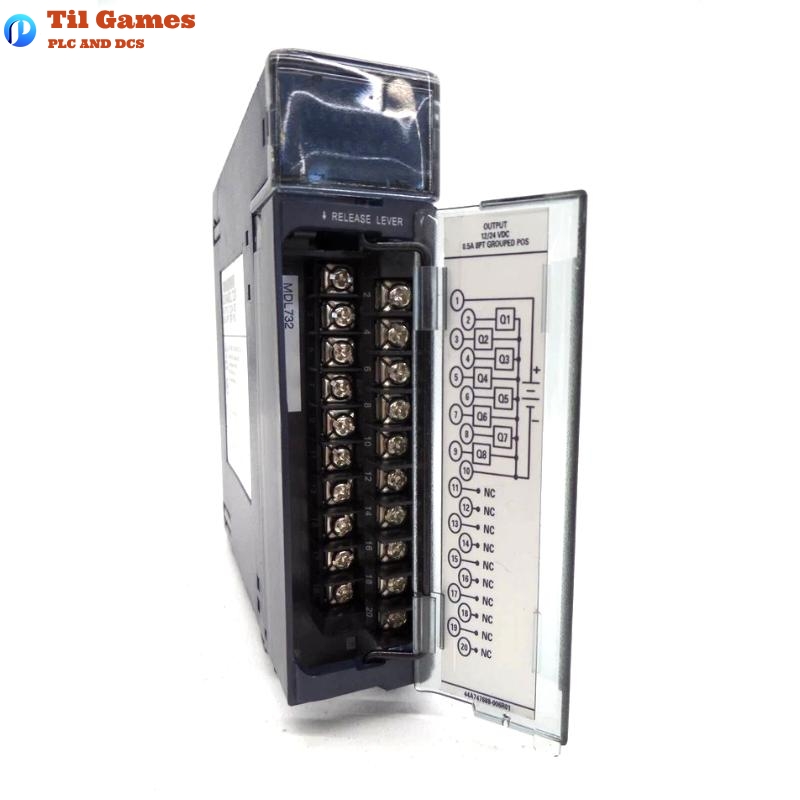

| Product Model | IC694MDL732B |
| Product Family | PACSystems RX3i DC Voltage Output Module |
| Output Voltage Range | 12–24 VDC |
| Logic Type | Positive logic |
| Number of Output Points | 8 |
| Output Type | Transistor |
| Load Current per Point | 0.5 A max |
| Response Time | 2 ms ON / 2 ms OFF |
| Points per Common | 8 |
| Isolation | Not Isolated |
| Diagnostics | Not available |
| Internal Power Usage | 50 mA @ 5 VDC |
| Connector Type | Terminal Block (20 screws), included with the module |
| Backplane Requirements | No restrictions; occupies 1 slot on the RX3i backplane |
| Module Type | Discrete Output |
| Lifecycle Status | Active |
| Dimensions (W x H x D) | 34 mm x 145 mm x 140 mm |
| Weight | 0.91 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of devices can the IC694MDL732B control?
A1: The module is designed to control DC-powered output devices such as indicator lamps, solenoids, and relays operating at 12 to 24 VDC.
Q2: Is the IC694MDL732B output isolated?
A2: No, this module does not provide output isolation.
Q3: What is the current capacity for each output point?
A3: Each output point can handle up to 0.5 A of load current.
Q4: What type of connector is used for wiring this module?
A4: The module includes a 20-screw terminal block for wiring connections.
Q5: Can this module be installed in any RX3i backplane slot?
A5: Yes, the module has no backplane slot restrictions and uses one slot.
Q6: What is the response time of the outputs on this module?
A6: The output response time is 2 milliseconds for both ON and OFF transitions.
Q7: Does the IC694MDL732B include any form of built-in diagnostics?
A7: No, this module does not support diagnostic features.
Q8: What are the dimensions and weight of the IC694MDL732B?
A8: The module measures 34 x 145 x 140 mm and weighs approximately 0.91 kg.
