Technical Parameters

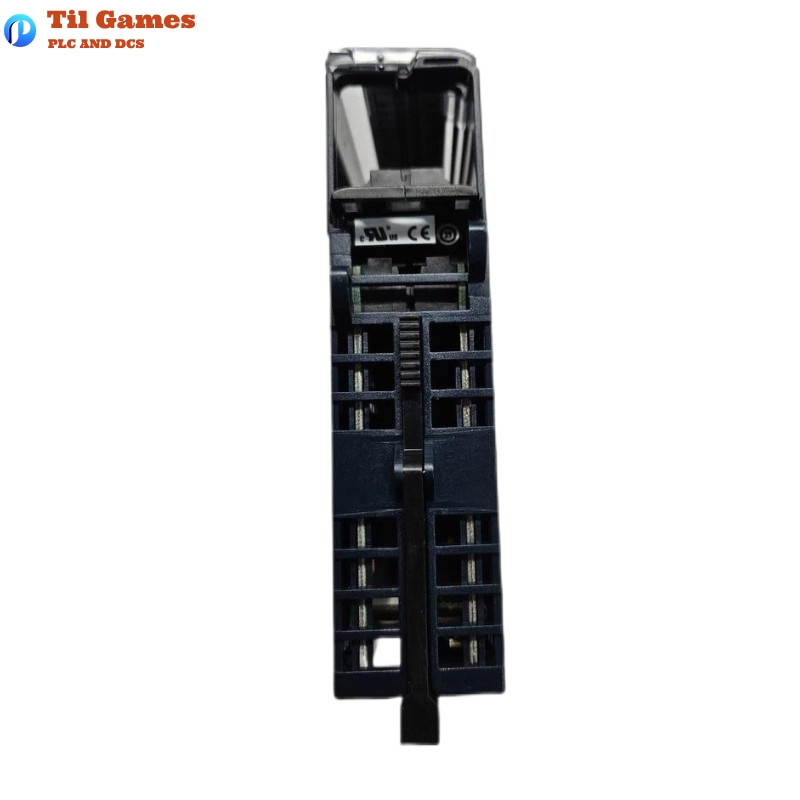

| Parameter | Specification |
|---|---|
| Model Number | IC694MDL660 |
| Product Type | 24VDC Positive/Negative Logic Input Module |
| Input Type | Discrete Inputs (Positive or Negative Logic) |
| Number of Inputs | 32 points (4 isolated groups of 8 inputs each) |
| Input Voltage Range | 0 to 30 VDC |
| Rated Input Voltage | 24 VDC |
| Input Current | 7.0 mA per point typical at 24 VDC |
| On-State Voltage | 11.5 to 30 VDC |
| Off-State Voltage | 0 to 5 VDC |
| On-State Current | Minimum 3.2 mA |
| Off-State Current | Maximum 1.1 mA |
| Input Filter Times | Selectable: 0.5 ms, 1 ms, 2 ms, 5 ms, 10 ms, 50 ms, 100 ms |
| Isolation (Field to Backplane) | 250 VAC continuous / 1500 VAC for 1 minute (optical isolation) |
| Isolation (Group to Group) | 250 VAC continuous / 1500 VAC for 1 minute |
| On/Off Response Time | Matches filter time setting |
| Diagnostics | Terminal block presence detection and notification |
| Status Indicators | 32 green LEDs (point status), 1 TB red/green LED (terminal block status) |
| Terminal Block Compatibility | Box-style (IC694TBB032) or Spring-style (IC694TBS032) – ordered separately |
| Module ID | 0x058h |
| Power Consumption | 300 mA from 5V backplane bus (with all inputs ON) |
| Installation Slot | Any RX3i I/O slot (requires RX3i CPU, release 2.90 or later) |
| Dimensions (W x H x D) | 34 x 145 x 140 mm |
| Weight | 0.91 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of logic inputs does the IC694MDL660 support?
A1: It supports both positive and negative logic discrete inputs.
Q2: How many input points are available on this module?
A2: The module provides 32 input points divided into four isolated groups of 8.
Q3: Can the input filter time be customized?
A3: Yes, the module offers seven selectable input filter times ranging from 0.5 ms to 100 ms.
Q4: What is the operating voltage range for the inputs?
A4: The input voltage range is 0 to 30 VDC, with a rated voltage of 24 VDC.
Q5: Is the terminal block included with the module?
A5: No, the terminal block must be ordered separately. It is compatible with IC694TBB032 or IC694TBS032.
Q6: How is the module installed within an RX3i system?
A6: It can be installed in any I/O slot of an RX3i system but requires an RX3i CPU with firmware release 2.90 or later.
Q7: What happens if the terminal block is not properly locked?
A7: The TB LED will turn red, and a diagnostic message will be sent to the CPU indicating the loss of the terminal block.
Q8: What are the isolation ratings of this module?
A8: The module provides 250 VAC continuous and 1500 VAC for 1 minute isolation both field-to-backplane and group-to-group.
