Product Technical Specifications
| Parameter | Description |
|---|---|

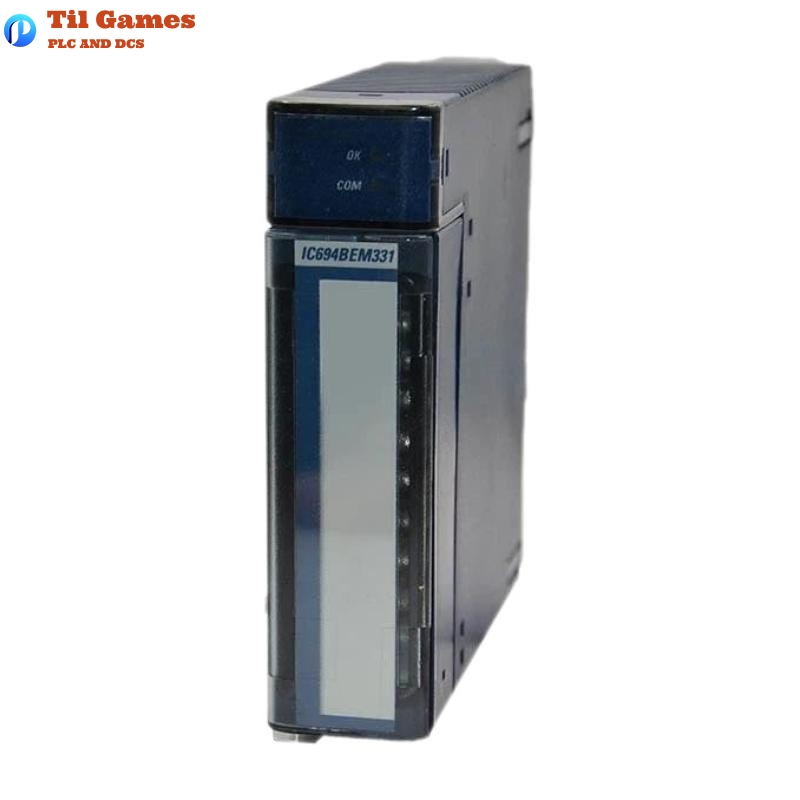

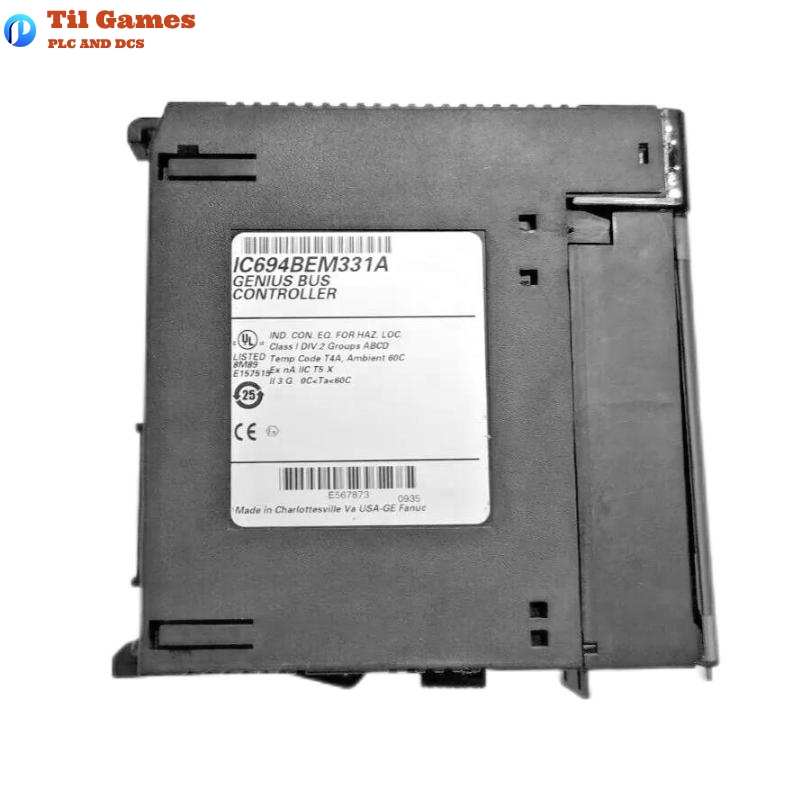

| Product Model | IC694BEM331 |
| Product Type | Genius Bus Controller Module |
| Series | PACSystems RX3i |
| Protocol Supported | Genius Bus |
| Bus Speed | 153.6 Kbaud |
| Maximum Network Distance | 7500 ft (2286 m) @ 38.4 Kbaud 4500 ft (1371 m) @ 76.8 Kbaud 3500 ft (1066 m) @ 153.6 Kbaud extended 2000 ft (609 m) @ 153.6 Kbaud standard |
| Number of Drops Supported | 32 |
| Connector Type | Screw Terminal |
| Power Consumption | 300 mA @ 5 VDC |
| Module Slot Occupation | 1 Slot |
| Communication Ports | Screw Terminal |
| Message Size | 244 bytes input / 244 bytes output |
| Diagnostics | Supported (includes alarms) |
| Installation Location | CPU Rack Only |
| Internal Bus Architecture | PCI Bus |
| Dimensions (H × W × D) | 34 x 145 x 140 mm |
| Weight | 0.37 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the function of the IC694BEM331 module?
A1: The IC694BEM331 functions as a Genius Bus Controller for GE PACSystems RX3i, enabling the controller to communicate with I/O and other devices on a Genius bus network.
Q2: How many devices can be connected to the Genius bus controlled by IC694BEM331?
A2: The module supports up to 32 drops (devices) on a single Genius bus network.
Q3: What kind of connector does the IC694BEM331 use for communication?
A3: The module utilizes a screw terminal for Genius bus communication wiring.
Q4: Can the IC694BEM331 be used on any rack in the RX3i system?
A4: No, this module must be installed in the CPU rack. It is not suitable for remote or expansion racks.
Q5: What are the power requirements of the IC694BEM331?
A5: The module requires 300 mA at 5 VDC from the RX3i backplane power supply.
Q6: What is the maximum data rate supported by the Genius bus on this module?
A6: The module communicates at a maximum Genius bus speed of 153.6 Kbaud.
Q7: Does the module support diagnostics features?
A7: Yes, the IC694BEM331 supports diagnostic features including alarm generation for bus communication issues.
Q8: What is the maximum cable length supported by the Genius network with this module?
A8: The maximum length varies with baud rate, up to 7500 feet (2286 meters) at 38.4 Kbaud, and 2000 feet (609 meters) at 153.6 Kbaud standard.
