Product Overview

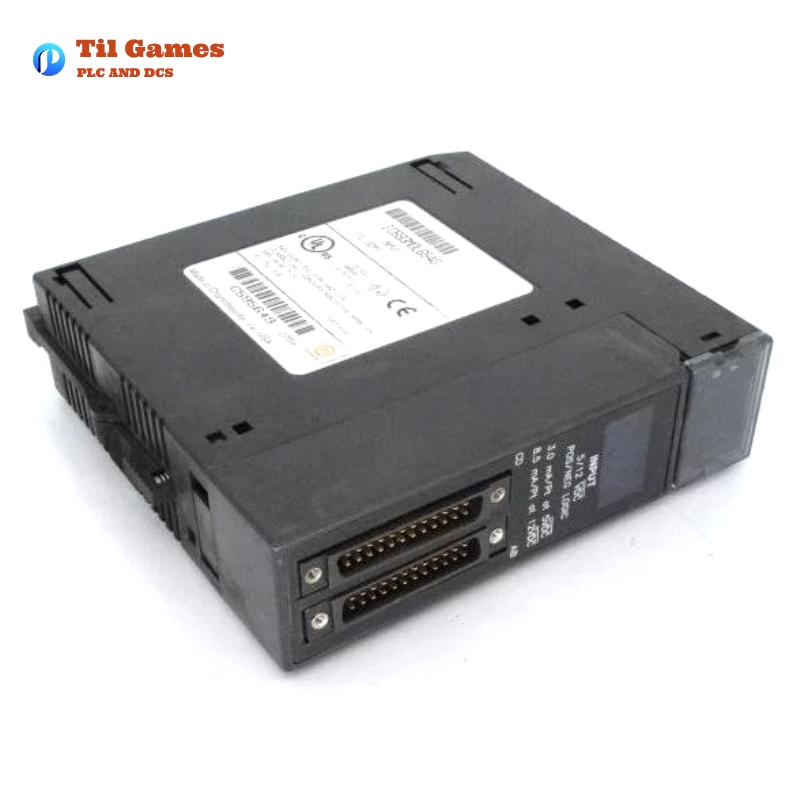

The GE IC693MDL654G is a 32-point TTL-compatible Discrete Input Module designed for the Series 90-30 Programmable Logic Controller (PLC) system. It supports both positive and negative logic and is used for high-density digital input applications. The module provides four isolated input groups with eight inputs each, and it features flexible power options, opto-isolated circuitry, and reliable status indication for each channel through individual LEDs.
This module is ideal for interfacing low-voltage DC digital signals, particularly in environments where compact input density and compatibility with TTL logic levels are critical.
Technical Specifications
| Parameter | Description |
|---|---|
| Part Number | IC693MDL654G |
| Input Type | Discrete TTL, Positive/Negative Logic |
| Number of Input Points | 32 (4 groups of 8 inputs) |
| Rated Voltage | 5 to 12 VDC |
| Input Voltage Range | 0 to 15 VDC |
| Input Current | 3.0 mA (typical @ 5 VDC), 8.5 mA (typical @ 12 VDC) |
| ON-State Voltage | 4.2 to 15 VDC |
| OFF-State Voltage | 0 to 2.6 VDC |
| ON-State Current | Minimum 2.5 mA |
| OFF-State Current | Maximum 1.2 mA |
| ON/OFF Response Time | Max 1 ms |
| Isolation Field/Logic Side | 1500 V RMS |
| Group-to-Group Isolation | 250 V RMS |
| Power Consumption | Max 195 mA from +5V bus (internal supply); 96 mA (typical @ 5 VDC) |
| Internal Isolated Supply | +5 VDC ±5%, 150 mA (typical) |
| Connector Type | Two 24-pin male Fujitsu FCN-365P024-AU |
| Mounting | Any I/O slot in a 5- or 10-slot baseplate |
| LED Indicators | One per input point (total 32 LEDs) |
| Dimensions (H x W x D) | 142 x 30 x 130 mm |
| Weight | 0.58 kg |
Key Features
-
Supports both positive and negative logic input
-
TTL-compatible discrete input points
-
Four independently isolated input groups
-
On-module +5V power source (optional use)
-
Opto-isolated logic for enhanced safety
-
Fast response time of 1 ms
-
LED indicators for visual status of each input
-
Backplane and group isolation
-
Suitable for compact, high-density input applications
Advantages
-
High Input Density: 32 discrete channels in a single module.
-
Flexible Power Options: Choice between internal or external supply for field wiring.
-
Strong Electrical Isolation: Ensures system safety and noise immunity.
-
Fast Switching: 1 ms ON/OFF response improves real-time control.
-
Modular Design: Easily integrates into Series 90-30 PLC systems.
-
User-Friendly Diagnostics: Built-in status LEDs simplify troubleshooting.
Applications
-
Industrial automation and machinery control
-
TTL signal interfacing in embedded systems
-
Automotive and packaging systems
-
Electronics assembly and test environments
-
Data acquisition systems
-
PLC-based input scanning for low-voltage devices
Recent Technical Publication Title
-
“Enhanced Compatibility of TTL-Based Input Modules in Compact Industrial Control Systems”
Recommended Related Models (Same Series or Compatible)
| Model Number | Description | Input/Output | Voltage Range | No. of Points | Dimensions (mm) | Weight |
|---|---|---|---|---|---|---|
| IC693MDL653 | 5VDC TTL Input Module (Positive Logic) | Input | 0–5 VDC | 32 | 142 x 30 x 130 | 0.57 kg |
| IC693MDL645 | 24VDC Input, Positive Logic | Input | 0–30 VDC | 32 | 142 x 30 x 130 | 0.59 kg |
| IC693MDL646 | 24VDC Input, Negative Logic | Input | 0–30 VDC | 32 | 142 x 30 x 130 | 0.59 kg |
| IC693MDL241 | AC/DC Input Module | Input | 0–120 V | 8 | 142 x 30 x 130 | 0.58 kg |
| IC693MDL330 | AC Output Module | Output | 0–240 V | 8 | 142 x 30 x 130 | 0.60 kg |
| IC693MDL340 | Relay Output Module | Output | 5–30 VDC/120 VAC | 8 | 142 x 30 x 130 | 0.63 kg |
Recommended Popular GE Models
| Model Number | Description | Input/Output | Voltage Range | No. of Points | Dimensions (mm) | Weight |
|---|---|---|---|---|---|---|
| IC693CPU374 | High-Performance CPU with Ethernet | CPU | N/A | N/A | 142 x 40 x 140 | 0.62 kg |
| IC693MDL740 | 12/24 VDC Output Module | Output | 12–24 VDC | 16 | 142 x 30 x 130 | 0.58 kg |
| IC693ALG223 | Analog Voltage Input Module (4-channel) | Input | ±10 V | 4 | 142 x 30 x 130 | 0.57 kg |
| IC693ALG390 | Analog Current Output Module (2-channel) | Output | 4–20 mA | 2 | 142 x 30 x 130 | 0.58 kg |
| IC693CHS398 | 10-Slot Baseplate | N/A | N/A | N/A | 330 x 60 x 160 | 0.95 kg |
| IC693PWR330 | High-Capacity Power Supply | Power | 120/240 VAC | N/A | 142 x 50 x 140 | 0.70 kg |
If you need cabling or terminal accessories, consider using:
-
IC693CBL327 / IC693CBL328: Pre-wired cables
-
IC693ACC310: Slot filler module
-
Compatible terminal blocks: Fujitsu FCN-365P024-AU
Let me know if you’d like datasheets for any of the recommended modules or more model comparisons.
FAQ
Frequently Asked Questions (FAQ)
Q1: What logic type is supported by the IC693MDL654G module?
A1: The module supports both positive and negative TTL logic input types.
Q2: Can the internal +5V supply be used to power the field inputs?
A2: Yes, the internal supply can be used by jumper configuration, but this adds load to the backplane power.
Q3: What kind of electrical isolation does the module provide?
A3: The module provides 1500V isolation between the logic and field side, and 250V between groups.
Q4: How many input groups are included and are they isolated?
A4: There are 4 groups of 8 inputs each, and they are isolated from each other.
Q5: What is the maximum input current supported by this module?
A5: Typical ON current is 3.0 mA at 5 VDC and 8.5 mA at 12 VDC.
Q6: Is there any visual indicator for each input point?
A6: Yes, each input point has a dedicated LED indicator for ON/OFF status.
Q7: Where can this module be installed within the PLC system?
A7: It can be installed in any I/O slot of a 5 or 10-slot baseplate in the Series 90-30 system.
Q8: Are any special diagnostics or alarms reported by this module?
A8: No special fault or alarm diagnostics are supported; visual LEDs indicate input status.
