Product Description

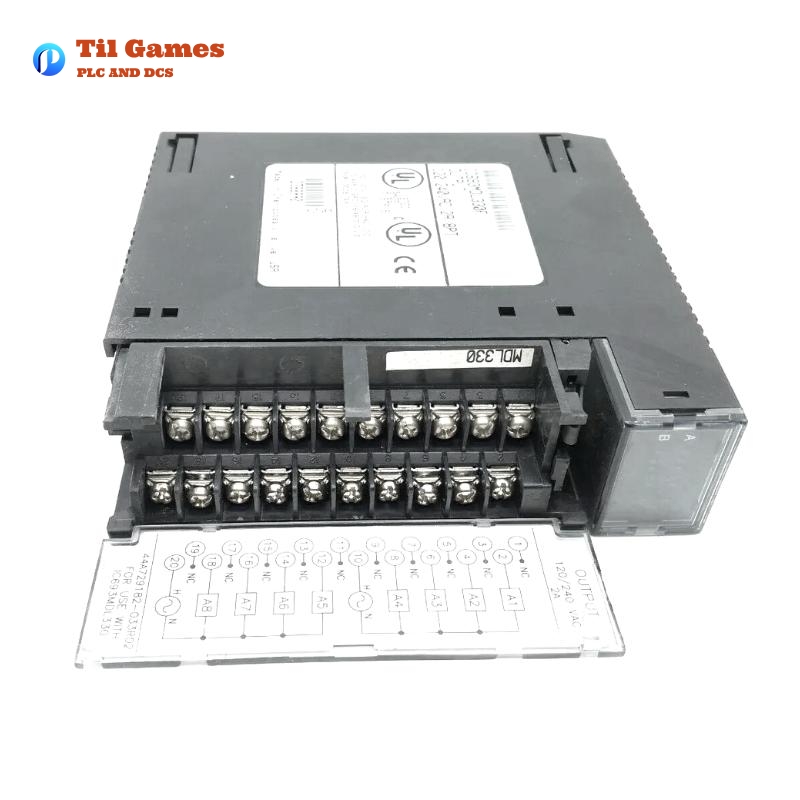

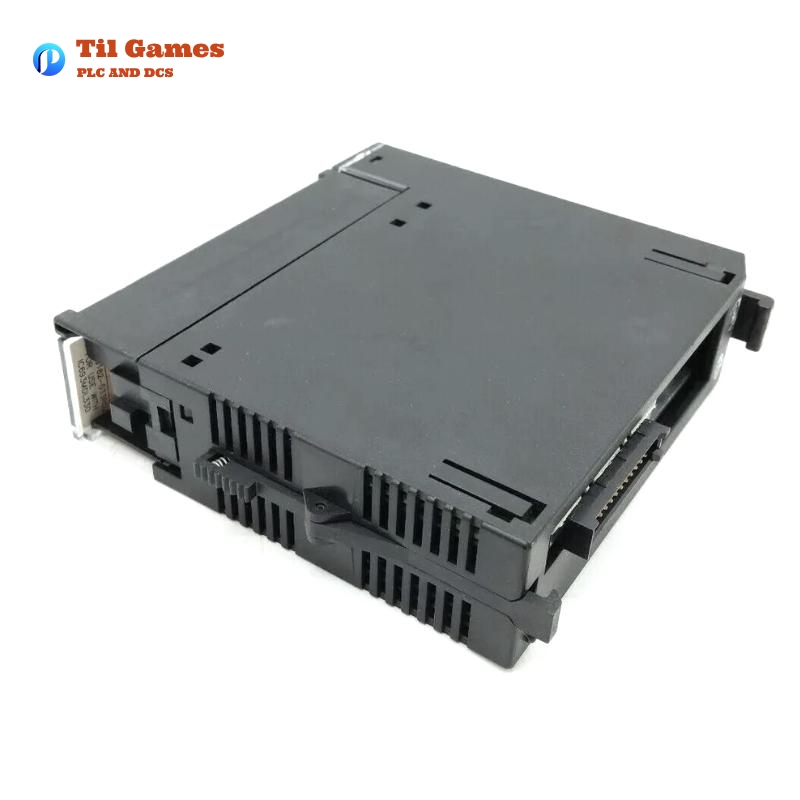

The GE IC693MDL330 is an 8-point AC voltage output module designed for use with the GE Fanuc Series 90-30 PLC system. It delivers high-reliability signal control in industrial environments, particularly in applications requiring switching of 120/240 VAC loads. Each output can deliver up to 2 Amps, and outputs are grouped into two isolated sets of four channels each.
This module is engineered with internal protection features such as 5A fuses per group, RC snubbers for transient suppression, and blown fuse LED indication. It is especially suited for inductive and incandescent load switching, offering a high inrush current capability (up to 20A for one cycle).
The module includes green LEDs for channel output status and a red LED for fuse status. It installs in any I/O slot of a 5-slot or 10-slot baseplate.
Technical Specifications
| Parameter | Description |
|---|---|
| Module Type | AC Voltage Output Module |
| Catalog Number | IC693MDL330 |
| Number of Output Points | 8 (two isolated groups of 4) |
| Rated Voltage | 120/240 VAC |
| Output Voltage Range | 85–264 VAC, 50/60 Hz |
| Output Current per Point | 2 Amps max |
| Output Current per Group | 4 Amps max (at 40°C) |
| Minimum Load Current | 100 mA |
| Inrush Current | 20 Amps for one cycle |
| Output Voltage Drop | 1.5V max |
| Output Leakage Current | 3 mA max @ 120 VAC, 6 mA max @ 240 VAC |
| On Response Time | ≤ 1 ms |
| Off Response Time | ≤ 0.5 cycle |
| Group Isolation | 500 V between groups |
| Field/Logic Isolation | 1500 V |
| Power Consumption | 160 mA from 5V backplane (all outputs ON) |
| Internal Fusing | 5A per group |
| Status Indicators | 8 green output LEDs, 1 red fuse indicator LED |
| Dimensions (H x W x D) | 142 mm x 30 mm x 130 mm |
| Weight | 0.35 kg |
Product Features
-
8 output channels in two isolated groups (4 each)
-
120/240 VAC operation with broad compatibility range (85–264 VAC)
-
High inrush current capacity: 10× rated current
-
Individual group fusing with visual indication
-
RC snubbers on all channels for noise suppression
-
Flexible phase usage between groups
-
Clear LED indicators for output status and fuse diagnostics
-
Mountable in any I/O slot of a GE Series 90-30 system
Advantages
-
High Load Capacity: Supports up to 2A per output, 4A per group
-
Electrical Isolation: 1500V field-to-logic isolation for safety
-
Diagnostic Indicators: Quick fault identification with status LEDs
-
Installation Flexibility: Fits in both 5-slot and 10-slot baseplates
-
High Durability: Withstands transient surges and inrush conditions
-
Reduced Downtime: Integrated fuse-blown LED minimizes troubleshooting time
Typical Applications
-
Industrial automation and control systems
-
HVAC systems with high inductive load switching
-
Conveyor and motor control operations
-
Machine tool power distribution control
-
Lighting control systems with high voltage demands
-
Energy management systems with AC actuation
Latest Report Headlines
-
“GE Fanuc Enhances PLC Output Capabilities with Upgraded IC693MDL330 Module”
-
“Series 90-30 Continues to Deliver Robust Industrial Performance in High Voltage Output Control”
-
“GE IC693MDL330 Demonstrates Field-Proven Reliability in Multi-Phase Power Control Applications”
Related Models in Series 90-30
| Model Number | Description | Points | Voltage Range | Output Type |
|---|---|---|---|---|
| IC693MDL240 | AC Input Module | 8 | 120 VAC | AC Input |
| IC693MDL241 | AC/DC Input Module | 16 | 120 VAC/VDC | AC/DC Input |
| IC693MDL250 | Relay Output Module | 8 | — | Form A Relay |
| IC693MDL310 | DC Output Module (Negative Logic) | 8 | 12/24 VDC | DC Output |
| IC693MDL340 | DC Output Module (Positive Logic) | 16 | 12/24 VDC | DC Output |
| IC693MDL390 | 120 VAC Output Module (2A) | 8 | 85–132 VAC | AC Output |
Popular GE Models Across Series
| Model Number | Description | Points | Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| IC693CPU374 | Ethernet-enabled CPU Module | — | CPU | 142 x 30 x 130 | 0.45 |
| IC693MDL645 | High-Density DC Output (Sink) Module | 32 | 24 VDC Output | 142 x 30 x 130 | 0.32 |
| IC693ALG223 | Analog Voltage Output Module | 4 | 0–10V Output | 142 x 30 x 130 | 0.38 |
| IC693ALG391 | Analog Current Input Module | 8 | 4–20mA Input | 142 x 30 x 130 | 0.38 |
| IC693PWR330 | High-Capacity Power Supply | — | Power Supply | 142 x 40 x 130 | 0.60 |
| IC693CMM321 | Ethernet Communication Interface | — | Communication | 142 x 30 x 130 | 0.35 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main function of the IC693MDL330 module?
A1: It is used to control 120/240 VAC devices by switching AC loads via its 8 discrete outputs.
Q2: Can the IC693MDL330 support inductive loads like solenoids or motors?
A2: Yes, it supports high inrush current (20A for 1 cycle), ideal for inductive loads.
Q3: Are the outputs grouped for isolation?
A3: Yes, outputs are grouped into two isolated sets of 4 channels, each with its own common.
Q4: Does the module provide any feedback if a fuse is blown?
A4: Yes, a red LED indicator on the module lights up if a group fuse is blown.
Q5: What happens if more than 2A is drawn from an individual output?
A5: The group fuse will blow to protect the circuit, and the red “F” LED will indicate the fault.
Q6: Is the IC693MDL330 hot-swappable?
A6: No, the module should be inserted or removed with power off to ensure safety.
Q7: Can this module operate with DC voltage?
A7: No, it is designed only for AC voltage operation between 85–264 VAC.
Q8: What is the required backplane power consumption for this module?
A8: The IC693MDL330 draws 160 mA from the 5V bus on the PLC backplane.
