Product Overview

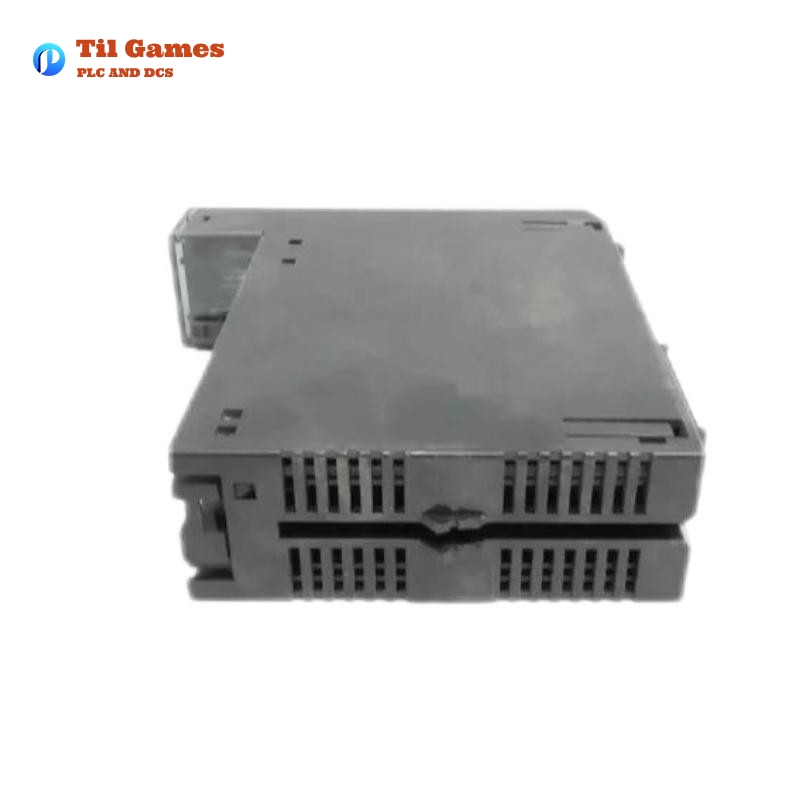

The GE IC693MDL240G is a 16-point, 120 VAC discrete input module from the GE Fanuc Series 90-30 Programmable Logic Controller family. This module is designed to interface AC voltage signals from field input devices, such as pushbuttons, selector switches, or limit switches, directly into the PLC system. Each input point is optically isolated to protect the logic side from field-side transients and provides reliable signal detection in industrial environments.
The module is particularly suited for applications requiring robust and noise-immune AC signal interfacing in automated systems and machine control environments. The IC693MDL240G can be mounted in any I/O slot of a 5-slot or 10-slot baseplate.
Product Features
-
16 AC voltage input points with a single common terminal
-
Designed for 120 VAC operation (input range 0–132 VAC)
-
Field side to logic side isolation: 1500 V RMS
-

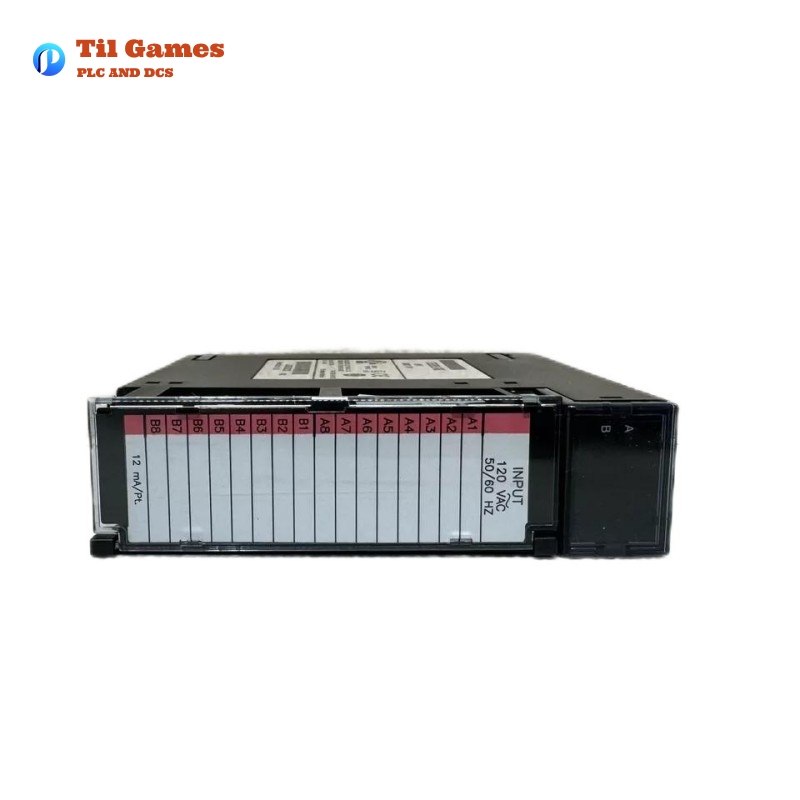

LED status indicators for all 16 input points (A1–A8 and B1–B8)
-
Insert with circuit identification and wiring diagram
-
Color-coded red insert for high-voltage identification
-
Reactive input circuit design (resistor/capacitor combination)
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC693MDL240G |
| Input Type | Discrete (Digital), AC |
| Number of Points | 16 (Single group with shared common) |
| Input Voltage Range | 0 to 132 VAC, 50/60 Hz |
| Rated Voltage | 120 VAC |
| Input Current | 12 mA (typical) @ rated voltage |
| Input On-State Voltage | 74 to 132 VAC |
| Input Off-State Voltage | 0 to 20 VAC |
| Input On-State Current | ≥ 6 mA |
| Input Off-State Current | ≤ 2.2 mA |
| On Response Time | ≤ 30 ms |
| Off Response Time | ≤ 45 ms |
| Isolation | 1500 V RMS (field to logic) |
| Backplane Current Draw | 90 mA (all inputs ON) |
| Operating Temperature | 0 to 60°C |
| Dimensions (W x H x D) | 142 mm x 130 mm x 30 mm |
| Weight | 0.3 kg |
Advantages
-
High Voltage Isolation: 1500 V RMS field-to-logic isolation ensures safety and signal integrity.
-
LED Indicators: Visual diagnostics for each channel reduce troubleshooting time.
-
Wiring Flexibility: Supports a variety of input devices such as limit switches, pushbuttons, and proximity sensors.
-
Standard Mounting: Compatible with Series 90-30 baseplates for easy integration.
-
Durable Construction: Industrial-grade design suited for demanding environments.
Applications
-
Factory automation systems
-
Material handling equipment
-
Packaging machinery
-
HVAC system controllers
-
Industrial process control panels
-
Municipal utility control stations
Latest Product Report Title
“Enhanced Reliability in Harsh Environments with GE Series 90-30 IC693MDL240G Input Modules”
Recommended Related Models from the Same Series
| Model Number | Description | Input/Output Type | Number of Points | Voltage/Current |
|---|---|---|---|---|
| IC693MDL230 | AC Input Module | Discrete Input | 8 | 120 VAC |
| IC693MDL241 | AC Input Module | Discrete Input | 32 | 120 VAC |
| IC693MDL250 | DC Input Module | Discrete Input | 32 | 24 VDC |
| IC693MDL340 | Relay Output Module | Discrete Output | 16 | 2A per point, 120/240V |
| IC693MDL730 | DC Output Module | Discrete Output | 8 | 24 VDC, 0.5A |
| IC693MDL645 | Isolated Output Module | Discrete Output | 32 | 5–24 VDC |
Recommended Popular GE Models
| Model Number | Description | Function Type | Number of Points | Voltage/Current |
|---|---|---|---|---|
| IC693CPU374 | High-Performance CPU with Ethernet | CPU | N/A | Dual Ethernet Ports |
| IC693PWR321 | Standard Power Supply | Power Supply | N/A | 120/240 VAC, 125 VDC |
| IC693ALG223 | Analog Input Module | Analog Input | 4 Channels | 4–20 mA |
| IC693ALG391 | Analog Output Module | Analog Output | 2 Channels | 0–10 V or 4–20 mA |
| IC693CMM321 | Ethernet Interface Module | Communication | N/A | 10Base-T |
| IC693ACC302 | Battery Module | Accessory | N/A | Lithium Backup |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of input signals is the IC693MDL240G designed to handle?
A1: It is designed to handle 120 VAC discrete signals from field devices such as switches and sensors.
Q2: Can this module be used with DC input signals?
A2: No, the IC693MDL240G is intended strictly for AC voltage inputs ranging from 0 to 132 VAC.
Q3: What is the isolation voltage between field and logic sides?
A3: The module offers 1500 V RMS isolation to protect internal PLC circuits.
Q4: How many inputs can be simultaneously turned on at higher temperatures?
A4: At 60°C, up to 9 inputs can be on simultaneously. At lower temperatures, up to 16 inputs can be on.
Q5: How are the input status indications provided?
A5: Each input point has a corresponding green LED for ON/OFF status indication.
Q6: What is the module’s response time for signal transitions?
A6: The ON response time is a maximum of 30 ms, while OFF response time is a maximum of 45 ms.
Q7: Can the IC693MDL240G be installed in any slot on a baseplate?
A7: Yes, it can be installed in any I/O slot of a 5-slot or 10-slot baseplate.
Q8: What devices are commonly connected to this module?
A8: Typical connected devices include pushbuttons, selector switches, and proximity sensors operating at 120 VAC.
