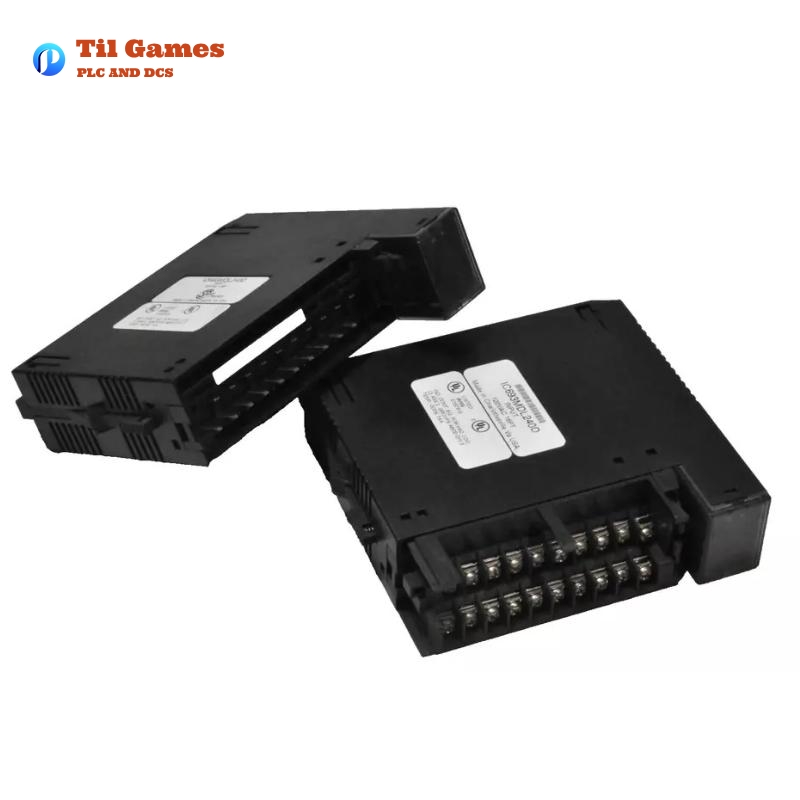

Product Overview – GE IC693MDL240 Series 90-30 AC Voltage Input Module
The GE IC693MDL240 is a 120 VAC Discrete Input Module designed for the GE Series 90-30 Programmable Logic Controller (PLC) family. This module provides 16 input points organized in a single group with a shared common. It accepts standard 120V AC input signals and is ideal for use with a variety of field devices such as limit switches, pushbuttons, and proximity switches.
This module is built with a resistor-capacitor input circuit and incorporates optical isolation between field inputs and logic. It ensures reliable signal detection and consistent status monitoring, with individual LED indicators for each input channel. The module is also high-voltage color-coded for easy identification and safety.
Product Specifications
| Parameter | Specification |
|---|---|
| Module Name | IC693MDL240 |
| Type | Discrete Input Module |
| Voltage Rating | 120 Volts AC |
| Input Voltage Range | 0 to 132 Volts AC, 50/60 Hz |
| Input Points per Module | 16 (1 group, single common) |
| Input Circuit Type | Reactive (resistor/capacitor), optically isolated |
| Isolation Voltage | 1500 Volts RMS (field to logic) |
| Typical Input Current | 12 mA at 120V AC |
| On-State Voltage Range | 74 to 132 Volts AC |
| Off-State Voltage Range | 0 to 20 Volts AC |
| On-State Current | ≥6 mA |
| Off-State Current | ≤2.2 mA |
| On Response Time | 30 ms max |
| Off Response Time | 45 ms max |
| Module Current Consumption | 90 mA (from 5V bus, all inputs ON) |
| Mounting | Standard I/O Slot (5- or 10-slot baseplate) |
| LED Indicators | 16 (Individual for each channel) |
| Dimensions (W x D x H) | 142 x 30 x 130 mm |
| Weight | 0.3 kg |
Key Features
-
16-channel AC input support with a common terminal block.
-
Input signal compatibility from 74–132 VAC.
-
Designed for safe and flexible connection to a wide range of field devices.
-
LED indicators for real-time input channel diagnostics.
-
Red-colored edge insert for high-voltage identification.
-
Fully compatible with Series 90-30 rack and baseplate infrastructure.
Advantages
-
High Signal Isolation: 1500V RMS between logic and field ensures electrical safety.
-
Wide Voltage Tolerance: Operates within 0 to 132 VAC, accommodating voltage fluctuations.
-
Compact Design: Saves panel space while offering 16 inputs in a single unit.
-
Integrated Diagnostics: LED indicators allow quick visual identification of signal status.
-
Reliable in Harsh Conditions: Designed to withstand industrial electrical noise.
-
Ease of Integration: Fits any I/O slot in a standard 5- or 10-slot Series 90-30 baseplate.
Applications
-
Industrial automation and process control
-
Factory machine control systems
-
Conveyor and material handling systems
-
Safety interlock status monitoring
-
Infrastructure monitoring and control (e.g., utilities)
-
Building management systems
Latest Report Headlines
“GE Fanuc Series 90-30 Discrete Modules Remain Industrial Standard for Reliability in 2025 Upgrade Programs”
“IC693MDL240 Stays Preferred in OEM Retrofitting for Mid-Voltage Sensing in Harsh Environments”
“Series 90-30 Input Modules Pass Rigorous Field Reliability Testing in Utilities Automation Projects”
Related Models in the Same or Compatible Series
| Model Number | Type | Voltage Range | Inputs/Outputs | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| IC693MDL241 | AC Input Module | 240 VAC | 16 Inputs | 142 x 30 x 130 | 0.3 |
| IC693MDL250 | DC Input Module | 5/12/24 VDC | 32 Inputs | 142 x 30 x 130 | 0.3 |
| IC693MDL260 | Relay Output Module | 120/240 VAC, 5–30 VDC | 8 Outputs | 142 x 30 x 130 | 0.3 |
| IC693MDL340 | Isolated Relay Output | 120/240 VAC or 30 VDC | 16 Outputs | 142 x 30 x 130 | 0.3 |
| IC693MDL645 | Isolated DC Input Module | 24 VDC | 16 Inputs | 142 x 30 x 130 | 0.3 |
| IC693MDL930 | Combination I/O Module | 120 VAC Input/Relay | 8 In / 8 Out | 142 x 30 x 130 | 0.3 |
Popular GE Models
| Model Number | Description | Function | Voltage Range | I/O Count | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| IC693CPU374 | High Performance CPU | PLC CPU with Ethernet | N/A | N/A | 142 x 35 x 130 | 0.4 |
| IC693ALG442 | Analog I/O Module | 4 In / 2 Out | 0–10 V / 4–20 mA | 6 | 142 x 30 x 130 | 0.3 |
| IC693CHS397 | 10-slot Baseplate | I/O Baseplate | N/A | N/A | 300 x 50 x 130 | 0.8 |
| IC693PWR321 | Power Supply Module | 120/240 VAC or 125 VDC | N/A | N/A | 142 x 40 x 130 | 0.5 |
| IC693MDL732 | High-Density Input Module | 24 VDC | 32 Inputs | 142 x 30 x 130 | 0.3 | |
| IC693MDL748 | High-Density Output Module | 24 VDC | 32 Outputs | 142 x 30 x 130 | 0.3 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What kind of input devices can be connected to the IC693MDL240?
A1: The module supports standard AC field devices such as pushbuttons, proximity sensors, limit switches, and relay contacts.
Q2: Can this module be used with DC input signals?
A2: No. IC693MDL240 is specifically designed for 120 VAC inputs and is not compatible with DC voltage levels.
Q3: How is the field side electrically isolated from the logic side?
A3: The module uses optical coupling to provide 1500V RMS isolation between field wiring and internal logic.
Q4: What is the purpose of the LED indicators on the front panel?
A4: Each LED provides a visual ON/OFF status of its corresponding input channel, facilitating diagnostics and monitoring.
Q5: Can the IC693MDL240 be installed in any slot?
A5: Yes, it can be placed in any I/O slot of a Series 90-30 5-slot or 10-slot baseplate.
Q6: What is the maximum response time for the input signals?
A6: The On-response time is up to 30 ms, while the Off-response time can reach 45 ms.
Q7: Is there a derating curve for high temperature environments?
A7: Yes, at ambient temperatures above 30°C, fewer than 16 inputs may be active simultaneously due to thermal limitations.
Q8: What color coding identifies this as a high-voltage module?
A8: The left edge of the door insert is colored red to indicate it is a high-voltage AC input module.
