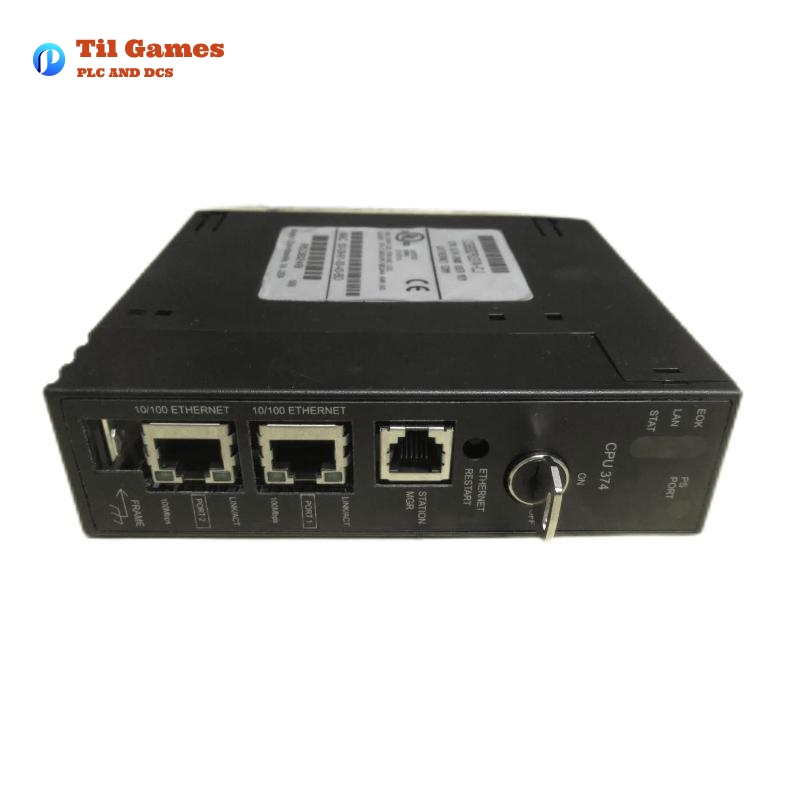

GE IC693CPU374-CJ Series 90-30 Single-Slot CPU Module

GE IC693CPU374-CJ Series 90-30 Single-Slot CPU Module

Manufacturer:GE

Product Number:IC693CPU374-CJ

Product Type:Single-Slot CPU Module

Origin:USA

Dimensions:100 x 38 x 80 mm

Weight:0.5 kg

Views:16

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/IC693CPU374-CJ-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/IC693CPU374-CJ-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/IC693CPU374-CJ-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/IC693CPU374-CJ-3.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Description

The GE IC693CPU374-CJ is a high-performance Single-Slot CPU Module designed for Series 90-30 PLC systems. It features an embedded Ethernet interface, eliminating the need for an additional Ethernet module. This CPU is optimized for industrial automation and control, offering a reliable processing speed of 133 MHz and hardware-based floating-point math.

The IC693CPU374-CJ supports multiple communication protocols, SRTP and Ethernet Global Data (EGD), making it ideal for networked applications. Its expansive user memory of 240KB and configurable register, analog input, and output memory ensure compatibility with various industrial processes.


Product Specifications

Specification Details
Model Number IC693CPU374-CJ
Processor Speed 133 MHz
Processor Type Embedded 586
Typical Scan Rate 0.15 milliseconds per 1K of logic
Memory Storage RAM and Flash
User Memory 240KB (245,760 bytes)
Discrete Input Points (%I) 2,048 (fixed)
Discrete Output Points (%Q) 2,048 (fixed)
Internal Coils (%M) 4,096 bits (fixed)
Register Memory (%R) Configurable (128 to 32,640 words)
Analog Inputs (%AI) Configurable (128 to 32,640 words)
Analog Outputs (%AQ) Configurable (128 to 32,640 words)
Timers/Counters >2,000 (depends on available user memory)
Battery Backup 1.2 months (internal), 15 months (external IC693ACC302)
Ethernet Ports 2 × 10/100 BASE-T/TX (RJ-45)
Operating Temperature 0 to 60°C (32 to 140°F)
Dimensions 100 x 38 x 80 mm
Weight 0.5 kg

Product Features

  • High-Speed Processing – Equipped with a 133 MHz processor, ensuring fast execution of industrial control programs.

  • Embedded Ethernet Interface – Provides dual 10/100 BASE-T/TX ports, eliminating the need for external Ethernet modules.

  • Expanded Memory – Supports configurable memory up to 32,640 words, accommodating complex control applications.

  • Real-Time Processing – Includes hardware-based floating-point math for accurate calculations in industrial environments.

  • Robust Communication Support – Implements SRTP and Ethernet Global Data (EGD) protocols for seamless connectivity.

  • High I/O Capacity – Offers 2,048 discrete inputs and outputs, allowing integration with multiple industrial devices.

  • Powerful Troubleshooting Tools – Includes Sequential Event Recorder (SER) instruction, capturing real-time operational data for diagnostics.


Product Advantages

  • Compact & Space-SavingSingle-slot design allows more modules in the rack compared to multi-slot CPU configurations.

  • High ReliabilityFlash and RAM-based storage ensures secure data retention even during power loss.

  • Scalability – Compatible with up to 8 baseplates (CPU baseplate + 7 expansion or remote baseplates).

  • Flexible Programming – Supports VersaPro, CIMPLICITY Machine Edition Logic Developer, and Control software.

  • Network EfficiencyIntegrated Ethernet switch enables direct network connections without additional hardware.

  • Extended Memory BackupInternal and external battery options allow extended data retention.


Product Applications

  • Industrial Automation – Controls manufacturing processes, conveyor belts, and robotics.

  • Building Automation – Manages HVAC, lighting, and security systems.

  • Energy Sector – Used in power plants and substations for monitoring and control.

  • Transportation – Integrated into railway and traffic control systems.

  • Oil & Gas Industry – Ensures safe operation of drilling rigs and refineries.

  • Water Treatment Plants – Regulates pumps, valves, and chemical dosing systems.


Latest News Titles on IC693CPU374-CJ

  1. “GE Enhances Series 90-30 PLC with High-Speed Ethernet CPU”

  2. “New Features in GE IC693CPU374-CJ for Industrial Automation”

  3. “GE PLC Systems: How the IC693CPU374-CJ Improves Control Efficiency”

  4. “Upgrading Legacy Systems with GE’s Advanced CPU Modules”

  5. “IC693CPU374-CJ: The Best Choice for Reliable Industrial Automation”

  6. “Ethernet-Enabled PLCs: The Future of Smart Manufacturing”


Related Series 90-30 Models

Model Number Processor Speed Memory Capacity Ethernet Interface
IC693CPU350 25 MHz 32K bytes No
IC693CPU351 25 MHz 80K bytes No
IC693CPU352 25 MHz 240K bytes No
IC693CPU360 25 MHz 240K bytes No
IC693CPU363 25 MHz 240K bytes No
IC693CPU364 25 MHz 240K bytes Yes

Popular GE PLC Models

Model Number Processor Type Application
IC695CPU320 RX3i Dual Core CPU High-speed automation
IC695CPU315 RX3i CPU Mid-range applications
IC694PWR321 Power Supply Module Power management
IC693MDL340 Discrete Output Module Digital output control
IC695CPE330 PACSystems CPU Industrial control
IC693CMM321 Ethernet Interface Module Network connectivity
FAQ

Frequently Asked Questions (FAQ)

Q1: What is the main advantage of IC693CPU374-CJ over other Series 90-30 CPUs?
A1: The IC693CPU374-CJ offers an embedded Ethernet interface, eliminating the need for a separate Ethernet module, reducing costs, and saving space.

Q2: Can I expand the memory of the IC693CPU374-CJ?
A2: The CPU has configurable memory allowing user-defined register, analog input, and output memory allocations.

Q3: How many expansion racks can be connected to this CPU?
A3: The IC693CPU374-CJ supports up to 8 baseplates (1 CPU baseplate + 7 expansion or remote baseplates).

Q4: What programming software is compatible with IC693CPU374-CJ?
A4: The CPU supports VersaPro 2.03+, CIMPLICITY Machine Edition Logic Developer 2.60+, and Control software 2.50+.

Q5: Does the IC693CPU374-CJ support floating-point math?
A5: Yes, it has hardware-based floating-point math for efficient numerical processing.

Q6: What power supply is required for IC693CPU374-CJ?
A6: The CPU requires 7.4W of 5VDC power and is recommended for use with high-capacity power supplies.

Q7: How does the built-in Ethernet improve system performance?
A7: The integrated Ethernet switch allows direct communication between devices without relying on the PLC backplane, resulting in faster data transfer.

Q8: Can the IC693CPU374-CJ be used in harsh environments?
A8: Yes, it operates within an ambient temperature range of 0 to 60°C (32 to 140°F), making it suitable for industrial environments.
