Product Introduction

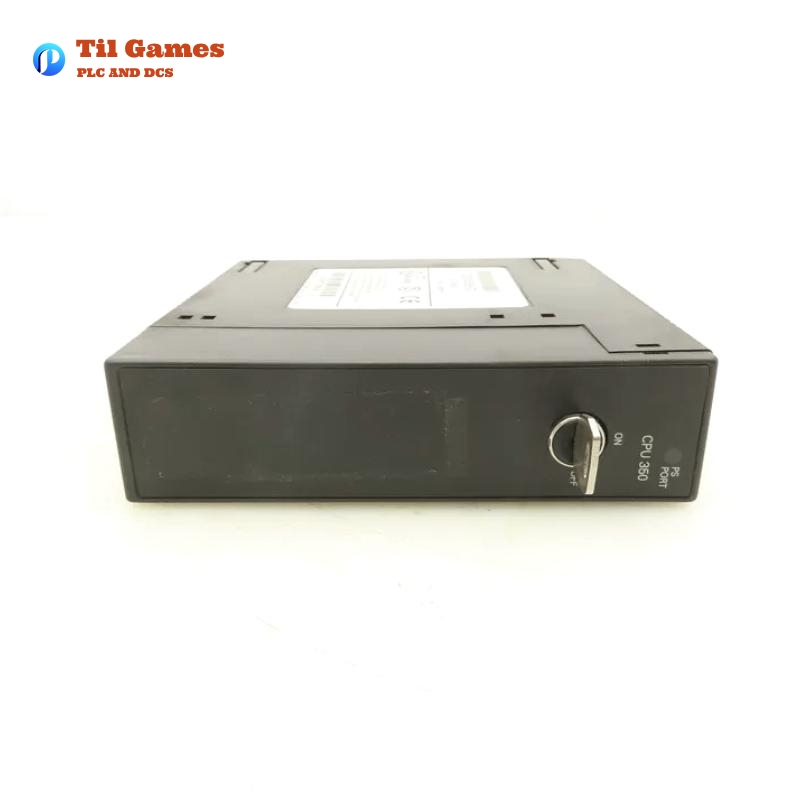

The GE IC693CPU350 is a high-performance CPU module for the Series 90-30 PLC system, designed to provide reliable control and automation in industrial applications. It features a 25 MHz 80386EX processor, 32 KB of user memory, and support for up to 8 racks. The module is compatible with various communication protocols such as Ethernet, Profibus, and Genius Bus, making it an excellent choice for flexible and scalable control solutions.
The IC693CPU350 is widely used in industries such as manufacturing, energy, water treatment, and process automation, where robust control and high-speed processing are required. It supports multiple I/O configurations, real-time processing, and extensive memory capabilities, ensuring seamless operation in demanding environments.
Technical Specifications
The table below summarizes the key technical specifications of the GE IC693CPU350:
| Specification | Details |
|---|---|
| CPU Type | Single-slot CPU module |
| Processor Type | 80386EX |
| Processor Speed | 25 MHz |
| User Program Memory | 32 KB |
| Total Baseplates | 8 (1 CPU baseplate + 7 expansion/remotes) |
| Power Supply Load | 670 mA from +5VDC |
| Typical Scan Rate | 0.22 ms per 1K Boolean logic |
| Discrete Inputs (%I) | 2,048 |
| Discrete Outputs (%Q) | 2,048 |
| Discrete Global Memory (%G) | 1,280 bits |
| Internal Coils (%M) | 4,096 bits |
| Temporary Output Coils (%T) | 256 bits |
| System Status References (%S) | 128 bits |
| Register Memory (%R) | 9,999 words |
| Analog Inputs (%AI) | 2,048 words |
| Analog Outputs (%AQ) | 512 words |
| System Registers (%SR) | 28 words |
| Timers/Counters | >2,000 |
| Floating Point Math | Yes, supported in firmware version 9.0+ |
| Built-in Serial Port | 1 (SNP/SNP-X Slave) |
| Communication Options | Ethernet, FIP, Profibus, Genius Bus, GBC, GCM, GCM+ |
| Battery Backed Clock | Yes |
| Interrupts | Supports periodic subroutine execution |
| Override Function | Yes |
| Memory Storage | RAM and Flash |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Dimensions | 100 x 38 x 80 mm |
| Weight | 0.5 kg |
Key Features
-
High-performance 25 MHz processor for fast execution of control logic.
-
32 KB of user memory for storing large control programs.
-
Supports up to 8 racks, making it highly expandable.
-
Over 2,000 timers/counters, 9,999 register words, and 2,048 analog input words.
-
Multiple communication options, including Ethernet, Profibus, and Genius Bus.
-
Battery-backed real-time clock for accurate time-stamped events.
-
Floating-point math support for complex calculations.
-
RAM and Flash memory storage for enhanced data security.
-
Supports interrupts and periodic subroutine execution.
Advantages
-
Scalability: The module supports multiple baseplates and remote I/O, allowing for large-scale automation applications.
-
Reliability: Battery-backed clock and memory storage ensure continuous operation even in power loss situations.
-
High-Speed Processing: The 80386EX processor enables fast execution times, improving system responsiveness.
-
Extensive Communication Support: Compatible with SNP/SNP-X, Ethernet, Profibus, and Genius Bus, offering seamless integration with different industrial networks.
-
Flexible Memory Configuration: Supports multiple memory types, including discrete, register, analog, and system references.
-
Compact and Lightweight Design: The module’s small size and 0.5 kg weight make it easy to install in tight spaces.
-
Future-Proof Technology: Compatible with firmware updates for continued support and improved performance.
Applications
The IC693CPU350 module is used in various industrial automation applications, including:
-
Manufacturing Automation – Used in production lines for machine control and process monitoring.
-
Energy Management – Applied in power plants for efficient operation of turbines and generators.
-
Water Treatment Plants – Controls pumping stations, filtration systems, and chemical dosing.
-
Oil and Gas Industry – Ensures safe operation of drilling rigs, refineries, and pipeline systems.
-
Automotive Industry – Used in assembly lines, robotic control, and testing stations.
-
Building Automation – Manages HVAC systems, lighting control, and security automation.
Latest Reports on IC693CPU350
Here are the latest industry reports mentioning the IC693CPU350:
-
“GE Series 90-30 PLC Performance Analysis in Industrial Automation (2024)”
-
“Enhancing Factory Automation with GE IC693CPU350 – Case Study (2024)”
-
“Advancements in PLC Technology: The Role of GE IC693CPU350 (2023)”
-
“Industrial Control Systems: Why the IC693CPU350 is Still Relevant (2023)”
-
“Optimizing Energy Systems Using GE IC693CPU350 (2024)”
Recommended Related Models
Here are six related models from the Series 90-30 family:
| Model | Description |
|---|---|
| IC693CPU331 | 80386EX CPU, 16 KB memory, 5 baseplates |
| IC693CPU341 | 10 MHz CPU, 8 KB memory, built-in serial port |
| IC693CPU363 | 32 MHz CPU, 240 KB memory, Ethernet support |
| IC693CPU364 | Advanced CPU with Ethernet and 240 KB memory |
| IC693CPU374 | 133 MHz CPU, high-speed processing, Ethernet |
| IC693CMM311 | Communications module for SNP, CCM, RTU protocols |
Recommended Popular GE Models
Here are six popular GE models across different series:
| Model | Description |
|---|---|
| IC695CPU320 | PACSystems RX3i CPU, 300 MHz processor |
| IC695CPE330 | RX3i CPU, dual-core ARM, advanced networking |
| IC670GBI002 | Genius Bus Interface Module for fieldbus communication |
| IC693MDL340 | 120/240V AC Output Module, 16 points |
| IC693ALG223 | Analog Input Module, 4 channels, high resolution |
| IC200ALG264 | VersaMax Analog Input Module, 15-bit resolution |
FAQ
FAQs (Q&A Format)
Q1: What is the maximum memory capacity of the IC693CPU350?
A1: The IC693CPU350 supports 32 KB of user program memory.
Q2: How many baseplates can the CPU support?
A2: It supports up to 8 baseplates (1 CPU baseplate + 7 expansion/remotes).
Q3: What communication protocols are supported?
A3: The module supports Ethernet, FIP, Profibus, Genius Bus, and SNP/SNP-X.
Q4: What is the typical scan rate of this CPU?
A4: The typical scan rate is 0.22 milliseconds per 1K Boolean logic.
Q5: Does the IC693CPU350 support floating-point math?
A5: Yes, it supports floating-point math in firmware version 9.0 and later.
Q6: What is the weight and size of the IC693CPU350?
A6: It measures 100 x 38 x 80 mm and weighs 0.5 kg.
Q7: Does this module have built-in Ethernet?
A7: No, but Ethernet support is available via an optional communication module.
Q8: Is the IC693CPU350 compatible with older GE PLC systems?
A8: Yes, it is backward-compatible with earlier Series 90-30 systems.
