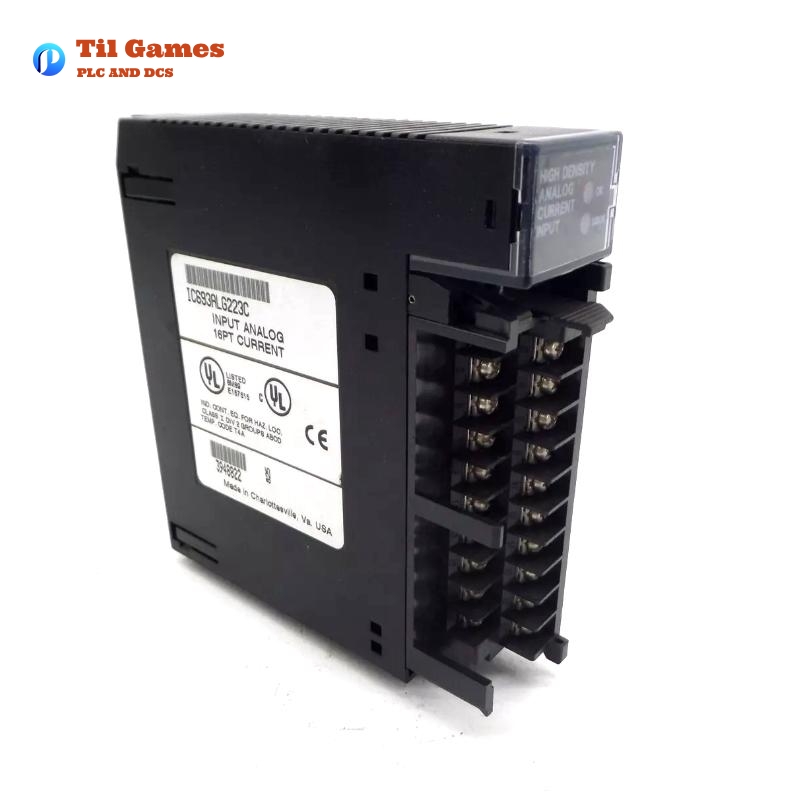

GE IC693ALG223C Series 90-30 PLC Analog Current Input Module

GE IC693ALG223C Series 90-30 PLC Analog Current Input Module

Manufacturer:GE Fanuc

Product Number:IC693ALG223C

Product Type:Analog Current Input Module

Origin:USA

Dimensions:51 x 127 x 127 mm

Weight:0.458 kg

Views:3

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/04/IC693ALG223C-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/IC693ALG223C-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/IC693ALG223C-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/IC693ALG223C-4.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

GE IC693ALG223C Series 90-30 PLC Analog Current Input Module

Product Introduction

The GE IC693ALG223C Series 90-30 PLC Analog Current Input Module is a high-performance module designed for use in industrial automation systems. This module provides 16 single-ended input channels, each configurable to measure a wide range of current inputs. It is ideal for systems requiring precise measurement and control of analog signals in industrial environments.

The module is compatible with GE’s PACSystems RX3i and Series 90-30 PLC systems, offering high accuracy and a variety of configuration options to meet different application needs. The IC693ALG223C allows for continuous monitoring of current inputs, alarm setting, and fault detection, ensuring reliable operation of automated processes.

Product Parameters

Parameter Value
Number of Channels 16 Channels (single-ended)
Input Current Ranges 0 to 20 mA, 4 to 20 mA, 4 to 20 mA Enhanced
Calibration Factory calibrated (4 μA per count on 4-20 mA range)
Update Rate 6 ms
Resolution 4 μA (4-20 mA), 5 μA (0-20 mA and enhanced)
Accuracy ±0.25% at 25°C, ±0.5% over operating temperature
Linearity <1 LSB from 4 to 20 mA, <1 LSB from 100 μA to 20 mA
Input Impedance 250 Ω
Input Low Pass Filter Response 19 Hz
Power Consumption 120 mA (from 5V bus), 65 mA (from 24V supply)
External Supply Voltage 20 to 30 VDC
Dimensions 51 x 127 x 127 mm
Weight 0.458 kg
Isolation 250 VAC continuous, 1500 VAC for 1 minute
Common Mode Voltage 0 V (single-ended channels)

Product Features

  • 16 Channels: The module offers 16 single-ended channels for analog input, allowing for simultaneous monitoring of multiple current signals.

  • Flexible Input Ranges: It supports three different current ranges (0-20 mA, 4-20 mA, and 4-20 mA Enhanced), making it versatile for a variety of applications.

  • Open-Wire Fault Detection: The enhanced 4-20 mA range offers low alarm settings to detect open-wire faults, providing greater system reliability.

  • Status Monitoring: The module reports its status and external power supply status to the CPU, ensuring easy system diagnostics and error identification.

  • High Accuracy and Resolution: The module provides high-resolution measurements with excellent accuracy (±0.25% at 25°C).

  • Alarms and Alerts: Each channel has configurable high and low alarm limits, enabling immediate action in case of out-of-range conditions.

Product Advantages

  • Enhanced Fault Detection: The enhanced 4-20 mA range improves system reliability by enabling open-wire fault detection, ensuring that no critical signal loss goes unnoticed.

  • Improved Performance: With 6 ms update rates and high resolution, the module ensures quick and precise measurements, making it suitable for real-time industrial applications.

  • Easy Integration: Designed to work seamlessly with GE PACSystems RX3i and Series 90-30 systems, the module simplifies installation and integration into existing systems.

  • Long-term Stability: Factory calibration and robust build quality ensure that the module maintains accuracy and reliability over time, even in harsh industrial environments.

Applications

  • Industrial Automation: The module is ideal for industrial control systems where precise current measurements are necessary, such as in process control, manufacturing, and machine automation.

  • SCADA Systems: It can be integrated into SCADA (Supervisory Control and Data Acquisition) systems for monitoring and control of industrial processes.

  • Energy Management: Used in energy management systems to monitor current loops in power generation and distribution setups.

  • Environmental Control Systems: Suitable for environmental control applications, monitoring various parameters such as air quality and water treatment processes.

Related Models

Model Number of Channels Input Range Power Supply
IC693ALG223C 16 4-20 mA, 0-20 mA, Enhanced 24V DC (external)
IC693ALG223 16 0-20 mA, 4-20 mA, Enhanced 24V DC (external)
IC694ALG223 16 4-20 mA, 0-20 mA 24V DC (external)
IC693ALG233 16 0-10V, 1-5V, 4-20 mA 24V DC (external)
IC693ALG243 8 0-10V, 4-20 mA 24V DC (external)
IC694ALG233 16 0-10V, 4-20 mA 24V DC (external)

Popular GE Models

Model Number of Channels Input Range Dimensions Power Supply
IC693PWR330 1 AC Power Supply 51 x 127 x 127 mm 120V AC (external)
IC693CPU351 1 Digital Input/Output 170 x 140 x 130 mm 24V DC (external)
IC693MDL340 16 Digital I/O 51 x 127 x 127 mm 24V DC (external)
IC694TBB030 32 Thermocouple Input 127 x 180 x 120 mm 24V DC (external)
IC693CMM311 1 Communication Module 51 x 127 x 127 mm 24V DC (external)
IC693ALG392 8 Analog Voltage Input 127 x 180 x 120 mm 24V DC (external)
FAQ

FAQ

Q1: How do I configure the GE IC693ALG223C module for use?
A1: The module is configured using GE’s Proficy Machine Edition software. Select the number of channels, set the input ranges, and assign memory locations.

Q2: What is the maximum number of channels that can be used on this module?
A2: The module supports up to 16 single-ended input channels.

Q3: What kind of fault detection does the IC693ALG223C support?
A3: The module supports open-wire fault detection, especially in the 4-20 mA Enhanced range.

Q4: Can I use this module with both Series 90-30 and PACSystems RX3i PLC systems?
A4: Yes, it is compatible with both Series 90-30 and PACSystems RX3i systems.

Q5: How do I handle alarms in the IC693ALG223C module?
A5: Each channel allows setting high and low alarm limits, which can be configured via the software.

Q6: What is the update rate of this module?
A6: The update rate is 6 ms, providing fast response for real-time applications.

Q7: How do I connect the external 24V power supply?
A7: The module requires a user-supplied 24V DC power supply, which connects to the specified terminals on the module.

Q8: Is the GE IC693ALG223C module suitable for hazardous environments?
A8: Yes, it is rated for use in Class I, Division 2 hazardous locations when properly installed.
