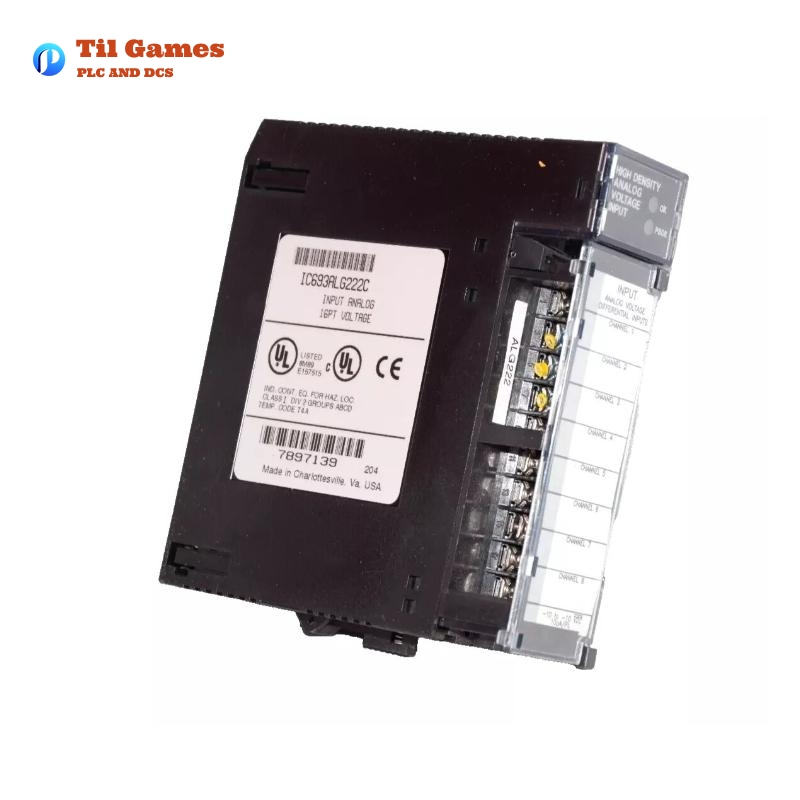

GE IC693ALG222 Analog Current Input Module Overview
The GE IC693ALG222 Analog Voltage Input Module is part of the GE Series 90-30 I/O system. It is designed to convert analog input signals into digital values that can be processed by programmable logic controllers (PLCs). The module supports both single-ended and differential input modes, providing versatile measurement capabilities.
Product Features:
-
16 channels available, with the ability to select between 1 to 16 single-ended channels or 1 to 8 differential channels.
-
Supports two input voltage ranges:
-
0 to +10 V (unipolar)
-
-10 to +10 V (bipolar)
-
-
Factory Calibration: Each input channel is factory-calibrated for two ranges: 2.5 mV per count (unipolar) and 5 mV per count (bipolar).
-
Update Rate:
-
6 ms for all 16 single-ended channels
-
3 ms for all 8 differential channels
-
-
Resolution:
-
2.5 mV for the 0V to +10V range
-
5 mV for the -10V to +10V range
-
-
Power Consumption:
-
112 mA from the backplane +5 VDC
-
41 mA from the Isolated +24 VDC supply
-
Advantages:
-
High Channel Density: Supports up to 16 analog inputs in a single module, minimizing space usage.
-
Configurable Input Ranges: Flexible for different types of analog input signals, making it suitable for various industrial applications.
-
Alarm Features: Configurable high and low alarm limits on all channels.
-
Isolation: 1500 V isolation between field side and logic side, protecting sensitive equipment.
-
Easy Configuration: Can be configured using the Logicmaster 90-30 or the Hand-Held Programmer.
Applications:
-
Industrial Automation: Used in processes requiring high-resolution analog measurements like temperature, pressure, and flow monitoring.
-
Data Acquisition: Ideal for systems where precise analog-to-digital conversion is critical.
-
Monitoring Systems: Utilized in systems that need real-time monitoring of analog signals, such as voltage levels and sensor outputs.
Specifications:
| Parameter | Value |
|---|---|
| Number of Channels | 1 to 16 single-ended, 1 to 8 differential |
| Input Range | 0V to 10V (unipolar), -10V to +10V (bipolar) |
| Resolution | 2.5 mV (unipolar), 5 mV (bipolar) |
| Update Rate | 6 ms (single-ended), 3 ms (differential) |
| Accuracy | ±0.25% full scale at 25°C, ±0.5% over temp range |
| Input Impedance | >500K ohms (single-ended), >1M ohms (differential) |
| Isolation | 1500 V between field and logic sides |
| Power Consumption | 112 mA (5V), 41 mA (24V) |
| Dimensions | 174 x 114 x 39 mm |
| Weight | 0.41 kg |
Related Products:
Here are six related models from the GE 90-30 series that also offer analog input capabilities:
| Model | Description | Number of Channels | Voltage Range | Power Consumption |
|---|---|---|---|---|
| IC693ALG223 | 16-Channel Analog Voltage Input Module | 1 to 16 | 0 to 10 V, -10 to +10 V | 112 mA (5V), 41 mA (24V) |
| IC693ALG431 | 8-Channel Analog Input Module | 1 to 8 | 0 to 10 V | 112 mA (5V), 41 mA (24V) |
| IC693ALG441 | 4-Channel Differential Analog Input Module | 1 to 4 | -10 to +10 V | 112 mA (5V), 41 mA (24V) |
| IC693ALG442 | 8-Channel Differential Input Module | 1 to 8 | 0 to 10 V | 112 mA (5V), 41 mA (24V) |
| IC693ALG444 | 16-Channel Differential Analog Input Module | 1 to 16 | 0 to 10 V | 112 mA (5V), 41 mA (24V) |
| IC693ALG445 | 16-Channel Bipolar Analog Input Module | 1 to 16 | -10V to +10V | 112 mA (5V), 41 mA (24V) |
Popular GE Models:
Here are six popular GE products:
| Model | Description | Power Consumption | Channels | Range |
|---|---|---|---|---|
| IC693ALG223 | 16-Channel Analog Input Module | 112 mA (5V), 41 mA (24V) | 16 | 0 to 10 V, -10 to +10 V |
| IC693ALG431 | 8-Channel Analog Input Module | 112 mA (5V), 41 mA (24V) | 8 | 0 to 10 V |
| IC693ALG441 | 4-Channel Differential Input Module | 112 mA (5V), 41 mA (24V) | 4 | -10 to +10 V |
| IC693ALG442 | 8-Channel Differential Input Module | 112 mA (5V), 41 mA (24V) | 8 | 0 to 10 V |
| IC693ALG444 | 16-Channel Differential Analog Input Module | 112 mA (5V), 41 mA (24V) | 16 | 0 to 10 V |
| IC693ALG445 | 16-Channel Bipolar Analog Input Module | 112 mA (5V), 41 mA (24V) | 16 | -10V to +10V |
FAQ
FAQ (Frequently Asked Questions)
-
What is the voltage range of the IC693ALG222 module?
-
The module supports two voltage ranges: 0 to +10V (unipolar) and -10V to +10V (bipolar).
-
-
How many channels does the IC693ALG222 module support?
-
The module supports up to 16 single-ended channels or 8 differential channels.
-
-
What is the resolution of the IC693ALG222?
-
The resolution is 2.5 mV per count in unipolar mode and 5 mV per count in bipolar mode.
-
-
What is the update rate of the module?
-
The update rate is 6 ms for all 16 single-ended channels and 3 ms for all 8 differential channels.
-
-
What is the isolation level of the IC693ALG222 module?
-
The module provides 1500 V isolation between the field side and the logic side.
-
-
Can I configure the IC693ALG222 for differential input mode?
-
Yes, the module can be configured for differential input mode for up to 8 channels.
-
-
What is the power consumption of the IC693ALG222 module?
-
The module consumes a maximum of 112 mA from the 5V bus and 41 mA from the Isolated 24V DC supply.
-
-
What are the dimensions and weight of the IC693ALG222 module?
-
The module measures 174 x 114 x 39 mm and weighs 0.41 kg.
-
